chainfix chainfix strain relief elements | Honeycomb strain relief chainfix strain relief elements | Honeycomb strain relief chainfix
CFU.V Honeycomb strain relief | Product range CFU.V Honeycomb strain relief | Assembly instruction | Design

1 2
CFU.V strain relief with innovative honeycomb design for
fast assembly and high holding force.
● 80% faster filling (compared to CFX strain relief), openable
from both sides for assembly in seconds
● Flexible honeycomb design for increased holding force
● Tribologically optimised honeycomb design for the best hold
● Different cables with diameters from 2mm to 17mm can be
strain-relieved without problems

● Cables can be replaced easily
● Easy positioning of cables
● CFU.V cannot be attached to mounting bracket, but has to
be installed beforehand on-site

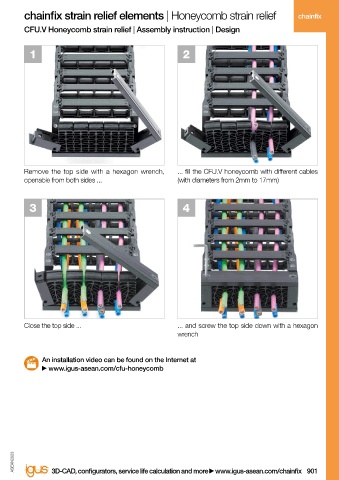

Remove the top side with a hexagon wrench, ... fill the CFU.V honeycomb with different cables
openable from both sides ... (with diameters from 2mm to 17mm)
CFU.V | Honeycomb strain relief | Product range For the following
igus series
®
Part No.CFU.V BiBi Height For E2.1 3 4
[mm] [mm] series E2.48
CFU.V.64.40.100.25.01 100 62 See table on the right E2/000
CFU.V.64.40.125.25.01 125 62 See table on the right ● 3400/3500/3450/3480
CFU.V.64.40.150.25.01 150 62 See table on the right R2.1
CFU.V.64.40.175.25.01 175 62 See table on the right ● R2.48
CFU.V.64.40.200.25.01 200 62 See table on the right E2 R100
CFU.V.64.40.225.25.01 225 62 See table on the right ● 167/68
CFU.V.64.40.250.25.01 250 62 See table on the right E2 R
CFU.V.64.40.275.25.01 275 62 See table on the right ● R68
CFU.V.64.40.300.25.01 300 62 See table on the right E4.1L
CFU.V.64.40.325.25.01 325 62 See table on the right ● E4.48L/R4.48L
CFU.V.64.40.350.25.01 350 62 See table on the right E4.1
CFU.V.64.40.375.25.01 375 62 See table on the right ● E4.42/H4.42/R4.42
CFU.V.64.40.400.25.01 400 62 See table on the right E6.1 Close the top side ... ... and screw the top side down with a hexagon
● E61.52* wrench
E6
● E6.52/R6.52*
*Available upon request. An installation video can be found on the Internet at
Delivery time upon request.
www.igus-asean.com/cfu-honeycomb

Installation note: 80% faster (compared to CFX strain relief) for different cable types in different chambers, fully flexible, with strong
holding force and easy assembly.
