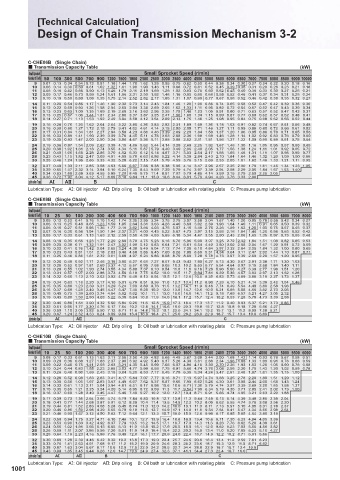

[Technical Calculation]
Design of Chain Transmission Mechanism 3-2

C-CHE06B (Single Chain)
Ӎ Transmission Capacity Table (kW)
Small Sprocket Small Sprocket Speed (r/min)
Number of Teeth 50 100 300 500 700 900 1200 1500 1800 2100 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 8000 8500 9000 10000
9 0.07 0.13 0.34 0.54 0.72 0.91 1.18 1.44 1.70 1.62 1.25 0.95 0.75 0.62 0.52 0.44 0.38 0.34 0.30 0.27 0.24 0.22 0.20 0.18 0.16
10 0.08 0.14 0.38 0.60 0.81 1.02 1.32 1.61 1.90 1.90 1.46 1.11 0.88 0.72 0.61 0.52 0.45 0.39 0.35 0.31 0.28 0.26 0.23 0.21 0.18
11 0.08 0.16 0.42 0.66 0.90 1.13 1.46 1.79 2.11 2.19 1.69 1.28 1.02 0.83 0.70 0.60 0.52 0.45 0.40 0.36 0.33 0.30 0.27 0.25 0.21
12 0.09 0.17 0.46 0.73 0.99 1.24 1.61 1.96 2.31 2.50 1.92 1.46 1.16 0.95 0.80 0.68 0.59 0.52 0.46 0.41 0.37 0.34 0.31 0.28 0.24
13 0.10 0.19 0.50 0.80 1.08 1.35 1.75 2.14 2.52 2.82 2.17 1.65 1.31 1.07 0.90 0.77 0.67 0.58 0.52 0.46 0.42 0.38 0.35 0.32 0.27
14 0.11 0.20 0.54 0.86 1.17 1.46 1.90 2.32 2.73 3.14 2.43 1.84 1.46 1.20 1.00 0.86 0.74 0.65 0.58 0.52 0.47 0.42 0.39 0.36 0.30
15 0.12 0.22 0.59 0.93 1.26 1.58 2.04 2.50 2.94 3.38 2.69 2.05 1.62 1.33 1.11 0.95 0.82 0.72 0.64 0.57 0.52 0.47 0.43 0.39 0.34
16 0.13 0.23 0.63 1.00 1.35 1.69 2.19 2.68 3.16 3.63 2.96 2.25 1.79 1.46 1.23 1.05 0.91 0.80 0.71 0.63 0.57 0.52 0.47 0.43 0.37
17 0.13 0.25 0.67 1.06 1.44 1.81 2.34 2.86 3.37 3.87 3.25 2.47 1.96 1.60 1.34 1.15 0.99 0.87 0.77 0.69 0.62 0.57 0.52 0.48 0.41
18 0.14 0.27 0.71 1.13 1.53 1.92 2.49 3.04 3.58 4.12 3.54 2.69 2.13 1.75 1.46 1.25 1.08 0.95 0.84 0.75 0.68 0.62 0.56 0.52 0.44
19 0.15 0.28 0.76 1.20 1.62 2.04 2.64 3.22 3.80 4.36 3.83 2.92 2.31 1.89 1.59 1.36 1.18 1.03 0.91 0.82 0.74 0.67 0.61 0.56 0.48
20 0.16 0.30 0.80 1.27 1.72 2.15 2.79 3.41 4.02 4.61 4.14 3.15 2.50 2.05 1.71 1.46 1.27 1.11 0.99 0.88 0.80 0.72 0.66 0.61 0.52
21 0.17 0.31 0.84 1.34 1.81 2.27 2.94 3.59 4.23 4.86 4.46 3.39 2.69 2.20 1.84 1.58 1.37 1.20 1.06 0.95 0.86 0.78 0.71 0.65 0.56
22 0.18 0.33 0.89 1.41 1.90 2.39 3.09 3.78 4.45 5.11 4.78 3.63 2.88 2.36 1.98 1.69 1.46 1.28 1.14 1.02 0.92 0.83 0.76 0.70 0.60
23 0.19 0.35 0.93 1.47 2.00 2.50 3.24 3.96 4.67 5.36 5.11 3.88 3.08 2.52 2.11 1.81 1.56 1.37 1.22 1.09 0.98 0.89 0.81 0.75 0.64
24 0.19 0.36 0.97 1.54 2.09 2.62 3.39 4.15 4.89 5.62 5.44 4.14 3.29 2.69 2.25 1.92 1.67 1.46 1.30 1.16 1.05 0.95 0.87 0.80 0.68
25 0.20 0.38 1.02 1.61 2.18 2.74 3.55 4.34 5.11 5.87 5.79 4.40 3.49 2.86 2.40 2.05 1.77 1.56 1.38 1.24 1.11 1.01 0.92 0.85 0.72
26 0.21 0.40 1.06 1.68 2.28 2.86 3.70 4.52 5.33 6.12 6.14 4.67 3.71 3.03 2.54 2.17 1.88 1.65 1.46 1.31 1.18 1.07 0.98 0.90 0.77
28 0.23 0.43 1.15 1.82 2.47 3.09 4.01 4.90 5.78 6.63 6.86 5.22 4.14 3.39 2.84 2.43 2.10 1.84 1.64 1.46 1.32 1.20 1.09 1.00 0.86
30 0.25 0.46 1.24 1.96 2.66 3.33 4.32 5.28 6.22 7.15 7.61 5.79 4.59 3.76 3.15 2.69 2.33 2.05 1.81 1.62 1.46 1.33 1.21 1.11 0.95
32 0.27 0.49 1.33 2.11 2.85 3.58 4.63 5.66 6.67 7.66 8.38 6.38 5.06 4.14 3.47 2.96 2.57 2.25 2.00 1.79 1.61 1.46 1.34 1.23 1.05
35 0.29 0.55 1.47 2.32 3.14 3.94 5.10 6.24 7.35 8.44 9.59 7.29 5.79 4.74 3.97 3.39 2.94 2.58 2.29 2.05 1.84 1.67 1.53 1.40
40 0.34 0.63 1.69 2.68 3.63 4.55 5.89 7.20 8.49 9.75 11.4 8.91 7.07 5.79 4.85 4.14 3.59 3.15 2.79 2.50 2.25 2.05
45 0.38 0.72 1.92 3.04 4.12 5.17 6.69 8.18 9.64 11.1 13.0 10.6 8.44 6.91 5.79 4.94 4.28 3.76 3.33 2.98
Lubrication Type A ᶗ A ᶘ B C
Lubrication Type: A ᶗ : Oil injector A ᶘ : Drip oiling B: Oil bath or lubrication with rotating plate C: Pressure pump lubrication
C-CHE08B (Single Chain)
Ӎ Transmission Capacity Table (kW)
Small Sprocket Small Sprocket Speed (r/min)
Number of Teeth 10 25 50 100 200 300 400 500 700 900 1000 1200 1400 1600 1800 2100 2400 2700 3000 3500 4000 5000 6000 7000 8000
9 0.05 0.12 0.22 0.41 0.76 1.10 1.42 1.74 2.35 2.95 3.24 3.75 3.75 3.07 2.58 2.04 1.67 1.40 1.20 0.95 0.78 0.56 0.42 0.34 0.27
10 0.06 0.13 0.25 0.46 0.85 1.23 1.59 1.95 2.64 3.31 3.63 4.28 4.40 3.60 3.02 2.39 1.96 1.64 1.40 1.11 0.91 0.65 0.50 0.39 0.32
11 0.06 0.15 0.27 0.51 0.95 1.36 1.77 2.16 2.92 3.66 4.03 4.75 5.07 4.15 3.48 2.76 2.26 1.89 1.62 1.28 1.05 0.75 0.57 0.45 0.37
12 0.07 0.16 0.30 0.56 1.04 1.50 1.94 2.37 3.21 4.03 4.43 5.22 5.67 4.73 3.97 3.15 2.58 2.16 1.84 1.46 1.20 0.86 0.65 0.52 0.42
13 0.08 0.17 0.33 0.61 1.13 1.63 2.12 2.59 3.50 4.39 4.83 5.69 6.18 5.34 4.47 3.55 2.90 2.43 2.08 1.65 1.35 0.97 0.73 0.58 0.48
14 0.08 0.19 0.35 0.66 1.23 1.77 2.29 2.80 3.79 4.75 5.23 6.16 6.70 5.96 5.00 3.97 3.25 2.72 2.32 1.84 1.51 1.08 0.82 0.65 0.53
15 0.09 0.20 0.38 0.71 1.32 1.91 2.47 3.02 4.09 5.12 5.63 6.64 7.21 6.61 5.54 4.40 3.60 3.02 2.58 2.04 1.67 1.20 0.91 0.72 0.59
16 0.10 0.22 0.41 0.76 1.42 2.04 2.65 3.24 4.38 5.49 6.04 7.12 7.74 7.28 6.10 4.84 3.97 3.32 2.84 2.25 1.84 1.32 1.00 0.80 0.65
17 0.10 0.23 0.43 0.81 1.51 2.18 2.83 3.46 4.68 5.86 6.45 7.60 8.26 7.98 6.69 5.31 4.34 3.64 3.11 2.47 2.02 1.44 1.10 0.87 0.71
18 0.11 0.25 0.46 0.86 1.61 2.32 3.01 3.68 4.97 6.24 6.86 8.08 8.79 8.69 7.28 5.78 4.73 3.97 3.39 2.69 2.20 1.57 1.20 0.95
19 0.12 0.26 0.49 0.92 1.71 2.46 3.19 3.90 5.27 6.61 7.27 8.57 9.43 9.43 7.90 6.27 5.13 4.30 3.67 2.91 2.38 1.71 1.30 1.03
20 0.12 0.28 0.52 0.97 1.81 2.60 3.37 4.12 5.57 6.99 7.68 9.05 10.2 10.2 8.53 6.77 5.54 4.64 3.97 3.15 2.58 1.84 1.40 1.11
21 0.13 0.29 0.55 1.02 1.90 2.74 3.55 4.34 5.88 7.37 8.10 9.54 11.0 11.0 9.18 7.28 5.96 5.00 4.27 3.39 2.77 1.98 1.51 1.20
22 0.13 0.31 0.57 1.07 2.00 2.88 3.73 4.56 6.18 7.75 8.52 10.0 11.5 11.7 9.84 7.81 6.39 5.36 4.57 3.63 2.97 2.13 1.62 1.28
23 0.14 0.32 0.60 1.13 2.10 3.02 3.92 4.79 6.48 8.13 8.94 10.5 12.1 12.6 10.5 8.35 6.83 5.73 4.89 3.88 3.18 2.27 1.73 1.37
24 0.15 0.34 0.63 1.18 2.20 3.17 4.10 5.01 6.79 8.51 9.36 11.0 12.7 13.4 11.2 8.90 7.28 6.10 5.21 4.14 3.39 2.42 1.84 1.46
25 0.15 0.35 0.66 1.23 2.30 3.31 4.29 5.24 7.09 8.89 9.78 11.5 13.2 14.1 11.9 9.46 7.74 6.49 5.54 4.40 3.60 2.58 1.96
26 0.16 0.37 0.69 1.28 2.40 3.45 4.47 5.47 7.40 9.28 10.2 12.0 13.8 14.7 12.6 10.0 8.21 6.88 5.88 4.66 3.82 2.73 2.08
28 0.18 0.40 0.75 1.39 2.60 3.74 4.84 5.92 8.02 10.1 11.1 13.0 15.0 16.0 14.1 11.2 9.18 7.69 6.57 5.21 4.27 3.05 2.32
30 0.19 0.43 0.80 1.50 2.80 4.03 5.22 6.38 8.64 10.8 11.9 14.0 16.1 17.2 15.7 12.4 10.2 8.53 7.28 5.78 4.73 3.39 2.58
32 0.20 0.46 0.86 1.61 3.00 4.32 5.60 6.84 9.26 11.6 12.8 15.0 17.3 18.4 17.3 13.7 11.2 9.40 8.03 6.37 5.21 3.73 0.86
35 0.22 0.51 0.95 1.77 3.30 4.76 6.17 7.54 10.2 12.8 14.1 16.6 19.0 20.3 19.8 15.7 12.8 10.8 9.18 7.28 5.96 4.27
40 0.26 0.59 1.10 2.05 3.82 5.50 7.12 8.71 11.8 14.8 16.2 19.1 22.0 24.1 24.1 19.2 15.7 13.1 11.2 8.90 7.28 5.21
45 0.29 0.67 1.24 2.32 4.33 6.24 8.09 9.89 13.4 16.8 18.4 21.7 25.0 28.2 28.8 22.9 18.7 15.7 13.4 10.6 8.69
Lubrication Type A ᶗ A ᶘ B C
Lubrication Type: A ᶗ : Oil injector A ᶘ : Drip oiling B: Oil bath or lubrication with rotating plate C: Pressure pump lubrication
C-CHE10B (Single Chain)
Ӎ Transmission Capacity Table (kW)
Small Sprocket Small Sprocket Speed (r/min)
Number of Teeth 10 25 50 100 200 300 400 500 700 900 1000 1200 1400 1600 1800 2100 2400 2700 3000 3500 4000 4500 5000 5500 6000
9 0.08 0.17 0.33 0.61 1.13 1.63 2.11 2.58 3.50 4.39 4.82 5.66 4.49 3.67 3.08 2.44 2.00 1.68 1.43 1.14 0.93 0.78 0.67 0.58 0.51
10 0.09 0.20 0.36 0.68 1.27 1.83 2.37 2.90 3.92 4.92 5.40 6.37 5.26 4.30 3.61 2.86 2.34 1.96 1.68 1.33 1.09 0.91 0.78 0.68 0.59
11 0.09 0.22 0.40 0.75 1.41 2.03 2.63 3.21 4.35 5.45 5.99 7.06 6.07 4.96 4.16 3.30 2.70 2.26 1.93 1.53 1.26 1.05 0.90 0.78 0.68
12 0.10 0.24 0.44 0.83 1.55 2.23 2.88 3.53 4.77 5.99 6.58 7.75 6.91 5.66 4.74 3.76 3.08 2.58 2.20 1.75 1.43 1.20 1.02 0.89 0.78
13 0.11 0.26 0.48 0.90 1.69 2.43 3.15 3.84 5.20 6.53 7.17 8.45 7.79 6.38 5.34 4.24 3.47 2.91 2.48 1.97 1.61 1.35 1.15 1.00
14 0.12 0.28 0.52 0.98 1.83 2.63 3.41 4.17 5.64 7.07 7.77 9.16 8.71 7.13 5.97 4.74 3.88 3.25 2.78 2.20 1.80 1.51 1.29 1.12
15 0.13 0.30 0.56 1.05 1.97 2.83 3.67 4.49 6.07 7.62 8.37 9.87 9.66 7.90 6.62 5.26 4.30 3.61 3.08 2.44 2.00 1.68 1.43 1.24
16 0.14 0.32 0.61 1.13 2.11 3.04 3.94 4.81 6.51 8.17 8.98 10.6 10.6 8.71 7.30 5.79 4.74 3.97 3.39 2.69 2.20 1.85 1.58 1.37
17 0.15 0.35 0.65 1.21 2.25 3.24 4.20 5.14 6.95 8.72 9.59 11.3 11.7 9.54 7.99 6.34 5.19 4.35 3.71 2.95 2.41 2.02 1.73 1.50
18 0.16 0.37 0.69 1.28 2.40 3.45 4.47 5.46 7.40 9.27 10.2 12.0 12.7 10.4 8.71 6.91 5.66 4.74 4.05 3.21 2.63 2.20 1.88
19 0.17 0.39 0.73 1.36 2.54 3.66 4.74 5.79 7.84 9.83 10.8 12.7 13.8 11.3 9.44 7.49 6.13 5.14 4.39 3.48 2.85 2.39 2.04
20 0.18 0.41 0.77 1.44 2.68 3.87 5.01 6.12 8.29 10.4 11.4 13.5 14.9 12.2 10.2 8.09 6.62 5.55 4.74 3.76 3.08 2.58 2.20
21 0.19 0.44 0.81 1.52 2.83 4.08 5.28 6.45 8.74 11.0 12.0 14.2 16.0 13.1 11.0 8.71 7.13 5.97 5.10 4.05 3.31 2.78 2.37
22 0.20 0.46 0.85 1.59 2.98 4.29 5.55 6.79 9.19 11.5 12.7 14.9 17.1 14.0 11.8 9.34 7.64 6.41 5.47 4.34 3.55 2.98 2.54
23 0.21 0.48 0.90 1.67 3.12 4.50 5.82 7.12 9.64 12.1 13.3 15.7 18.0 15.0 12.6 9.98 8.17 6.85 5.85 4.64 3.80 3.18
24 0.22 0.50 0.94 1.75 3.27 4.71 6.10 7.46 10.1 12.7 13.9 16.4 18.8 16.0 13.4 10.6 8.71 7.30 6.23 4.94 4.05 3.39
25 0.23 0.53 0.98 1.83 3.42 4.92 6.37 7.79 10.5 13.2 14.5 17.1 19.7 17.0 14.3 11.3 9.26 7.76 6.62 5.26 4.30 3.61
26 0.24 0.55 1.02 1.91 3.56 5.13 6.65 8.13 11.0 13.8 15.2 17.9 20.5 18.0 15.1 12.0 9.82 8.23 7.03 5.58 4.56 3.82
28 0.26 0.59 1.11 2.07 3.86 5.56 7.20 8.81 11.9 14.9 16.4 19.4 22.2 20.2 16.9 13.4 11.0 9.20 7.85 6.23 5.10 4.27
30 0.28 0.64 1.19 2.23 4.16 5.99 7.76 9.49 12.8 16.1 17.7 20.9 24.0 22.4 18.7 14.9 12.2 10.2 8.71 6.91 5.66
32 0.30 0.69 1.28 2.39 4.46 6.42 8.32 10.2 13.8 17.3 19.0 22.4 25.7 24.6 20.6 16.4 13.4 11.2 9.59 7.61 6.23
35 0.33 0.76 1.41 2.63 4.91 7.08 9.17 11.2 15.2 19.0 20.9 24.6 28.3 28.2 23.6 18.7 15.3 12.9 11.0 8.71 6.92
40 0.38 0.87 1.63 3.04 5.67 8.17 10.6 12.9 17.5 22.0 24.2 28.5 32.7 34.4 28.8 22.9 18.7 15.7 13.4 10.6
45 0.43 0.99 1.85 3.45 6.44 9.28 12.0 14.7 19.9 24.9 27.4 32.3 37.1 41.1 34.4 27.3 22.4 18.7 16.0
Lubrication Type A ᶗ A ᶘ B C
Lubrication Type: A ᶗ : Oil injector A ᶘ : Drip oiling B: Oil bath or lubrication with rotating plate C: Pressure pump lubrication
