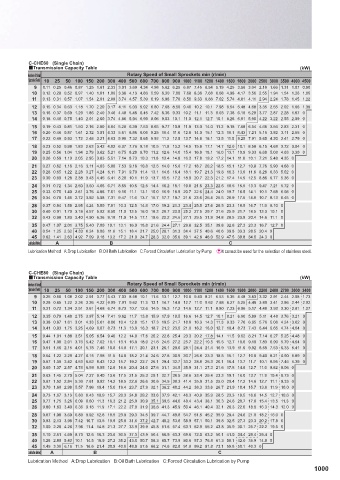

C-CHE60 (Single Chain)
ӍTransmission Capacity Table (kW)
Number of Small Rotary Speed of Small Sprockets min (r/min)
Sprocket Teeth 10 25 50 100 150 200 300 400 500 600 700 800 900 1000 1100 1200 1400 1600 1800 2000 2500 3000 3500 4000 4500
9 0.11 0.25 0.46 0.87 1.25 1.61 2.33 3.01 3.69 4.34 4.98 5.62 6.25 6.87 7.45 6.54 5.19 4.25 3.56 3.04 2.18 1.66 1.31 1.07 0.90
10 0.12 0.28 0.52 0.97 1.40 1.81 1.86 3.38 4.13 4.86 5.59 6.30 7.00 7.68 8.36 7.68 6.08 4.98 4.17 3.56 2.55 1.94 1.54 1.26 1.05
11 0.13 0.31 0.57 1.07 1.54 2.01 2.89 3.74 4.57 5.39 6.19 6.98 7.76 8.50 9.33 8.88 7.02 5.74 4.81 4.11 2.94 2.24 1.78 1.45 1.22
12 0.15 0.34 0.63 1.18 1.70 2.20 3.17 4.11 5.03 5.92 6.80 7.68 8.50 9.40 10.2 10.1 7.98 6.54 5.48 4.68 3.35 2.55 2.02 1.66 1.39
13 0.16 0.37 0.69 1.29 1.86 2.40 3.46 4.48 5.48 6.45 7.42 8.36 9.33 10.2 11.1 11.3 9.03 7.38 6.18 5.28 3.77 2.87 2.28 1.87 0
14 0.18 0.40 0.75 1.40 2.01 2.60 3.74 4.86 5.94 6.99 8.06 9.03 10.1 11.0 12.1 12.7 10.1 8.28 6.91 5.90 4.22 3.22 2.55 2.09 0
15 0.19 0.43 0.81 1.50 2.16 2.80 4.04 5.28 6.39 7.53 8.65 9.77 10.8 11.9 13.0 14.0 11.2 9.18 7.68 6.54 4.68 3.56 2.83 2.31 0
16 0.20 0.46 0.87 1.61 2.32 3.01 4.33 5.61 6.86 8.06 9.25 10.4 11.6 12.8 14.0 15.1 12.3 10.1 8.43 7.21 5.15 3.92 3.11 2.55 0
17 0.22 0.49 0.93 1.72 2.48 3.21 4.63 5.99 7.32 8.65 9.92 11.2 12.5 13.7 14.8 16.1 13.5 11.0 9.25 7.91 5.65 4.30 3.41 2.79 0
18 0.23 0.52 0.98 1.83 2.63 3.42 4.92 6.37 7.76 9.18 10.5 11.9 13.2 14.5 15.8 17.1 14.7 12.0 10.1 8.58 6.15 4.68 3.72 3.04 0
19 0.25 0.56 1.04 1.94 2.79 3.62 5.21 6.75 8.28 9.70 11.2 12.6 14.0 15.4 16.8 18.1 16.0 13.1 10.9 9.33 6.68 5.08 4.03 3.30 0
20 0.26 0.59 1.10 2.05 2.95 3.83 5.51 7.14 8.73 10.3 11.8 13.4 14.8 16.3 17.8 19.2 17.2 14.1 11.8 10.1 7.21 5.48 4.35 0
21 0.27 0.62 1.16 2.16 3.11 4.03 5.80 7.53 9.18 10.8 12.5 14.0 15.6 17.2 18.7 20.2 18.5 15.1 12.7 10.8 7.76 5.90 4.68 0
22 0.28 0.65 1.22 2.28 3.27 4.24 6.11 7.91 9.70 11.4 13.1 14.8 16.4 18.1 19.7 21.3 19.8 16.3 13.6 11.6 8.28 6.33 5.02 0
23 0.30 0.69 1.28 2.38 3.43 4.45 6.41 8.28 10.1 11.9 13.7 15.5 17.2 18.9 20.7 22.3 21.2 17.4 14.5 12.5 8.88 6.77 5.36 0
24 0.31 0.72 1.34 2.50 3.60 4.66 6.71 8.65 10.6 12.5 14.4 16.2 18.1 19.8 21.6 23.3 22.6 18.5 15.5 13.3 9.47 7.21 5.72 0
25 0.33 0.75 1.40 2.61 3.76 4.86 7.01 9.10 11.1 13.1 15.0 16.9 18.9 20.7 22.6 24.4 24.0 19.7 16.5 14.1 10.1 7.68 6.08 0
26 0.34 0.78 1.45 2.72 3.92 5.08 7.31 9.47 11.6 13.7 15.7 17.7 19.7 21.6 23.6 25.4 25.5 20.9 17.5 14.9 10.7 8.13 6.45 0
28 0.37 0.84 1.58 2.95 4.24 5.50 7.91 10.3 12.5 14.8 17.0 19.2 21.3 23.4 25.5 27.6 28.5 23.3 19.5 16.7 11.9 9.10 0
30 0.40 0.91 1.70 3.18 4.57 5.92 8.50 11.0 13.5 16.0 18.3 20.7 23.0 25.2 27.5 29.7 31.6 25.9 21.7 18.5 13.3 10.1 0
32 0.43 0.98 1.83 3.40 4.90 6.36 9.18 11.9 14.5 17.1 19.6 22.2 24.6 27.1 29.5 31.9 34.8 28.5 23.9 20.4 14.6 11.1 0
35 0.47 1.07 2.01 3.75 5.40 7.00 10.1 13.1 16.0 18.8 21.6 24.4 27.1 29.8 32.5 35.1 39.8 32.6 27.3 23.3 16.7 12.7 0
40 0.54 1.25 2.32 4.33 6.24 8.06 11.6 15.1 18.4 21.7 25.0 28.1 31.3 34.4 37.5 40.6 46.6 39.8 33.3 28.5 20.4 0
45 0.62 1.41 2.63 4.92 7.09 9.18 13.2 17.2 21.0 24.7 28.3 32.0 35.6 39.1 42.6 46.0 52.9 47.5 39.8 34.0 24.3 0
Lubrication Method A B C
Lubrication Method A:Drop Lubrication B:Oil Bath Lubrication C:Forced Circulation Lubrication by Pump & It cannot be used for the selection of stainless steel.

C-CHE80 (Single Chain)
ӍTransmission Capacity Table (kW)
Number of Small Rotary Speed of Small Sprockets min (r/min)
Sprocket Teeth 10 25 50 100 150 200 300 400 500 600 700 800 900 1000 1100 1200 1400 1600 1800 2000 2200 2400 2700 3000 3400
9 0.25 0.58 1.08 2.02 2.91 3.77 5.43 7.03 8.58 10.1 11.6 13.1 12.7 10.8 9.40 8.21 6.53 5.35 4.48 3.83 3.32 2.91 2.44 2.08 1.73
10 0.28 0.65 1.22 2.26 3.26 4.22 6.09 7.91 9.62 11.3 13.1 14.7 14.8 12.7 11.0 9.62 7.68 6.27 5.25 4.48 3.89 3.41 2.86 2.44 2.02
11 0.31 0.72 1.34 2.51 3.61 4.68 6.74 8.73 10.7 12.6 14.5 16.3 17.2 14.6 12.7 11.1 8.80 7.23 6.06 5.17 4.48 3.93 3.30 2.81 1.27
12 0.35 0.79 1.48 2.75 3.97 5.14 7.41 9.62 11.7 13.8 15.9 17.9 19.5 16.6 14.5 12.7 10.1 8.21 6.90 5.89 5.11 4.48 3.76 3.21 0
13 0.38 0.87 1.61 3.01 4.33 5.61 8.06 10.4 12.8 15.1 17.3 19.5 21.7 18.8 16.3 14.3 11.3 9.33 7.76 6.65 5.76 5.06 4.24 3.62 0
14 0.41 0.93 1.75 3.25 4.69 6.07 8.73 11.3 13.9 16.3 18.7 21.2 23.5 21.0 18.2 16.0 12.7 10.4 8.73 7.43 6.44 5.65 4.74 4.04 0
15 0.44 1.01 1.88 3.51 5.05 6.54 9.40 12.2 14.9 17.6 20.2 22.8 25.4 23.3 20.2 17.8 14.1 11.5 9.62 8.21 7.14 6.27 5.25 4.48 0
16 0.47 1.08 2.01 3.76 5.42 7.02 10.1 13.1 16.0 18.9 21.6 24.5 27.2 25.7 22.2 19.5 15.5 12.7 10.6 9.10 7.83 6.90 5.79 4.94 0
17 0.51 1.16 2.15 4.01 5.78 7.46 10.8 14.0 17.1 20.1 23.1 26.1 29.0 28.1 24.4 21.4 16.9 13.9 11.6 9.92 8.58 7.53 6.33 5.41 0
18 0.54 1.22 2.29 4.27 6.15 7.98 11.5 14.8 18.2 21.4 24.6 27.8 30.9 30.7 26.6 23.3 18.5 15.1 12.7 10.8 9.40 8.21 6.90 5.89 0
19 0.57 1.30 2.42 4.53 6.52 8.43 12.2 15.7 19.2 22.7 26.1 29.4 32.7 33.2 28.8 25.3 20.1 16.4 13.7 11.7 10.1 8.95 7.46 6.39 0
20 0.60 1.37 2.57 4.78 6.89 8.95 12.8 16.6 20.4 24.0 27.6 31.1 34.5 35.9 31.1 27.3 21.6 17.8 14.8 12.7 11.0 9.62 8.06 0
21 0.63 1.45 2.70 5.04 7.27 9.40 13.6 17.5 21.5 25.3 29.1 32.7 36.5 38.6 33.4 29.4 23.3 19.1 16.0 13.7 11.9 10.4 8.73 0
22 0.67 1.52 2.84 5.30 7.61 9.92 14.2 18.5 22.6 26.6 30.6 34.5 38.3 41.4 35.9 31.5 25.0 20.4 17.2 14.6 12.7 11.1 9.33 0
23 0.70 1.60 2.98 5.57 7.98 10.4 15.0 19.4 23.7 27.9 32.1 36.2 40.2 44.2 38.3 33.6 26.7 21.9 18.4 15.7 13.6 11.9 10.0 0
24 0.73 1.67 3.13 5.83 8.43 10.9 15.7 20.3 24.8 29.2 33.6 37.9 42.1 46.3 40.9 35.9 28.5 23.3 19.5 16.6 14.5 12.7 10.6 0
25 0.77 1.75 3.26 6.09 8.80 11.3 16.3 21.2 25.9 30.9 35.1 39.5 44.0 48.4 43.4 38.1 30.3 24.6 20.7 17.8 15.4 13.5 11.3 0
26 0.80 1.83 3.40 6.36 9.18 11.9 17.1 22.2 27.0 31.9 36.6 41.3 45.9 50.4 46.1 40.4 32.1 26.3 22.0 18.8 16.3 14.3 12.0 0
28 0.87 1.98 3.69 6.89 9.92 12.8 18.5 23.9 29.3 34.5 39.7 44.7 49.8 54.7 51.5 45.2 35.9 29.4 24.6 21.0 18.2 16.0 0
30 0.93 2.13 3.98 7.42 10.7 13.8 19.9 25.8 31.6 37.2 42.7 48.2 53.6 58.9 57.1 50.1 39.8 32.5 27.3 23.3 20.2 17.8 0
32 1.00 2.28 4.26 7.98 11.4 14.8 21.3 27.7 33.9 39.9 45.8 51.6 57.4 63.1 62.9 55.2 43.8 35.9 30.1 25.7 22.2 19.5 0
35 1.10 2.51 4.69 8.73 12.6 16.3 23.6 30.5 37.3 43.9 50.4 56.9 63.3 69.6 72.0 63.2 50.1 41.0 34.4 29.4 25.4 0
40 1.28 2.90 5.42 10.1 14.5 18.9 27.2 35.2 43.0 50.7 58.3 65.7 73.9 80.6 87.3 76.8 61.3 50.1 42.0 35.9 14.9 0
45 1.45 3.30 6.15 11.5 16.6 21.4 30.9 40.0 48.9 57.6 66.2 74.6 82.8 91.0 99.2 91.8 73.1 59.8 50.1 40.3 0
Lubrication Method A B C
Lubrication Method A:Drop Lubrication B:Oil Bath Lubrication C:Forced Circulation Lubrication by Pump
