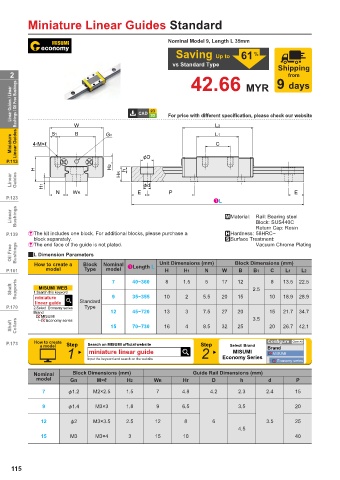

Page 118 - MiSUMi FA Mechanical Components Economy Series

Miniature Linear Guides Standard

Nominal Model 9, Length L 35mm

Saving Up to 61 %
vs Standard Type
Shipping
2 42.66 MYR 9 days
from
Linear Guides / Linear Bushings / Oil Free Bushings For price with different specification, please check our website

B
L1
Miniature Linear Guides 4-M×Ɛ B1 W Gn L2
C
P.113 ПD
H2
H h
Linear Guides HR Пd
H1
N WR E P E
P.123
L
Linear Bushings .Material: Rail: Bearing steel

Block: SUS440C
Return Cap: Resin
P.139 & The kit includes one block. For additional blocks, please purchase a )Hardness: 58HRC~
block separately. 4Surface Treatment:
Vacuum Chrome Plating
&The end face of the guide is not plated.
Oil Free Bushings 2L Dimension Parameters
How to create a Block Nominal Length L Unit Dimensions (mm) Block Dimensions (mm)
P.161 model Type model H H1 N W B B1 C L1 L2

Shaft Supports 1.Search this keyword 7 40~360 8 1.5 5 17 12 2.5 8 13.5 22.5
MISUMI WEB
miniature
linear guide Standard 9 35~355 10 2 5.5 20 15 10 18.9 28.9
P.170 2.Select Economy series Type
Brand 12 45~720 13 3 7.5 27 20 15 21.7 34.7
MISUMI 3.5
Economy series
Shaft Collars 15 70~730 16 4 8.5 32 25 20 26.7 42.1

P.173 How to create Step Search on MISUMI official website Step Configure Clear All
a model Select Brand Brand
1 miniature linear guide 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
Nominal Block Dimensions (mm) Guide Rail Dimensions (mm)
model Gn M×ℓ H2 WR Hr D h d P
7 П1.2 M2×2.5 1.5 7 4.8 4.2 2.3 2.4 15

9 П1.4 M3×3 1.8 9 6.5 3.5 20
12 П2 M3×3.5 2.5 12 8 6 3.5 25
4.5
15 M3 M3×4 3 15 10 40

115
