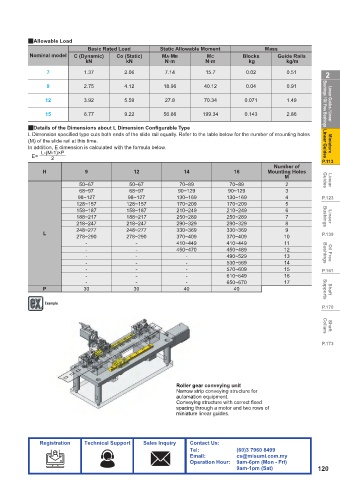

Page 123 - MiSUMi FA Mechanical Components Economy Series

2Allowable Load
Basic Rated Load Static Allowable Moment Mass
Nominal model C (Dynamic) Co (Static) MA·MB MC Blocks Guide Rails
kN kN N·m N·m kg kg/m
7 1.37 2.06 7.14 15.7 0.02 0.51 2

9 2.75 4.12 18.96 40.12 0.04 0.91

12 3.92 5.59 27.8 70.34 0.071 1.49 Bushings / Oil Free Bushings Linear Guides / Linear
15 6.77 9.22 56.66 199.34 0.143 2.86

2Details of the Dimensions about L Dimension Confi gurable Type
L Dimension specifi ed type cuts both ends of the slide rail equally. Refer to the table below for the number of mounting holes
(M) of the slide rail at this time. Linear Guides Miniature
In addition, E dimension is calculated with the formula below.
L-(M-1)×P
E= 2
P.113
Number of
H 9 12 14 16 Mounting Holes
M
50~67 50~67 70~89 70~89 2 Guides Linear
68~97 68~97 90~129 90~129 3
98~127 98~127 130~169 130~169 4 P.123
128~157 128~157 170~209 170~209 5
158~187 158~187 210~249 210~249 6
188~217 188~217 250~289 250~289 7 Bushings Linear
218~247 218~247 290~329 290~329 8
248~277 248~277 330~369 330~369 9
L P.139
278~290 278~290 370~409 370~409 10
- - 410~449 410~449 11
- - 450~470 450~489 12 Bushings
- - - 490~529 13 Oil Free
- - - 530~569 14
- - - 570~609 15 P.161
- - - 610~649 16
- - - 650~670 17
P 30 30 40 40 Supports Shaft

Example
P.170

Shaft
Collars
P.173

Roller
Roller gear conveying unitgea
Narrow strip conveying structure for
Narrow stri
automation equipment.
automation
Conveying
Conveying structure with correct fi xed
spacing through a motor and two rows of
spacing thr
miniature linear guides.
miniature li
