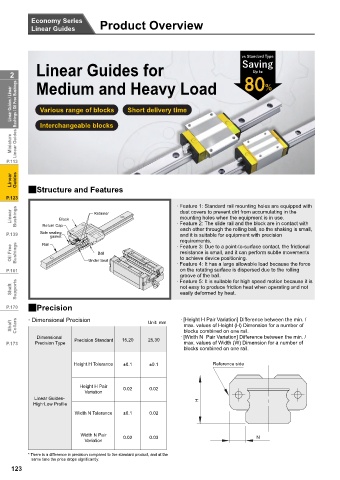

Page 126 - MiSUMi FA Mechanical Components Economy Series

Economy Series
Linear Guides Product Overview

YV 6WDQGDUG 7\SH
Linear Guides for 6DYLQJ
8S WR
2 Medium and Heavy Load ᵖᵎ
Linear Guides / Linear Bushings / Oil Free Bushings Various range of blocksllocks Short delivery timehort delivery ttime

Sh

Miniature Linear Guides Interchangeable blocksllocks

P.113

Linear Guides
2Structure and Features
P.123
· Feature 1: Standard rail mounting holes are equipped with
Linear Bushings Block Retainer dust covers to prevent dirt from accumulating in the
mounting holes when the equipment is in use.
· Feature 2: The slide rail and the block are in contact with
Return Cap
each other through the rolling ball, so the shaking is small,
P.139 Side sealing
gasket and it is suitable for equipment with precision
requirements.
Rail
Oil Free Bushings Ball · Feature 3: Due to a point-to-surface contact, the frictional
resistance is small, and it can perform subtle movements
to achieve device positioning.
Under Seal
· Feature 4: It has a large allowable load because the force
P.161 on the rotating surface is dispersed due to the rolling
groove of the ball.
· Feature 5: It is suitable for high speed motion because it is
Shaft Supports not easy to produce friction heat when operating and not
easily deformed by heat.
P.170 2Precision
Shaft Collars · Dimensional Precision Unit: mm · [Height H Pair Variation] Difference between the min. /
max. values of Height (H) Dimension for a number of
blocks combined on one rail.
Dimensional Precision Standard 15,20 25,30 · [Width N Pair Variation] Difference between the min. /
P.173 Precision Type max. values of Width (W) Dimension for a number of
blocks combined on one rail.

Height H Tolerance ±0.1 ±0.1 Reference side

Height H Pair 0.02 0.02
Variation
Linear Guides- H
High·Low Profile
Width N Tolerance ±0.1 0.02

Width N Pair 0.02 0.03 N
Variation

* There is a difference in precision compared to the standard product, and at the
same time the price drops significantly.
123
