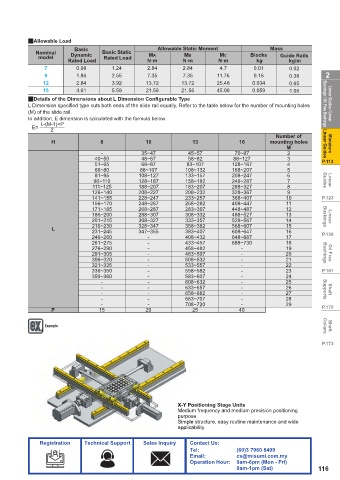

Page 119 - MiSUMi FA Mechanical Components Economy Series

2Allowable Load
Basic Allowable Static Moment Mass
Nominal Basic Static MA MB MC Blocks
model Dynamic Rated Load Guide Rails
Rated Load N·m N·m N·m kg kg/m
7 0.98 1.24 2.84 2.84 4.7 0.01 0.02
9 1.86 2.55 7.35 7.35 11.76 0.16 0.38 2
12 2.84 3.92 13.72 13.72 25.48 0.034 0.65
15 4.61 5.59 21.56 21.56 45.08 0.059 1.06
2Details of the Dimensions about L Dimension Confi gurable Type
L Dimension specifi ed type cuts both ends of the slide rail equally. Refer to the table below for the number of mounting holes Bushings / Oil Free Bushings Linear Guides / Linear
(M) of the slide rail.
In addition, E dimension is calculated with the formula below.
L-(M-1)×P
E=
2
Number of
H 8 10 13 16 mounting holes Linear Guides Miniature
M
- 35~47 45~57 70~87 2
40~50 48~67 58~82 88~127 3 P.113
51~65 68~87 83~107 128~167 4
66~80 88~107 108~132 168~207 5
81~95 108~127 133~157 208~247 6
96~110 128~187 158~182 248~287 7 Guides Linear
111~125 188~207 183~207 288~327 8
126~140 208~227 208~232 328~367 9
141~155 228~247 233~257 368~407 10 P.123
156~170 248~267 258~282 408~447 11
171~185 268~287 283~307 448~487 12
186~200 288~307 308~332 488~527 13 Bushings Linear
201~215 308~327 333~357 528~567 14
216~230 328~347 358~382 568~607 15
L
231~245 347~355 383~407 608~647 16 P.139
246~260 - 408~432 648~687 17
261~275 - 433~457 688~730 18
276~290 - 458~482 - 19
291~305 - 483~507 - 20 Bushings Oil Free
306~320 - 508~532 - 21
321~335 - 533~557 - 22
336~350 - 558~582 - 23 P.161
350~360 - 583~607 - 24
- - 608~632 - 25
- - 633~657 - 26 Supports Shaft
- - 658~682 - 27
- - 683~707 - 28
- - 708~720 - 29
P 15 20 25 40 P.170

Example Collars Shaft

P.173

X-Y Po
X-Y Positioning Stage Units
Medium
Medium frequency and medium precision positioning
purpose.
purpose
Simple structure, easy routine maintenance and wide
Simple
applica
applicability.
