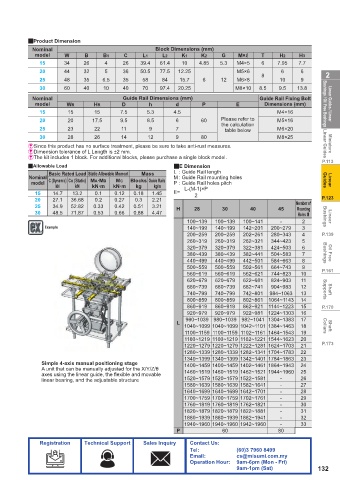

Page 135 - MiSUMi FA Mechanical Components Economy Series

2Product Dimension
Nominal Block Dimensions (mm)
model W B B1 C L1 L2 K1 K2 G M×- T H2 H3
15 34 26 4 26 39.4 61.4 10 4.85 5.3 M4×5 6 7.95 7.7
20 44 32 5 36 50.5 77.5 12.25 M5×6 6 6
8 2
25 48 35 6.5 35 58 84 15.7 6 12 M6×8 10 9
30 60 40 10 40 70 97.4 20.25 M8×10 8.5 9.5 13.8
Nominal Guide Rail Dimensions (mm) Guide Rail Fixing Bolt
model WR HR D h d P E Dimensions (mm) Bushings / Oil Free Bushings Linear Guides / Linear
15 15 15 7.5 5.3 4.5 M4×16
20 20 17.5 9.5 8.5 6 60 Please refer to M5×16
the calculation
25 23 22 11 9 7 table below M6×20
30 28 26 14 12 9 80 M8×25
&Since this product has no surface treatment, please be sure to take anti-rust measures. Linear Guides Miniature
&Dimension tolerance of L Length is ±2 mm.
&The kit includes 1 block. For additional blocks, please purchase a single block model.
P.113
2Allowable Load 2E Dimension
Basic Rated Load Static Allowable Moment Mass L : Guide Rail length
Nominal M : Guide Rail mounting holes
model C (Dynamic) Co (Static) MA·MB MC Blocks Guide Rails P : Guide Rail holes pitch Guides Linear
kN kN kN·m kN·m kg kg/m L-(M-1)×P
15 14.7 13.2 0.1 0.12 0.18 1.45 E= 2
20 27.1 36.68 0.2 0.27 0.3 2.21 Number of P.123
25 34.9 52.82 0.33 0.42 0.51 3.21 H 28 30 40 45 Mounting
30 48.5 71.87 0.53 0.66 0.88 4.47 Holes M Bushings
100~139 100~139 100~141 - 2 Linear
Example 140~199 140~199 142~201 200~279 3
200~259 200~259 202~261 280~343 4 P.139
260~319 260~319 262~321 344~423 5
320~379 320~379 322~381 424~503 6
380~439 380~439 382~441 504~583 7 Bushings Oil Free
440~499 440~499 442~501 584~663 8
500~559 500~559 502~561 664~743 9
560~619 560~619 562~621 744~823 10 P.161
620~679 620~679 622~681 824~903 11
680~739 680~739 682~741 904~983 12 Supports Shaft
740~799 740~799 742~801 984~1063 13
800~859 800~859 802~861 1064~1143 14
860~919 860~919 862~921 1144~1223 15 P.170
920~979 920~979 922~981 1224~1303 16
980~1039 980~1039 982~1041 1304~1383 17
L
1040~1099 1040~1099 1042~1101 1384~1463 18 Collars Shaft
1100~1159 1100~1159 1102~1161 1464~1543 19
1160~1219 1160~1219 1162~1221 1544~1623 20
1220~1279 1220~1279 1222~1281 1624~1703 21 P.173
1280~1339 1280~1339 1282~1341 1704~1783 22
1340~1399 1340~1399 1342~1401 1784~1863 23
Simple 4-axis manual positioning stage 1400~1459 1400~1459 1402~1461 1864~1943 24
A unit that can be manually adjusted for the X/Y/Z/θ 1460~1519 1460~1519 1462~1521 1944~1960 25
axes using the linear guide, the fl exible and movable
linear bearing, and the adjustable structure 1520~1579 1520~1579 1522~1581 - 26
1580~1639 1580~1639 1582~1641 - 27
1640~1699 1640~1699 1642~1701 - 28
1700~1759 1700~1759 1702~1761 - 29
1760~1819 1760~1819 1762~1821 - 30
1820~1879 1820~1879 1822~1881 - 31
1880~1939 1880~1939 1882~1941 - 32
1940~1960 1940~1960 1942~1960 - 33
P 60 80
