P. 73

1

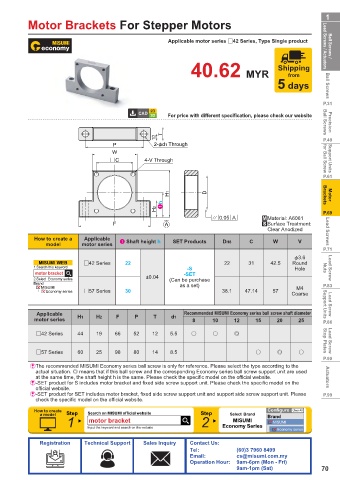

           Motor Brackets For Stepper Motors

                                                      Applicable motor series ∓42 Series, Type Single product  Lead Screws / Actuators  Ball Screws /



                                                                                       Shipping
                                                             40.62 MYR                    from
                                                                                       5 days         Ball Screws


                                                                                                     P.31
                                                      For price with different specification, please check our website  Ball Screws  Precision


                                                    T
                                                  T/2                                                P.49
                                     P           2-Пd1 Through
                                     W
                                     C         4-V Through                                           for Ball Screw  Support Units

                                                                                                     P.61

                                                      H1         D                                   Brackets  Motor
                                                     h
                                                  H2                                                 P.69
                                                                     0.05  A      .Material:  A6061
                                     F               A                            4Surface Treatment:
                                                                                    Clear Anodized    Lead Screws
             How to create a   Applicable
                 model      motor series    Shaft height h  SET Products  DH8  C      W      V
                                                                                                     P.71
                                                                                            П3.6
              MISUMI WEB     42 Series   22                            22     31     42.5  Round
             1.Search this keyword                         -S                               Hole     Nuts  Lead Screw
             motor bracket                                -SET
             2.Select  Economy series          ±0.04  (Can be purchase
             Brand
               MISUMI                                    as a set)                           M4      P.83
                 Economy series   57 Series  30                       38.1   47.14   57
                                                                                           Coarse
              Applicable                                   Recommended MISUMI Economy series ball screw shaft diameter  Support Units   Lead Screw
             motor series  H1   H2    F     P    T     d1    8     10     12    15     20    25      P.86

               42 Series  44    19    66   52    12   5.5    (     (      1                          Stop Plates  Lead Screw

               57 Series  60    25    98   80    14   8.5                       (      1     (
                                                                                                     P.90
            &The recommended MISUMI Economy series ball screw is only for reference. Please select the type according to the
              actual situation. 1 means that if this ball screw and the corresponding Economy series ball screw support unit are used
              at the same time, the shaft height h is the same. Please check the specific model on the official website.  Actuators
            &-SET product for S includes motor bracket and fixed side screw support unit. Please check the specific model on the
              official website.
            &-SET product for SET includes motor bracket, fixed side screw support unit and support side screw support unit. Please   P.99
              check the specific model on the official website.
             How to create   Search on MISUMI official website                      Configure  Clear All
               a model  Step                                    Step    Select  Brand  Brand
                       1      motor bracket                     2        MISUMI       MISUMI
                                                                      Economy Series
                             Input the keyword and search on the website
                                                                                       Economy series
