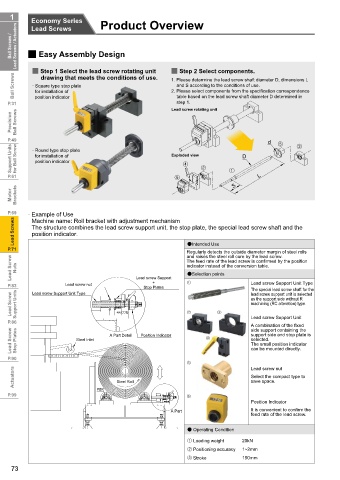

1     Economy Series       Product Overview
            Economy Series
            Product Overview Lead Screws
            Lead Screws
      Ball Screws /  Lead Screws / Actuators  2 Easy Assembly Design





       Ball Screws  2 Step 1 Select the lead screw rotating unit   2 Step 2 Select components.
               drawing that meets the conditions of use.
                                                       1. Please determine the lead screw shaft diameter D, dimensions L
                                                        and S according to the conditions of use.
             · Square type stop plate
             for installation of
                                                       2. Please select components from the specification correspondence
                                                        table based on the lead screw shaft diameter D determined in
                                                        step 1.
     P.31    position indicator                        Lead screw rotating unit
      Precision   Ball Screws
     P.49                                                                           d
      Support Units   for Ball Screw  · Round type stop plate   Exploded view  D
             for installation of
             position indicator

     P.61                                                                 S      L
      Motor   Brackets



     P.69  · Example of Use
       Lead Screws  The structure combines the lead screw support unit, the stop plate, the special lead screw shaft and the
            Machine name: Roll bracket with adjustment mechanism
            position indicator.
                                                            *Intended Use
     P.71                                                  Regularly detects the outside diameter margin of steel rolls
      Lead Screw   Nuts                                    The feed rate of the lead screw is confirmed by the position
                                                           and raises the steel roll core by the lead screw.
                                                           indicator instead of the conversion table.
                                                            *Selection points
                                                 +
                      Lead screw nut
     P.83   Lead screw Support Unit Type    Lead screw Support                 Lead screw Support Unit Type
                                              Stop Plates
                                                                               The special lead screw shaft for the
      Lead Screw   Support Units                                               as the support side without R
                                                                               lead screw support unit is selected
                                                                               machining (RC alteration) type.
     P.86                                                                      Lead screw Support Unit
                                                                               A combination of the fixed
      Lead Screw   Stop Plates  Steel Inlet  A Part Detail  Position Indicator     support side and stop plate is
                                                                               side support containing the
                                                                               selected.
                                                                               The small position indicator
                                                                               can be mounted directly.
     P.90
                                                                               Lead screw nut
       Actuators                      Steel Roll                               Select the compact type to
                                                                               save space.
                                PBR
     P.99
                                                                               Position Indicator
                                                       APart                   It is convenient to confirm the
                                                                               feed rate of the lead screw.
                                                            * Operating Condition
                                                              Loading weight  20kN
                                                              Positioning accuracy  1~2mm
                                                              Stroke        150mm
