                                                                                 Economy Series

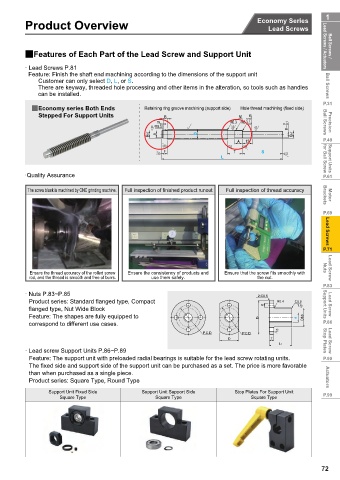

          Product Overview                                                          Lead Screws


          2Features of Each Part of the Lead Screw and Support Unit                                  Lead Screws / Actuators  Ball Screws /

          · Lead Screws P.81
            Feature: Finish the shaft end machining according to the dimensions of the support unit
                  Customer can only select D, L,or S.
                  There are keyway, threaded hole processing and other items in the alteration, so tools such as handles  Ball Screws
              can be installed.
                                                                                                     P.31
            2Economy series Both Ends          Retaining ring groove machining (support side)  Male thread machining (fixed side)
              Stepped For Support Units                                                              Ball Screws  Precision



                                                                                                     P.49





          ·Quality Assurance                                                                         P.61
                                                                                                     for Ball Screw
                                                                                                      Support Units
           The screw blank is machined by CNC grinding machine.  Full inspection of finished product runout  Full inspection of thread accuracy  Brackets  Motor


                                                                                                     P.69





                                                                                                      Lead Screws
                                                                                                     P.71

            Ensure the thread accuracy of the rolled screw  Ensure the consistency of products and  Ensure that the screw fits smoothly with  Nuts  Lead Screw
            rod, and the thread is smooth and free of burrs.  use them safely.   the nut.
                                                                                                     P.83
          ·NutsP.83~P.85                                                         2-C0.5
           Product series: Standard flanged type, Compact                              R0.4  C0.5
                                                                                   K         1.6     Support Units   Lead Screw
           flanged type, Nut Wide Block
           Feature: The shapes are fully equipped to                             D1          d  Dh8
           correspond to different use cases.                                                        P.86
                                                                                       1.6
                                                                P.C.D.      P.C.D.
                                                                        D            T               Stop Plates
                                                                                       L1             Lead Screw
          · Lead screw Support Units P.86~P.89
           Feature: The support unit with preloaded radial bearings is suitable for the lead screw rotating units.  P.90
           The fixed side and support side of the support unit can be purchased as a set. The price is more favorable
           than when purchased as a single piece.
           Product series: Square Type, Round Type                                                    Actuators
                 Support Unit Fixed Side      Support Unit Support Side   Stop Plates For Support Unit
                     Square Type                  Square Type                  Square Type           P.99
