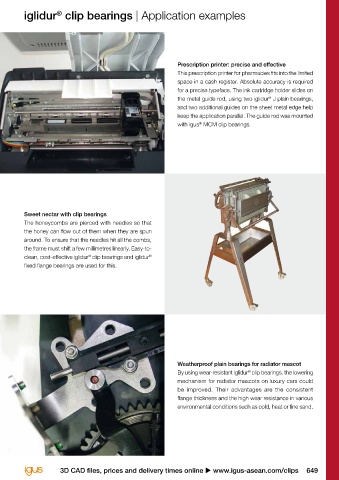

iglidur  clip bearings | Product overview  iglidur  clip bearings | Application examples
 ®
                     ®







                                                               Prescription printer: precise and effective
                                                               This prescription printer for pharmacies fits into the limited
                                                               space in a cash register. Absolute accuracy is required
                                                               for a precise typeface. The ink cartridge holder slides on
                                                               the metal guide rod, using two iglidur  J plain bearings,
                                                                                               ®
                                                               and two additional guides on the sheet metal edge help
 iglidur  clip bearings  iglidur  split bearings (clips2)      keep the application parallel. The guide rod was mounted
 ®
 ®
                                                                       ®
 ●  Easy to fit due to clip-on feature  ●  Easy to fit         with igus  MCM clip bearings.
 ●  Increased security with the double flange design  ●  Tolerance compensation with angled slot
 ●  Abrasion-resistant  ●  Low bearing clearance, high precision
 u From page 652  u From page 656












          Sweet nectar with clip bearings
          The honeycombs are pierced with needles so that
          the honey can flow out of them when they are spun
          around. To ensure that the needles hit all the combs,
 iglidur  flanged bearings  iglidur  double flange bearings  the frame must shift a few millimetres linearly. Easy-to-
 ®
 ®
 ●  Easy installation  ●  Easy to fit due to clip-on feature  clean, cost-effective iglidur  clip bearings and iglidur
                                ®
                                                     ®
 ●  Press-fit  ●  Large flange surfaces  fixed flange bearings are used for this.
 ●  Axial load on both sides  ●  Two identical large flange surfaces
 ●  Compensation of tolerances of the sheet metal  u From page 659
 u From page 658















                                                               Weatherproof plain bearings for radiator mascot
                                                               By using wear-resistant iglidur  clip bearings, the lowering
                                                                                        ®
                                                               mechanism for radiator mascots on luxury cars could
 Special solution iglidur  Clip On                             be improved. Their advantages are the consistent
 ®
 ●  The disc is snapped onto the flanged bearing with          flange thickness and the high wear resistance in various
 undercuts                                                     environmental conditions such as cold, heat or fine sand.
 ●  Compensation of axial clearance
 ●  Pre-assembly possible
 ●  Combination of conductive and non-conductive
 materials
 ASEAN 09/2023
 u From page 660
