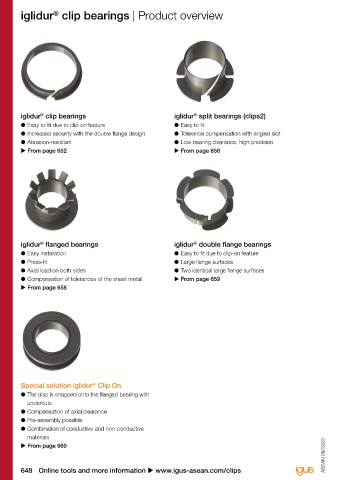

iglidur clip bearings | Product overview iglidur clip bearings | Application examples
®
®
Prescription printer: precise and effective
This prescription printer for pharmacies fits into the limited
space in a cash register. Absolute accuracy is required
for a precise typeface. The ink cartridge holder slides on
the metal guide rod, using two iglidur J plain bearings,
®
and two additional guides on the sheet metal edge help
iglidur clip bearings iglidur split bearings (clips2) keep the application parallel. The guide rod was mounted
®
®
®
● Easy to fit due to clip-on feature ● Easy to fit with igus MCM clip bearings.
● Increased security with the double flange design ● Tolerance compensation with angled slot
● Abrasion-resistant ● Low bearing clearance, high precision
u From page 652 u From page 656
Sweet nectar with clip bearings
The honeycombs are pierced with needles so that
the honey can flow out of them when they are spun
around. To ensure that the needles hit all the combs,
iglidur flanged bearings iglidur double flange bearings the frame must shift a few millimetres linearly. Easy-to-
®
®
● Easy installation ● Easy to fit due to clip-on feature clean, cost-effective iglidur clip bearings and iglidur
®
®
● Press-fit ● Large flange surfaces fixed flange bearings are used for this.
● Axial load on both sides ● Two identical large flange surfaces
● Compensation of tolerances of the sheet metal u From page 659
u From page 658
Weatherproof plain bearings for radiator mascot
By using wear-resistant iglidur clip bearings, the lowering
®
mechanism for radiator mascots on luxury cars could
Special solution iglidur Clip On be improved. Their advantages are the consistent
®
● The disc is snapped onto the flanged bearing with flange thickness and the high wear resistance in various
undercuts environmental conditions such as cold, heat or fine sand.
● Compensation of axial clearance
● Pre-assembly possible
● Combination of conductive and non-conductive
materials
ASEAN 09/2023
u From page 660
