iglidur G iglidur G
®
®
+130°C +130°C
80MPa 80MPa

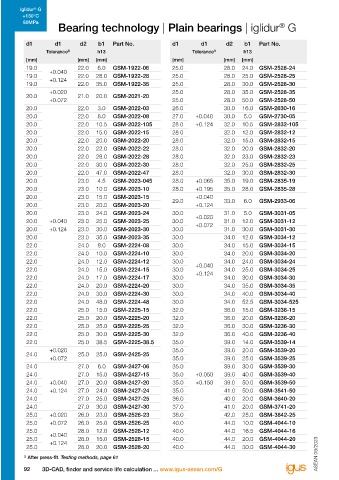

Bearing technology | Plain bearings | iglidur G Product range
®
d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No. d1 d1 d2 b1 Part No.
Tolerance 3) h13 Tolerance 3) h13 Tolerance 3) h13 Tolerance 3) h13
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
19.0 +0.040 22.0 6.0 GSM-1922-06 25.0 28.0 24.0 GSM-2528-24 40.0 44.0 40.0 GSM-4044-40 62.0 +0.100 67.0 35.0 GSM-6267-35
19.0 +0.124 22.0 28.0 GSM-1922-28 25.0 28.0 25.0 GSM-2528-25 40.0 44.0 50.0 GSM-4044-50 +0.250
19.0 22.0 35.0 GSM-1922-35 25.0 28.0 30.0 GSM-2528-30 40.0 44.0 52.5 GSM-4044-525 62.0 67.0 72.0 GSM-6267-72
+0.020 25.0 28.0 35.0 GSM-2528-35 42.0 46.0 40.0 GSM-4246-40 65.0 70.0 30.0 GSM-6570-30
20.0 21.0 20.0 GSM-2021-20
+0.072 25.0 28.0 50.0 GSM-2528-50 44.0 48.0 20.0 GSM-4448-20 65.0 70.0 50.0 GSM-6570-50
20.0 22.0 3.0 GSM-2022-03 26.0 30.0 16.0 GSM-2630-16 45.0 50.0 10.0 GSM-4550-10 65.0 70.0 104.0 GSM-6570-104
20.0 22.0 8.0 GSM-2022-08 27.0 +0.040 30.0 5.0 GSM-2730-05 45.0 50.0 20.0 GSM-4550-20 68.0 73.0 60.0 GSM-6873-60
20.0 22.0 10.5 GSM-2022-105 28.0 +0.124 32.0 10.5 GSM-2832-105 45.0 50.0 22.0 GSM-4550-22 70.0 +0.060 75.0 60.0 GSM-7075-60
20.0 22.0 15.0 GSM-2022-15 28.0 32.0 12.0 GSM-2832-12 45.0 +0.050 50.0 23.5 GSM-4550-235 72.0 +0.180 77.0 24.5 GSM-7277-24.5
20.0 22.0 20.0 GSM-2022-20 28.0 32.0 15.0 GSM-2832-15 45.0 +0.150 50.0 30.0 GSM-4550-30 72.0 77.0 76.0 GSM-7277-76
20.0 22.0 22.0 GSM-2022-22 28.0 32.0 20.0 GSM-2832-20 45.0 50.0 38.0 GSM-4550-38 75.0 80.0 40.0 GSM-7580-40
20.0 22.0 28.0 GSM-2022-28 28.0 32.0 23.0 GSM-2832-23 45.0 50.0 40.0 GSM-4550-40 75.0 80.0 60.0 GSM-7580-60
20.0 22.0 30.0 GSM-2022-30 28.0 32.0 25.0 GSM-2832-25 45.0 50.0 50.0 GSM-4550-50 80.0 85.0 60.0 GSM-8085-60
20.0 22.0 47.0 GSM-2022-47 28.0 32.0 30.0 GSM-2832-30 50.0 55.0 20.0 GSM-5055-20 80.0 85.0 100.0 GSM-8085-100
20.0 23.0 4.5 GSM-2023-045 28.0 +0.065 35.0 19.0 GSM-2835-19 50.0 55.0 25.0 GSM-5055-25 85.0 90.0 100.0 GSM-8590-100
20.0 23.0 10.0 GSM-2023-10 28.0 +0.195 35.0 28.0 GSM-2835-28 50.0 55.0 30.0 GSM-5055-30 90.0 95.0 100.0 GSM-9095-100
20.0 23.0 15.0 GSM-2023-15 29.0 +0.040 33.0 6.0 GSM-2933-06 50.0 55.0 40.0 GSM-5055-40 95.0 100.0 100.0 GSM-95100-100
20.0 23.0 20.0 GSM-2023-20 +0.124 50.0 55.0 50.0 GSM-5055-50 100.0 105.0 21.5 GSM-100105-21.5
20.0 23.0 24.0 GSM-2023-24 30.0 +0.020 31.0 5.0 GSM-3031-05 50.0 55.0 60.0 GSM-5055-60 100.0 +0.072 105.0 30.0 GSM-100105-30
20.0 +0.040 23.0 25.0 GSM-2023-25 30.0 +0.072 31.0 12.0 GSM-3031-12 52.0 57.0 20.0 GSM-5257-20 100.0 +0.212 105.0 32.0 GSM-100105-32
20.0 +0.124 23.0 30.0 GSM-2023-30 30.0 31.0 30.0 GSM-3031-30 55.0 60.0 20.0 GSM-5560-20 100.0 105.0 100.0 GSM-100105-100
20.0 23.0 35.0 GSM-2023-35 30.0 34.0 12.0 GSM-3034-12 55.0 60.0 40.0 GSM-5560-40 105.0 110.0 100.0 GSM-105110-100
22.0 24.0 8.0 GSM-2224-08 30.0 34.0 15.0 GSM-3034-15 55.0 60.0 50.0 GSM-5560-50 110.0 115.0 100.0 GSM-110115-100
22.0 24.0 10.0 GSM-2224-10 30.0 34.0 20.0 GSM-3034-20 55.0 +0.060 60.0 60.0 GSM-5560-60 120.0 125.0 100.0 GSM-120125-100
22.0 24.0 12.0 GSM-2224-12 30.0 +0.040 34.0 24.0 GSM-3034-24 60.0 +0.180 65.0 30.0 GSM-6065-30 125.0 130.0 100.0 GSM-125130-100
22.0 24.0 15.0 GSM-2224-15 30.0 +0.124 34.0 25.0 GSM-3034-25 60.0 65.0 40.0 GSM-6065-40 130.0 135.0 100.0 GSM-130135-100
22.0 24.0 17.0 GSM-2224-17 30.0 34.0 30.0 GSM-3034-30 60.0 65.0 50.0 GSM-6065-50 135.0 +0.085 140.0 80.0 GSM-135140-80
22.0 24.0 20.0 GSM-2224-20 30.0 34.0 35.0 GSM-3034-35 60.0 65.0 60.0 GSM-6065-60 140.0 +0.245 145.0 100.0 GSM-140145-100
22.0 24.0 30.0 GSM-2224-30 30.0 34.0 40.0 GSM-3034-40 60.0 65.0 70.0 GSM-6065-70 140.0 145.0 104.0 GSM-140145-104
22.0 24.0 48.0 GSM-2224-48 30.0 34.0 52.5 GSM-3034-525 150.0 155.0 100.0 GSM-150155-100
22.0 25.0 15.0 GSM-2225-15 32.0 36.0 15.0 GSM-3236-15 3) After press-fit. Testing methods, page 61
22.0 25.0 20.0 GSM-2225-20 32.0 36.0 20.0 GSM-3236-20
22.0 25.0 25.0 GSM-2225-25 32.0 36.0 30.0 GSM-3236-30
22.0 25.0 30.0 GSM-2225-30 32.0 36.0 40.0 GSM-3236-40
22.0 25.0 38.5 GSM-2225-38.5 35.0 39.0 14.0 GSM-3539-14
+0.020 35.0 39.0 20.0 GSM-3539-20
24.0 25.0 25.0 GSM-2425-25
+0.072 35.0 39.0 25.0 GSM-3539-25
24.0 27.0 6.0 GSM-2427-06 35.0 39.0 30.0 GSM-3539-30 Available from stock Ordering note
24.0 27.0 15.0 GSM-2427-15 35.0 +0.050 39.0 40.0 GSM-3539-40 Detailed information about delivery time online. Our prices are scaled according to order
24.0 +0.040 27.0 20.0 GSM-2427-20 35.0 +0.150 39.0 50.0 GSM-3539-50 www.igus-asean.com/24 quantities, current prices can be found online.
24.0 +0.124 27.0 24.0 GSM-2427-24 35.0 41.0 50.0 GSM-3541-50 Order online
24.0 27.0 25.0 GSM-2427-25 36.0 40.0 20.0 GSM-3640-20 including delivery times, prices, online tools Discount scaling
24.0 27.0 30.0 GSM-2427-30 37.0 41.0 20.0 GSM-3741-20 www.igus-asean.com/G 1-9 50-99 500-999
25.0 +0.020 26.0 23.0 GSM-2526-23 38.0 42.0 25.0 GSM-3842-25 10-24 100-199 1,000-2,499
25.0 +0.072 26.0 25.0 GSM-2526-25 40.0 44.0 10.0 GSM-4044-10 25-49 200-499 2,500-4,999
25.0 +0.040 28.0 12.0 GSM-2528-12 40.0 44.0 16.5 GSM-4044-16 No minimum order value.
25.0 +0.124 28.0 15.0 GSM-2528-15 40.0 44.0 20.0 GSM-4044-20 No low-quantity surcharges.
25.0 28.0 20.0 GSM-2528-20 40.0 44.0 30.0 GSM-4044-30 Free shipping within Germany for orders

3) After press-fit. Testing methods, page 61 ASEAN 09/2023 ASEAN 09/2023 above €150.
