iglidur  G                                                                                                                                                                                                              iglidur  G
             ®
                                                                                                                                                                                                                                      ®
         +130°C                                                                                                                                                                                                                   +130°C
          80MPa                                                                                                                                                                                                                   80MPa

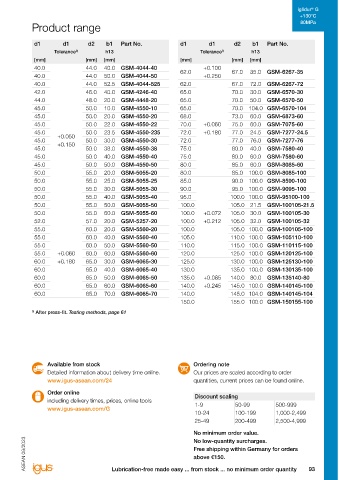

                      Bearing technology | Plain bearings | iglidur  G                                                              Product range
                                                                                                    ®
           d1        d1       d2    b1   Part No.             d1        d1       d2    b1   Part No.                                d1         d1      d2     b1   Part No.             d1        d1       d2    b1   Part No.
                  Tolerance 3)      h13                              Tolerance 3)      h13                                                  Tolerance 3)      h13                              Tolerance 3)      h13
           [mm]              [mm]  [mm]                       [mm]              [mm]  [mm]                                          [mm]               [mm]  [mm]                       [mm]              [mm]  [mm]
           19.0    +0.040    22.0   6.0  GSM-1922-06          25.0              28.0  24.0  GSM-2528-24                             40.0               44.0  40.0  GSM-4044-40          62.0    +0.100    67.0  35.0  GSM-6267-35
           19.0    +0.124    22.0  28.0  GSM-1922-28          25.0              28.0  25.0  GSM-2528-25                             40.0               44.0  50.0  GSM-4044-50                  +0.250
           19.0              22.0  35.0  GSM-1922-35          25.0              28.0  30.0  GSM-2528-30                             40.0               44.0  52.5  GSM-4044-525         62.0              67.0  72.0  GSM-6267-72
                   +0.020                                     25.0              28.0  35.0  GSM-2528-35                             42.0               46.0  40.0  GSM-4246-40          65.0              70.0  30.0  GSM-6570-30
           20.0              21.0  20.0  GSM-2021-20
                   +0.072                                     25.0              28.0  50.0  GSM-2528-50                             44.0               48.0  20.0  GSM-4448-20          65.0              70.0  50.0  GSM-6570-50
           20.0              22.0   3.0  GSM-2022-03          26.0              30.0  16.0  GSM-2630-16                             45.0               50.0  10.0  GSM-4550-10          65.0              70.0  104.0 GSM-6570-104
           20.0              22.0   8.0  GSM-2022-08          27.0    +0.040    30.0   5.0  GSM-2730-05                             45.0               50.0  20.0  GSM-4550-20          68.0              73.0  60.0  GSM-6873-60
           20.0              22.0  10.5  GSM-2022-105         28.0    +0.124    32.0  10.5  GSM-2832-105                            45.0               50.0  22.0  GSM-4550-22          70.0    +0.060    75.0  60.0  GSM-7075-60
           20.0              22.0  15.0  GSM-2022-15          28.0              32.0  12.0  GSM-2832-12                             45.0     +0.050    50.0  23.5  GSM-4550-235         72.0    +0.180    77.0  24.5  GSM-7277-24.5
           20.0              22.0  20.0  GSM-2022-20          28.0              32.0  15.0  GSM-2832-15                              45.0    +0.150    50.0  30.0  GSM-4550-30          72.0              77.0  76.0  GSM-7277-76
           20.0              22.0  22.0  GSM-2022-22          28.0              32.0  20.0  GSM-2832-20                              45.0              50.0  38.0  GSM-4550-38          75.0              80.0  40.0  GSM-7580-40
           20.0              22.0  28.0  GSM-2022-28          28.0              32.0  23.0  GSM-2832-23                              45.0              50.0  40.0  GSM-4550-40          75.0              80.0  60.0  GSM-7580-60
           20.0              22.0  30.0  GSM-2022-30          28.0              32.0  25.0  GSM-2832-25                              45.0              50.0  50.0  GSM-4550-50          80.0              85.0  60.0  GSM-8085-60
           20.0              22.0  47.0  GSM-2022-47          28.0              32.0  30.0  GSM-2832-30                              50.0              55.0  20.0  GSM-5055-20          80.0              85.0  100.0 GSM-8085-100
           20.0              23.0   4.5  GSM-2023-045         28.0    +0.065    35.0  19.0  GSM-2835-19                              50.0              55.0  25.0  GSM-5055-25          85.0              90.0  100.0 GSM-8590-100
           20.0              23.0  10.0  GSM-2023-10          28.0    +0.195    35.0  28.0  GSM-2835-28                              50.0              55.0  30.0  GSM-5055-30          90.0              95.0  100.0 GSM-9095-100
           20.0              23.0  15.0  GSM-2023-15          29.0    +0.040    33.0   6.0  GSM-2933-06                              50.0              55.0  40.0  GSM-5055-40          95.0             100.0 100.0 GSM-95100-100
           20.0              23.0  20.0  GSM-2023-20                  +0.124                                                         50.0              55.0  50.0  GSM-5055-50          100.0            105.0  21.5  GSM-100105-21.5
           20.0              23.0  24.0  GSM-2023-24          30.0    +0.020    31.0   5.0  GSM-3031-05                              50.0              55.0  60.0  GSM-5055-60          100.0   +0.072   105.0  30.0  GSM-100105-30
           20.0    +0.040    23.0  25.0  GSM-2023-25          30.0    +0.072    31.0  12.0  GSM-3031-12                              52.0              57.0  20.0  GSM-5257-20          100.0   +0.212   105.0  32.0  GSM-100105-32
           20.0    +0.124    23.0  30.0  GSM-2023-30          30.0              31.0  30.0  GSM-3031-30                              55.0              60.0  20.0  GSM-5560-20          100.0            105.0 100.0 GSM-100105-100
           20.0              23.0  35.0  GSM-2023-35          30.0              34.0  12.0  GSM-3034-12                              55.0              60.0  40.0  GSM-5560-40          105.0            110.0 100.0 GSM-105110-100
           22.0              24.0   8.0  GSM-2224-08          30.0              34.0  15.0  GSM-3034-15                              55.0              60.0  50.0  GSM-5560-50          110.0            115.0 100.0 GSM-110115-100
           22.0              24.0  10.0  GSM-2224-10          30.0              34.0  20.0  GSM-3034-20                              55.0    +0.060    60.0  60.0  GSM-5560-60          120.0            125.0 100.0 GSM-120125-100
           22.0              24.0  12.0  GSM-2224-12          30.0    +0.040    34.0  24.0  GSM-3034-24                              60.0    +0.180    65.0  30.0  GSM-6065-30          125.0            130.0 100.0 GSM-125130-100
           22.0              24.0  15.0  GSM-2224-15          30.0    +0.124    34.0  25.0  GSM-3034-25                              60.0              65.0  40.0  GSM-6065-40          130.0            135.0 100.0 GSM-130135-100
           22.0              24.0  17.0  GSM-2224-17          30.0              34.0   30.0  GSM-3034-30                             60.0              65.0  50.0  GSM-6065-50          135.0   +0.085   140.0  80.0  GSM-135140-80
           22.0              24.0  20.0  GSM-2224-20          30.0              34.0   35.0  GSM-3034-35                             60.0              65.0  60.0  GSM-6065-60          140.0   +0.245   145.0 100.0 GSM-140145-100
           22.0              24.0  30.0  GSM-2224-30          30.0              34.0   40.0  GSM-3034-40                             60.0              65.0  70.0  GSM-6065-70          140.0            145.0 104.0 GSM-140145-104
           22.0              24.0  48.0  GSM-2224-48          30.0              34.0   52.5  GSM-3034-525                                                                               150.0            155.0 100.0 GSM-150155-100
           22.0              25.0  15.0  GSM-2225-15          32.0              36.0   15.0  GSM-3236-15                            3)  After press-fit. Testing methods, page 61
           22.0              25.0  20.0  GSM-2225-20          32.0              36.0   20.0  GSM-3236-20
           22.0              25.0  25.0  GSM-2225-25          32.0              36.0   30.0  GSM-3236-30
           22.0              25.0  30.0  GSM-2225-30          32.0              36.0   40.0  GSM-3236-40
           22.0              25.0  38.5  GSM-2225-38.5        35.0              39.0   14.0  GSM-3539-14
                   +0.020                                     35.0              39.0   20.0  GSM-3539-20
           24.0              25.0  25.0  GSM-2425-25
                   +0.072                                     35.0              39.0   25.0  GSM-3539-25
           24.0              27.0   6.0  GSM-2427-06          35.0              39.0   30.0  GSM-3539-30                                 Available from stock                               Ordering note
           24.0              27.0  15.0  GSM-2427-15          35.0    +0.050    39.0   40.0  GSM-3539-40                                 Detailed information about delivery time online.   Our prices are scaled according to order
           24.0    +0.040    27.0  20.0  GSM-2427-20          35.0    +0.150    39.0   50.0  GSM-3539-50                                 www.igus-asean.com/24                              quantities, current prices can be found online.
           24.0    +0.124    27.0  24.0  GSM-2427-24          35.0              41.0   50.0  GSM-3541-50                                 Order online
           24.0              27.0  25.0  GSM-2427-25          36.0              40.0   20.0  GSM-3640-20                                 including delivery times, prices, online tools      Discount scaling
           24.0              27.0  30.0  GSM-2427-30          37.0              41.0   20.0  GSM-3741-20                                 www.igus-asean.com/G                                1-9           50-99         500-999
           25.0    +0.020    26.0  23.0  GSM-2526-23          38.0              42.0   25.0  GSM-3842-25                                                                                     10-24         100-199       1,000-2,499
           25.0    +0.072    26.0  25.0  GSM-2526-25          40.0              44.0   10.0  GSM-4044-10                                                                                     25-49         200-499       2,500-4,999
           25.0    +0.040    28.0  12.0  GSM-2528-12          40.0              44.0   16.5  GSM-4044-16                                                                                    No minimum order value.
           25.0    +0.124    28.0  15.0  GSM-2528-15          40.0              44.0   20.0  GSM-4044-20                                                                                    No low-quantity surcharges.
           25.0              28.0  20.0  GSM-2528-20          40.0              44.0   30.0  GSM-4044-30                                                                                    Free shipping within Germany for orders

          3)  After press-fit. Testing methods, page 61                                                          ASEAN 09/2023   ASEAN 09/2023                                              above €150.
          92    3D-CAD, finder and service life calculation ... www.igus-asean.com/G                                                                            Lubrication-free made easy ... from stock ... no minimum order quantity  93
