iglidur  G                                                                                                                                                                                                              iglidur  G
             ®
                                                                                                                                                                                                                                      ®
         +130°C                                                                                                                                                                                                                   +130°C
          80MPa                                                                                                                                                                                                                   80MPa

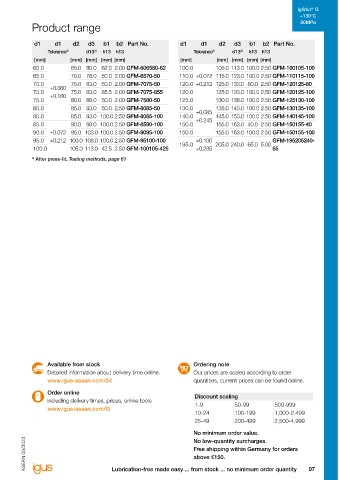

                      Bearing technology | Plain bearings | iglidur  G                                                              Product range
                                                                                                    ®
           d1     d1    d2    d3   b1   b2 Part No.           d1     d1    d2    d3   b1   b2 Part No.                              d1      d1    d2   d3    b1  b2 Part No.            d1     d1    d2    d3   b1   b2 Part No.
               Tolerance 3)  d13 3)  h13  h13                      Tolerance 3)  d13 3)  h13  h13                                        Tolerance 3)  d13 3)  h13  h13                      Tolerance 3)  d13 3)  h13  h13
           [mm]        [mm] [mm] [mm] [mm]                    [mm]         [mm] [mm] [mm] [mm]                                      [mm]         [mm] [mm] [mm] [mm]                    [mm]         [mm] [mm] [mm] [mm]
          16.0          18.0 24.0  9.0 1.00 GFM-1618-09       28.0         30.0 36.0 31.0 1.00 GFM-283036-31                        60.0         65.0 80.0 62.0 2.00 GFM-606580-62     100.0        105.0 113.0 100.0 2.50 GFM-100105-100
          16.0          18.0 24.0 12.0 1.00 GFM-1618-12       28.0         30.0 35.0 36.0 1.00 GFM-2830-36                          65.0         70.0 78.0 50.0 2.00 GFM-6570-50       110.0  +0.072  115.0 123.0 100.0 2.50 GFM-110115-100
          16.0          18.0 24.0 16.0 1.00 GFM-1618-16       28.0         30.0 35.0 48.0 1.00 GFM-2830-48                          70.0  +0.060   75.0 83.0 50.0 2.00 GFM-7075-50     120.0  +0.212 125.0 133.0 80.0 2.50 GFM-120125-80
          16.0          18.0 24.0 17.0 1.00 GFM-1618-17       28.0         32.0 39.0 20.0 2.00 GFM-283239-20                        70.0  +0.180  75.0 83.0 85.5 2.00 GFM-7075-855     120.0        125.0 133.0 100.0 2.50 GFM-120125-100
          16.0          18.0 24.0 21.0 1.00 GFM-1618-21       28.0         32.0 50.0 35.0 2.00 GFM-283250-35                        75.0         80.0 88.0 50.0 2.00 GFM-7580-50       125.0        130.0 138.0 100.0 2.50 GFM-125130-100
          17.0          19.0 25.0  9.0 1.00 GFM-1719-09       30.0         31.0 36.0 20.0 0.50 GFM-3031-20                          80.0         85.0 93.0 50.0 2.50 GFM-8085-50       130.0  +0.085   135.0 143.0 100.0 2.50 GFM-130135-100
          17.0          19.0 25.0 16.0 1.00 GFM-1719-16       30.0         31.0 35.0 30.0 0.50 GFM-3031-30                          80.0         85.0 93.0 100.0 2.50 GFM-8085-100     140.0  +0.245  145.0 153.0 100.0 2.50 GFM-140145-100
          17.0          19.0 25.0 25.0 1.00 GFM-1719-25       30.0  +0.040   32.0 37.0  4.0 1.00 GFM-3032-04                        85.0         90.0 98.0 100.0 2.50 GFM-8590-100     150.0        155.0 163.0 40.0 2.50 GFM-150155-40
          18.0  +0.032   20.0 26.0  4.0 1.00 GFM-1820-04      30.0  +0.124  32.0 37.0 12.0 1.00 GFM-3032-12                         90.0  +0.072  95.0 103.0 100.0 2.50 GFM-9095-100   150.0        155.0 163.0 100.0 2.50 GFM-150155-100
          18.0  +0.102  20.0 26.0  6.0 1.00 GFM-1820-06       30.0         32.0 37.0 17.5 1.00 GFM-3032-17                          95.0  +0.212 100.0 108.0 100.0 2.50 GFM-95100-100  195.0  +0.100   205.0 240.0 65.0 5.00  GFM-195205240-
          18.0         20.0 22.0   6.0 1.00 GFM-182022-06     30.0         32.0 37.0 22.0 1.00 GFM-3032-22                          100.0        105.0 113.0 42.5 2.50 GFM-100105-425        +0.285                     65
          18.0         20.0 26.0   9.0 1.00 GFM-1820-09       30.0         34.0 42.0  9.0 2.00 GFM-3034-09                          3)  After press-fit. Testing methods, page 61
          18.0         20.0 26.0 11.0 1.00 GFM-1820-11        30.0         34.0 40.0 10.0 2.00 GFM-303440-10
          18.0         20.0 26.0 12.0 1.00 GFM-1820-12        30.0         34.0 42.0 16.0 2.00 GFM-3034-16
          18.0         20.0 26.0 17.0 1.00 GFM-1820-17       30.0          34.0 42.0 20.0 2.00 GFM-3034-20
          18.0         20.0 26.0 22.0 1.00 GFM-1820-22       30.0          34.0 42.0 26.0 2.00 GFM-3034-26
          18.0         20.0 26.0 30.0 1.00 GFM-1820-30       30.0          34.0 42.0 37.0 2.00 GFM-3034-37
          18.0         20.0 26.0 32.0 1.00 GFM-1820-32       32.0          36.0 40.0 16.0 2.00 GFM-3236-16
          18.0         22.0 26.0 28.0 2.00 GFM-1822-28       32.0          36.0 40.0 26.0 2.00 GFM-3236-26
          20.0  +0.020   21.0 26.0  3.5 0.50 GFM-2021-035    34.0          38.0 50.0 35.0 2.00 GFM-343850-35
          20.0  +0.072  21.0 25.0 15.0 0.50 GFM-2021-15      35.0          39.0 47.0  5.8 2.00 GFM-3539-058
          20.0         21.0 25.0 20.0 0.50 GFM-2021-20       35.0          39.0 47.0  7.0 2.00 GFM-3539-07
          20.0         23.0 30.0   7.0 1.50 GFM-2023-07      35.0          39.0 47.0 12.0 2.00 GFM-3539-12
          20.0         23.0 26.0   7.0 1.50 GFM-202326-07    35.0          39.0 47.0 16.0 2.00 GFM-3539-16
          20.0         23.0 30.0 11.5 1.50 GFM-2023-11       35.0          39.0 47.0 26.0 2.00 GFM-3539-26
          20.0         23.0 28.0 15.0 1.50 GFM-202328-15     35.0          39.0 47.0 36.0 2.00 GFM-3539-36
          20.0         23.0 30.0 16.5 1.50 GFM-2023-16       38.0          42.0 54.0 10.0 2.00 GFM-3842-10
          20.0         23.0 29.0 20.0 1.50 GFM-202329-20     38.0          42.0 54.0 22.0 2.00 GFM-3842-22
          20.0  +0.040   23.0 30.0 21.5 1.50 GFM-2023-21     40.0          44.0 52.0  7.0 2.00 GFM-4044-07
          20.0  +0.124  23.0 26.0 21.5 1.50 GFM-202326-21    40.0  +0.050   44.0 52.0 14.0 2.00 GFM-4044-14
          22.0         24.0 30.0 25.0 1.00 GFM-2224-25       40.0  +0.150  44.0 52.0 20.0 2.00 GFM-4044-20
          22.0         25.0 29.0   4.5 1.50 GFM-222529-045   40.0          44.0 52.0 30.0 2.00 GFM-4044-30
          22.0         25.0 30.0 21.5 1.50 GFM-222530-215    40.0          44.0 52.0 40.0 2.00 GFM-4044-40
          22.0         25.0 30.0 25.0 1.50 GFM-222530-25     40.0          44.0 52.0 50.0 2.00 GFM-4044-50
          22.0         25.0 35.0 31.5 1.50 GFM-222535-315    40.0          46.0 50.0 20.0 2.00 GFM-4046-20
          24.0         27.0 32.0   7.0 1.50 GFM-2427-07      42.0          46.0 53.0 19.0 2.00 GFM-4246-19
          24.0         27.0 32.0 10.5 1.50 GFM-2427-10       45.0          50.0 58.0 25.0 2.00 GFM-4550-25
                +0.020                                       45.0          50.0 58.0 30.0 2.00 GFM-4550-30                               Available from stock                               Ordering note
          25.0         26.0 30.0 25.0 0.50 GFM-2526-25                                                                                   Detailed information about delivery time online.   Our prices are scaled according to order
                +0.072                                       45.0          50.0 58.0 50.0 2.00 GFM-4550-50
          25.0         27.0 32.0   7.0 1.00 GFM-2527-07      50.0          55.0 63.0  7.0 2.00 GFM-5055-07                               www.igus-asean.com/24                              quantities, current prices can be found online.
          25.0         27.0 32.0 48.0 1.00 GFM-2527-48       50.0          55.0 63.0 10.0 2.00 GFM-5055-10                               Order online
          25.0         28.0 30.0 10.0 1.50 GFM-252830-10     50.0          55.0 63.0 25.0 2.00 GFM-5055-25                               including delivery times, prices, online tools      Discount scaling
          25.0  +0.040   28.0 35.0 11.5 1.50 GFM-2528-11     50.0          55.0 63.0 40.0 2.00 GFM-5055-40                               www.igus-asean.com/G                                1-9           50-99         500-999
          25.0  +0.124  28.0 35.0 16.5 1.50 GFM-2528-16      50.0          55.0 63.0 50.0 2.00 GFM-5055-50                                                                                   10-24         100-199       1,000-2,499
          25.0         28.0 35.0 21.5 1.50 GFM-2528-21       60.0          65.0 73.0  7.0 2.00 GFM-6065-07                                                                                   25-49         200-499       2,500-4,999
          26.0         30.0 37.0 12.0 2.00 GFM-2630-12       60.0  +0.060  65.0 73.0 22.0 2.00 GFM-6065-22                                                                                  No minimum order value.
          27.0         30.0 38.0 20.0 1.50 GFM-2730-20       60.0  +0.180 65.0 73.0 30.0 2.00 GFM-6065-30                                                                                   No low-quantity surcharges.
          28.0         30.0 35.0 10.0 1.00 GFM-2830-10       60.0          65.0 73.0 50.0 2.00 GFM-6065-50                                                                                  Free shipping within Germany for orders

          3)  After press-fit. Testing methods, page 61                                                          ASEAN 09/2023   ASEAN 09/2023                                              above €150.
