drylin drylin shafts | Product range drylin shafts | Product range drylin
®
®
®
®
shafts shafts

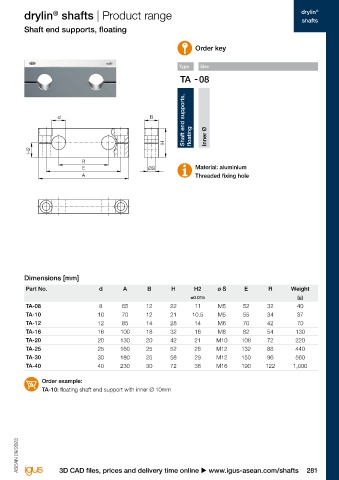

Carbon fibre shafts Shaft end supports, floating
Order key Order key

Type Size Options Type Size

Carbon fibre shaft Shaft length d B Shaft end supports,

CWM Metric Outer Ø [mm] H floating Inner Ø

H2
● Material: CFK composite R
● Roundness tolerance: ±0.05mm E øS Material: aluminium
● Diameter tolerance: -0.1mm A Threaded fixing hole
● Application temperature: Max. +80°C
● Colour: black

Dimensions [mm] Dimensions [mm]
Part No. Design Outer Ø Inner Ø Max. Weight Part No. d A B H H2 ø S E R Weight

-0.1 -0.1 length [g/m] ±0.015 [g]
CWM-12 Hollow shaft 12 9.0 2,000 70 TA-08 8 65 12 22 11 M5 52 32 40
CWM-16 Hollow shaft 16 12.5 2,000 120 TA-10 10 70 12 21 10.5 M5 55 34 37
CWM-20 Hollow shaft 20 16.0 2,000 170 TA-12 12 85 14 28 14 M6 70 42 70
CWM-30 Hollow shaft 30 26.0 2,000 270 TA-16 16 100 18 32 16 M8 82 54 130
TA-20 20 130 20 42 21 M10 108 72 220
TA-25 25 160 25 52 26 M12 132 88 440
TA-30 30 180 25 58 29 M12 150 96 560
TA-40 40 230 30 72 36 M16 190 122 1,000

Order example: Order example:
CWM-16-500: carbon fibre shaft, 16mm outer Ø, 500mm length TA-10: floating shaft end support with inner Ø 10mm

ASEAN 09/2023 ASEAN 09/2023

280 Online tools and more information u www.igus-asean.com/shafts 3D CAD files, prices and delivery time online u www.igus-asean.com/shafts 281
