drylin drylin shafts | Product range drylin shafts | Product range drylin
®
®
®
®
shafts shafts

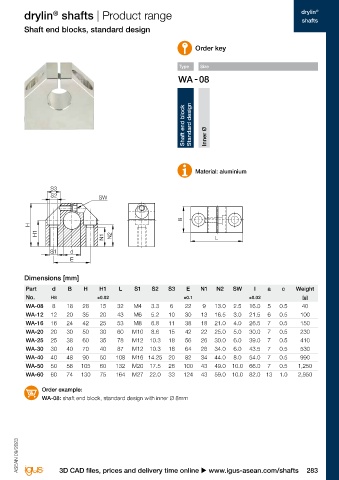

Shaft end supports, fixed Shaft end blocks, standard design
Order key Order key

Type Size Type Size

Shaft end support Inner Ø d B Shaft end block Standard design S3 Inner Ø SW

S2

Fixed

H
H
H2 Material: aluminium H1 N1 N2

R
Through fixing hole Material: aluminium
E øS S1 d
A S3 E
d B S2 SW

H B
H
H2
H1 N2
R N1 L
E øS
A S1 d
E

Dimensions [mm] Dimensions [mm]
Part No. d A B H H2 ø S E R Weight Part d B H H1 L S1 S2 S3 E N1 N2 SW l a c Weight
B
±0.015 [g] No. H8 ±0.02 ±0.1 ±0.02 [g]
TAF-08 8 65 12 23 12.5 5.5 52 32 40 WA-08 8 18 L 28 15 32 M4 3.3 6 22 9 13.0 2.5 16.0 5 0.5 40
TAF-10 10 70 12 25 14.0 5.5 55 34 45 WA-12 12 20 35 20 43 M6 5.2 10 30 13 16.5 3.0 21.5 6 0.5 100
TAF-12 12 85 14 32 18.0 6.6 70 42 90 WA-16 16 24 42 25 53 M8 6.8 11 38 18 21.0 4.0 26.5 7 0.5 150
TAF-16 16 100 18 36 20.0 9.0 82 54 140 WA-20 20 30 50 30 60 M10 8.6 15 42 22 25.0 5.0 30.0 7 0.5 230
TAF-20 20 130 20 46 25.0 11.0 108 72 250 WA-25 25 38 60 35 78 M12 10.3 18 56 26 30.0 6.0 39.0 7 0.5 410
TAF-25 25 160 25 56 30.0 13.5 132 88 470 WA-30 30 40 70 40 87 M12 10.3 18 64 26 34.0 6.0 43.5 7 0.5 530
TAF-30 30 180 25 64 35.0 13.5 150 96 620 WA-40 40 48 90 50 108 M16 14.25 20 82 34 44.0 8.0 54.0 7 0.5 990
TAF-40 40 230 30 80 44.0 17.5 190 122 1,150 WA-50 50 58 105 60 132 M20 17.5 26 100 43 49.0 10.0 66.0 7 0.5 1,250
WA-60 60 74 130 75 164 M27 22.0 33 124 43 59.0 10.0 82.0 13 1.0 2,950

Order example: Order example:
TAF-12: fixed shaft end support with 12mm inner Ø WA-08: shaft end block, standard design with inner Ø 8mm
