Page 289 - IGUS Linear

drylin drylin shafts | Product range drylin expert 2.0 | Online tools
®
®
®
shafts
Flange shaft support

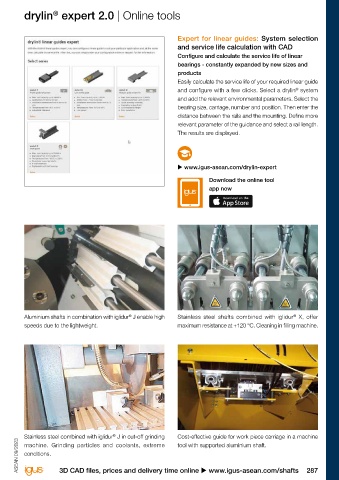

Expert for linear guides: System selection
Order key and service life calculation with CAD
Configure and calculate the service life of linear
Type Size bearings - constantly expanded by new sizes and
products
Easily calculate the service life of your required linear guide
and configure with a few clicks. Select a drylin system
®
and add the relevant environmental parameters. Select the
bearing size, carriage, number and position. Then enter the
Shaft end block distance between the rails and the mounting. Define more
relevant parameter of the guidance and select a rail length.
ød2 With flange The results are displayed.
ød2 Inner Ø
ød
ød

L
V u www.igus-asean.com/drylin-expert
L
V Material: aluminium
øs Download the online tool
øs
app now

SW
SW

E
E A
A

Dimensions [mm]
Part No. Ø d A L Ø d2 E Ø s V SW Weight
[g]
WAF-12 12 40 20 23.5 30 ± 0.12 5.5 12 3 60
WAF-16 16 50 20 27.5 35 ± 0.12 5.5 12 3 80 Aluminium shafts in combination with iglidur J enable high Stainless steel shafts combined with iglidur X, offer
®
®
WAF-20 20 50 23 33.5 38 ± 0.15 6.6 14 4 100 speeds due to the lightweight. maximum resistance at +120 °C. Cleaning in filling machine.
WAF-25 25 60 25 42.0 42 ± 0.15 6.6 16 5 150
WAF-30 30 70 30 49.5 54 ± 0.15 9.0 19 6 300
WAF-40 40 100 40 65.0 68 ± 0.25 11.0 26 8 700
WAF-50 50 100 50 75.0 75 ± 0.25 11.0 36 8 1,200

Order example:
WAF-16: flanged shaft end block with inner Ø 16mm

Stainless steel combined with iglidur J in cut-off grinding Cost-effective guide for work piece carriage in a machine
®
ASEAN 09/2023 ASEAN 09/2023 conditions.
machine. Grinding particles and coolants, extreme
tool with supported aluminium shaft.

286 Online tools and more information u www.igus-asean.com/shafts 3D CAD files, prices and delivery time online u www.igus-asean.com/shafts 287
