drylin drylin shafts | Product range drylin shafts | Product range drylin
®
®
®
®
shafts shafts

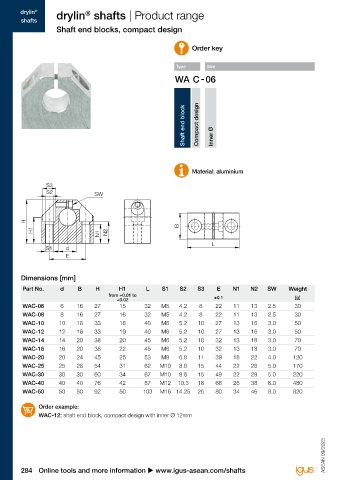

Shaft end blocks, compact design Shaft end blocks, narrow design
Order key Order key

Type Size Type Size

Shaft end block S3 Compact design Inner Ø SW Shaft end block Narrow design A1 Inner Ø SW
d

S2

H
S
H H1
H1 Material: aluminium N1 N2 Material: aluminium
V

S3 S1 d A1
S2 SW E d SW

H B
B
H1 N1 N2 S H1 H E

L A
S1 d V
E

Dimensions [mm] Dimensions [mm]
Part No. d B H H1 L S1 S2 S3 E N1 N2 SW Weight Part No. d H H1 A A1 B E S V SW Weight
B
from +0.01 to ±0.1 [g] ±0.02 [g]
+0.02 B
WAC-06 6 L 16 27 15 32 M5 4.2 8 22 11 13 2.5 30 WAS-08 8 27 15 32 16 10 25 4.5 5.0 2.5 12
WAC-08 8 16 27 16 32 M5 4.2 8 22 11 13 2.5 30 WAS-12 E 12 35 20 42 20 12 32 5.5 5.5 3.0 23
WAC-10 10 18 33 18 40 M6 5.2 10 27 13 16 3.0 50 WAS-16 A 16 42 25 50 26 16 40 5.5 6.5 3.0 35
WAC-12 12 18 33 19 40 M6 5.2 10 27 13 16 3.0 50 WAS-20 20 50 30 60 32 20 45 5.5 8.0 4.0 67
WAC-14 14 20 38 20 45 M6 5.2 10 32 13 18 3.0 70 WAS-25 25 58 35 74 38 25 60 6.6 9.0 4.0 140
WAC-16 16 20 38 22 45 M6 5.2 10 32 13 18 3.0 70 WAS-30 30 68 40 84 45 28 68 9.0 10.0 5.0 200
WAC-20 20 24 45 25 53 M8 6.8 11 39 18 22 4.0 120 WAS-40 40 86 50 108 56 32 86 11.0 12.0 6.0 480
WAC-25 25 28 54 31 62 M10 8.6 15 44 22 26 5.0 170
WAC-30 30 30 60 34 67 M10 8.6 15 49 22 29 5.0 220
WAC-40 40 40 76 42 87 M12 10.3 18 66 26 38 6.0 480
WAC-50 50 50 92 50 103 M16 14.25 20 80 34 46 8.0 820

Order example: Order example:
WAC-12: shaft end block, compact design with inner Ø 12mm WAS-12: shaft end block, narrow design with inner Ø 12mm

ASEAN 09/2023 ASEAN 09/2023

284 Online tools and more information u www.igus-asean.com/shafts 3D CAD files, prices and delivery time online u www.igus-asean.com/shafts 285
