drylin       drylin  shafts | Product range                                                                              drylin  expert 2.0 | Online tools
                                                                                                                                           ®
             ®
                               ®
        shafts

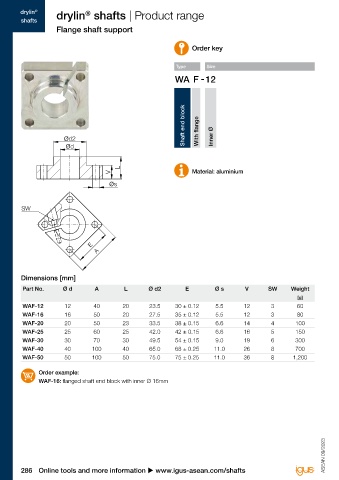

                     Flange shaft support
                                                                                                                                                                                      Expert for linear guides: System selection
                                                                    Order key                                                                                                         and service life calculation with CAD
                                                                                                                                                                                      Configure and calculate the service life of linear
                                                               Type       Size                                                                                                        bearings - constantly expanded by new sizes and
                                                                                                                                                                                      products
                                                                                                                                                                                      Easily calculate the service life of your required linear guide
                                                                                                                                                                                      and configure with a few clicks. Select a drylin  system
                                                                                                                                                                                                                                ®
                                                                                                                                                                                      and add the relevant environmental parameters. Select the
                                                                                                                                                                                      bearing size, carriage, number and position. Then enter the
                                                                  Shaft end block                                                                                                     distance between the rails and the mounting. Define more
                                                                                                                                                                                      relevant parameter of the guidance and select a rail length.
                        ød2                                            With flange                                                                                                    The results are displayed.
                        ød2                                                 Inner Ø
                        ød
                        ød

                                          L
                                       V                                                                                                                                              u www.igus-asean.com/drylin-expert
                                           L
                                        V                           Material: aluminium
                                       øs                                                                                                                                                        Download the online tool
                                       øs
                                                                                                                                                                                                 app now


         SW
        SW




                                 E
                                 E  A
                                   A


        Dimensions [mm]
         Part No.      Ø d        A          L       Ø d2         E          Ø s       V       SW      Weight
                                                                                                          [g]
         WAF-12         12        40        20       23.5      30 ± 0.12     5.5       12       3        60
         WAF-16         16        50        20       27.5      35 ± 0.12     5.5       12       3        80                      Aluminium shafts in combination with iglidur  J enable high   Stainless steel shafts combined with iglidur  X, offer
                                                                                                                                                                     ®
                                                                                                                                                                                                                               ®
         WAF-20         20        50        23       33.5      38 ± 0.15     6.6       14       4        100                     speeds due to the lightweight.                       maximum resistance at +120 °C. Cleaning in filling machine.
         WAF-25         25        60        25       42.0      42 ± 0.15     6.6       16       5        150
         WAF-30         30        70        30       49.5      54 ± 0.15     9.0       19       6        300
         WAF-40         40       100        40       65.0      68 ± 0.25    11.0       26       8        700
         WAF-50         50       100        50       75.0      75 ± 0.25    11.0       36       8       1,200

               Order example:
               WAF-16: flanged shaft end block with inner Ø 16mm










                                                                                                                                 Stainless steel combined with iglidur  J in cut-off grinding   Cost-effective guide for work piece carriage in a machine
                                                                                                                                                                ®
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023  conditions.
                                                                                                                                 machine. Grinding particles and coolants, extreme
                                                                                                                                                                                      tool with supported aluminium shaft.

        286 Online tools and more information u www.igus-asean.com/shafts                                                                    3D CAD files, prices and delivery time online u www.igus-asean.com/shafts              287
