drylin Q square linear guides | Advantages drylin Q square linear guides | Product overview
®
®

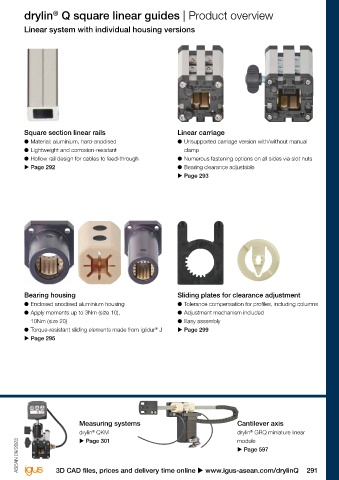

Torque-resistant, space-saving, light, unsupported installation Linear system with individual housing versions

Lubrication-free

square linear guides -
Hollow rail for supply lines
and magnetic tape
drylin Q
®

Linear movement with torque resistance,
completely lubrication-free. The drylin Q linear
®
Profile made from system offers the user maximum flexibility in
hard-anodised aluminium the design. Individual housing options such as Square section linear rails Linear carriage
solid plastic bearings or adjustable housings ● Material: aluminium, hard-anodised ● Unsupported carriage version with/without manual
with or without manual clamp are available.Due ● Lightweight and corrosion-resistant clamp
to the hollow design, the robust hard-anodised ● Hollow rail design for cables to feed-through ● Numerous fastening options on all sides via slot nuts
aluminium profile is very light and is suitable for u Page 292 ● Bearing clearance adjustable
Torque-resistant square geometry the installation of supply cables. Options for u Page 293
mounting are extensive, among others, using slot
nuts; installation size 20 can also be combined
with all 20/20 aluminium profiles.
End cap made ● 100 % lubrication-free
from solid plastic ● Torque-resistant
● Adjustable bearing clearance
Main body of the carriage ● Absorption of force from all directions
made from clear anodised ● High resistance to dirt
aluminium ● Low vibration and quiet
● Numerous mounting options

Sliding elements Typical application areas
made from high-performance ● Mechanical engineering
polymer iglidur J ● Woodworking industry Bearing housing Sliding plates for clearance adjustment
®
● Machine tools ● Enclosed anodised aluminium housing ● Tolerance compensation for profiles, including columns
● Handling ● Apply moments up to 3Nm (size 10), ● Adjustment mechanism included
10Nm (size 20) ● Easy assembly
Available from stock ● Torque-resistant sliding elements made from iglidur J u Page 299
®
Adjustable Detailed information about delivery time online. u Page 295
bearing clearance
Price breaks online
No minimum order value. No minimum order quantity

Max. +90°C
Min. -40°C

Technical details on floating bearings, 3 installation sizes (10/12/20)
2:1 Rule, tightening torque for drylin metallic Rail length: 1,500/3,000mm
®
screws u Page 50 Measuring systems Cantilever axis
drylin QKM drylin GRQ miniature linear
®
®
module
u Page 301
ASEAN 09/2023 ASEAN 09/2023 u Page 597
