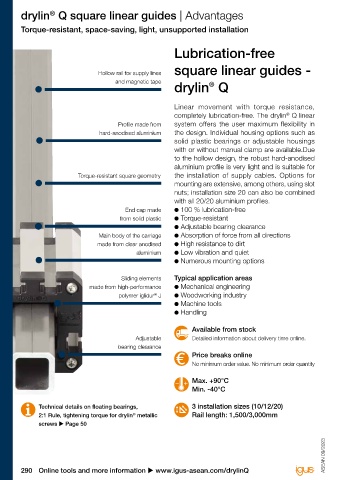

drylin  Q square linear guides | Advantages                                                                              drylin  Q square linear guides | Product overview
                   ®
                                                                                                                                           ®
        Torque-resistant, space-saving, light, unsupported installation                                                          Linear system with individual housing versions



                                                              Lubrication-free


                                                              square linear guides -
                                    Hollow rail for supply lines
                                          and magnetic tape
                                                              drylin  Q
                                                                          ®

                                                              Linear movement with torque resistance,
                                                              completely lubrication-free. The drylin  Q linear
                                                                                                      ®
                                           Profile made from    system offers the user maximum flexibility in
                                    hard-anodised aluminium   the design. Individual housing options such as                     Square section linear rails                          Linear carriage
                                                              solid plastic bearings or adjustable housings                      ● 	Material: aluminium, hard-anodised                ● 	 Unsupported carriage version with/without manual
                                                              with or without manual clamp are available.Due                     ● 	Lightweight and corrosion-resistant                  clamp
                                                              to the hollow design, the robust hard-anodised                     ● 	Hollow rail design for cables to feed-through     ● 	 Numerous fastening options on all sides via slot nuts
                                                              aluminium profile is very light and is suitable for                u Page 292                                           ● 	Bearing clearance adjustable
                            Torque-resistant square geometry  the installation of supply cables. Options for                                                                          u Page 293
                                                              mounting are extensive, among others, using slot
                                                              nuts; installation size 20 can also be combined
                                                              with all 20/20 aluminium profiles.
                                             End cap made     ● 	 100 % lubrication-free
                                           from solid plastic  ● 	Torque-resistant
                                                              ● 	Adjustable bearing clearance
                                    Main body of the carriage    ● 	Absorption of force from all directions
                                   made from clear anodised   ● 	High resistance to dirt
                                                 aluminium    ● 	Low vibration and quiet
                                                              ● 	Numerous mounting options

                                            Sliding elements    Typical application areas
                                made from high-performance    ● 	Mechanical engineering
                                           polymer iglidur  J  ● 	Woodworking industry                                           Bearing housing                                      Sliding plates for clearance adjustment
                                                       ®
                                                              ● 	Machine tools                                                   ● 	Enclosed anodised aluminium housing               ● 	Tolerance compensation for profiles, including columns
                                                              ● 	Handling                                                        ● 	Apply moments up to 3Nm (size 10),                ● 	Adjustment mechanism included
                                                                                                                                   10Nm (size 20)                                     ● 	Easy assembly
                                                                    Available from stock                                         ● 	Torque-resistant sliding elements made from iglidur  J  u Page 299
                                                                                                                                                                               ®
                                                 Adjustable         Detailed information about delivery time online.             u Page 295
                                          bearing clearance
                                                                    Price breaks online
                                                                    No minimum order value. No minimum order quantity

                                                                    Max. +90°C
                                                                    Min. -40°C


               Technical details on floating bearings,              3 installation sizes (10/12/20)
               2:1 Rule, tightening torque for drylin  metallic     Rail length: 1,500/3,000mm
                                                ®
               screws u Page 50                                                                                                                     Measuring systems                                      Cantilever axis
                                                                                                                                                    drylin  QKM                                            drylin  GRQ miniature linear
                                                                                                                                                        ®
                                                                                                                                                                                                                ®
                                                                                                                                                                                                           module
                                                                                                                                                    u Page 301
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023                                                            u Page 597
