trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Single start lead screw nuts with flange (form F)

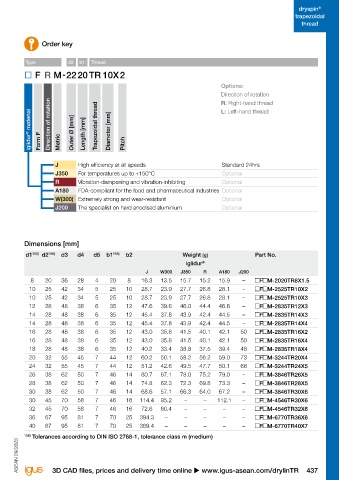

Order key

Type d2 b1 Thread

Options:
Direction of rotation
iglidur J iglidur W300 iglidur J350 iglidur R iglidur A180 iglidur J200 R: Right-hand thread
®
®
®
®
®
®
L: Left-hand thread
iglidur ® material Form F Direction of rotation Metric Outer Ø [mm] Length [mm] Trapezoidal thread Diameter [mm] Pitch

J High efficiency at all speeds Standard 24hrs
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
W(300) Extremely strong and wear-resistant Optional
J200 The specialist on hard anodised aluminium Optional

Technical data Dimensions [mm]

Thread Direction of rotation Effective Max. stat. axial F [N] d1 156) d2 156) d3 d4 d5 b1 156) b2 Weight [g] Part No.
Right Left supporting surface iglidur ® iglidur ®
[mm ] J W300 J350 R A180 J200 J W300 J350 R A180 J200
2
Tr8x1.5 ● ● 228 911 1,139 683 456 797 – 8 20 36 28 4 20 8 16.3 13.5 15.7 15.2 15.9 – F M-2020TR8X1.5
Tr10x2 ● ● 353 1,414 1,767 1,060 707 1,237 – 10 25 42 34 5 25 10 28.7 23.9 27.7 26.8 28.1 – F M-2525TR10X2
Tr10x3 ● ● 334 1,335 1,669 1,001 668 1,168 – 10 25 42 34 5 25 10 28.7 23.9 27.7 26.8 28.1 – F M-2525TR10X3
Tr12x3 ● ● 577 2,309 2,886 1,732 1,155 2.020 – 12 28 48 38 6 35 12 47.6 39.6 46.0 44.4 46.6 – F M-2835TR12X3
Tr14x3 ● ● 687 2,749 3,436 2,062 1.374 2,405 – 14 28 48 38 6 35 12 45.4 37.8 43.9 42.4 44.5 – F M-2835TR14X3
Tr14x4 ● ● 660 2,639 3,299 1,979 1,319 2,309 – 14 28 48 38 6 35 12 45.4 37.8 43.9 42.4 44.5 – F M-2835TR14X4
Tr16x2 ● ● 825 3,299 4,123 2,474 1,649 2,886 1,650 16 28 48 38 6 35 12 43.0 35.8 41.5 40.1 42.1 50 F M-2835TR16X2
Tr16x4 ● ● 770 3,079 3,848 2,309 1,539 2,694 1,540 16 28 48 38 6 35 12 43.0 35.8 41.5 40.1 42.1 50 F M-2835TR16X4
Tr18x4 ● ● 880 3,519 4,398 2,639 1,759 3,079 1,760 18 28 48 38 6 35 12 40.2 33.4 38.8 37.5 39.4 48 F M-2835TR18X4
Tr20x4 ● ● 1,244 4,976 6,220 3,732 2,488 4,354 2,488 20 32 55 45 7 44 12 60.2 50.1 58.2 56.2 59.0 73 F M-3244TR20X4
Tr24x5 ● ● 1,486 5,944 7,430 4,458 2,972 5,201 2,972 24 32 55 45 7 44 12 51.2 42.6 49.5 47.7 50.1 66 F M-3244TR24X5
Tr26x5 ● ● 1,698 6,320 43) 6,320 43) 6,320 43) 6,320 43) 6,320 43) – 26 38 62 50 7 46 14 80.7 67.1 78.0 75.2 79.0 – F M-3846TR26X5
Tr28x5 ● ● 1,843 4,560 43) 4,560 43) 4,560 43) 4,560 43) 4,560 43) – 28 38 62 50 7 46 14 74.8 62.3 72.3 69.8 73.3 – F M-3846TR28X5
Tr30x6 ● ● 1,951 3,576 43) 3,576 43) 3,576 43) 3,576 43) 3,576 43) – 30 38 62 50 7 46 14 68.6 57.1 66.3 64.0 67.2 – F M-3846TR30X6
Tr30x6 ● ● 1,951 7,804 9,755 – – 6,828 – 30 45 70 58 7 46 16 114.4 95.2 – – 112.1 – F M-4546TR30X6
Tr32x6 ● ● 2,095 8,382 10,477 – – – – 32 45 70 58 7 46 16 72.6 60.4 – – – – F M-4546TR32X6
Tr36x6 ● ● 3,629 14,514 – – – – – 36 67 95 81 7 70 25 394.3 – – – – – F M-6770TR36X6
Tr40x7 ● ● 4,013 16,054 – – – – – 40 67 95 81 7 70 25 369.4 – – – – – F M-6770TR40X7
43) Reduced load due to nut geometry 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
