dryspin dryspin
®
®
®
trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread

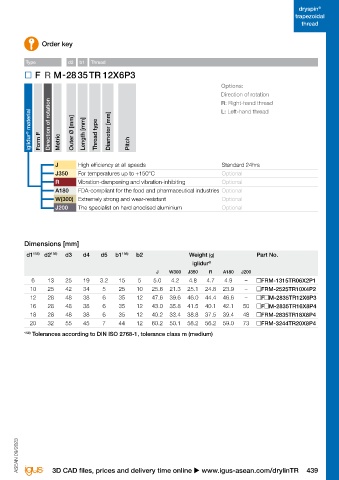

Multi start lead screw nuts with flange (form F)
Order key

Type d2 b1 Thread

Options:
Direction of rotation
iglidur J iglidur W300 iglidur J350 iglidur R iglidur A180 iglidur J200 R: Right-hand thread
®
®
®
®
®
®
L: Left-hand thread
iglidur ® material Form F Direction of rotation Metric Outer Ø [mm] Length [mm] Thread type Diameter [mm] Pitch

J High efficiency at all speeds Standard 24hrs
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
W(300) Extremely strong and wear-resistant Optional
J200 The specialist on hard anodised aluminium Optional

Technical data Dimensions [mm]

Thread Direction of rotation Effective Max. stat. axial F [N] d1 156) d2 156) d3 d4 d5 b1 156) b2 Weight [g] Part No.
Right Left supporting surface iglidur ® iglidur ®
[mm ] J W300 J350 R A180 J200 J W300 J350 R A180 J200
2
Tr06x2P1 ● – 130 441 551 1,124 936 386 – 6 13 25 19 3.2 15 5 5.0 4.2 4.8 4.7 4.9 – FRM-1315TR06X2P1
Tr10x4P2 ● – 353 1,202 1,502 1,051 3,064 2,552 – 10 25 42 34 5 25 10 25.6 21.3 25.1 24.8 23.9 – FRM-2525TR10X4P2
Tr12x6P3 ● ● 577 1,963 2,453 5,005 4,171 1,717 – 12 28 48 38 6 35 12 47.6 39.6 46.0 44.4 46.6 – F M-2835TR12X6P3
Tr16x8P4 ● ● 770 2,617 3,271 6,673 5,561 2,290 1,540 16 28 48 38 6 35 12 43.0 35.8 41.5 40.1 42.1 50 F M-2835TR16X8P4
Tr18x8P4 ● – 880 2,991 3,738 7,627 6,355 2,617 1,760 18 28 48 38 6 35 12 40.2 33.4 38.8 37.5 39.4 48 FRM-2835TR18X8P4
Tr20x8P4 ● – 1,244 4,230 5,287 10,786 8,988 3,701 2,488 20 32 55 45 7 44 12 60.2 50.1 58.2 56.2 59.0 73 FRM-3244TR20X8P4
Reduced axial load compared to single start threads due to nut geometry. 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)

Definition: Multi start trapezoidal lead screw
Example 8P4 pitch

P4 pitch: Distance to the next thread pitch 4mm
Pitch 8: Pitch 8mm ASEAN 09/2023 ASEAN 09/2023

438 Online tools and more information u www.igus-asean.com/drylinTR 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinTR 439
