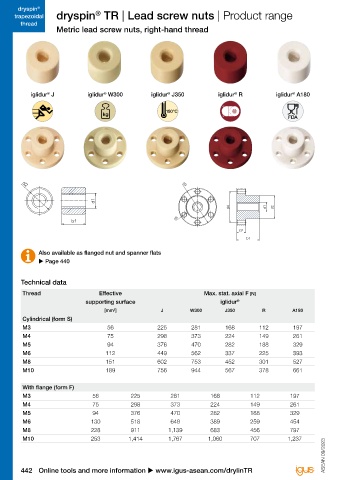

trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Metric lead screw nuts, right-hand thread
Order key

Type d2 b1 Thread

Options:
®
®
®
iglidur J iglidur W300 iglidur J350 iglidur R iglidur A180 Form S: Cylindrical
®
®
Form F: With flange
iglidur ® material Form S Direction of rotation Metric Outer Ø [mm] Length [mm] Diameter

J High efficiency at all speeds Standard
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
W(300) Extremely strong and wear-resistant Optional

Also available as flanged nut and spanner flats
u Page 440

Technical data Dimensions [mm]

Thread Effective Max. stat. axial F [N] d1 156) d2 156) b1 156) Weight [g] Part No.
supporting surface iglidur ® iglidur ®
[mm ] J W300 J350 R A180 J W300 J350 R A180
2
Cylindrical (form S)
M3 56 225 281 168 112 197 3 14 13 2.8 2.4 2.7 2.7 2.8 SRM-1413M3
M4 75 298 373 224 149 261 4 14 13 2.7 2.3 2.6 2.6 2.7 SRM-1413M4
M5 94 376 470 282 188 329 5 14 13 2.6 2.2 2.5 2.4 2.5 SRM-1413M5
M6 112 449 562 337 225 393 6 14 13 2.4 2.0 2.4 2.3 2.4 SRM-1413M6
M8 151 602 753 452 301 527 8 20 18 7.08 5.89 6.69 6.60 6.94 SRM-2018M8
M10 189 756 944 567 378 661 10 22 20 8.99 7.48 8.69 8.38 8.81 SRM-2220M10

With flange (form F) d1 d2 d3 d4 d5 b1 b2
M3 56 225 281 168 112 197 3 9 18 15.2 3.2 13 3 1.9 1.6 1.9 1.8 1.9 FRM-0913M3
M4 75 298 373 224 149 261 4 9 18 15.2 3.2 13 3 1.8 1.5 1.8 1.7 1.8 FRM-0913M4
M5 94 376 470 282 188 329 5 9 18 15.2 3.2 13 3 1.7 1.4 1.6 1.6 1.7 FRM-0913M5
M6 130 518 648 389 259 454 6 13 25 19.0 3.2 15 5 4.7 3.9 4.5 4.4 4.6 FRM-1315M6
M8 228 911 1,139 683 456 797 8 20 36 28.0 4.0 20 8 16.25 13.53 15.93 15.71 15.17 FRM-2020M8
M10 253 1,414 1,767 1,060 707 1,237 10 25 42 34.0 5.0 25 10 28.69 23.88 28.11 27.73 26.76 FRM-2525M10
ASEAN 09/2023 ASEAN 09/2023 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
