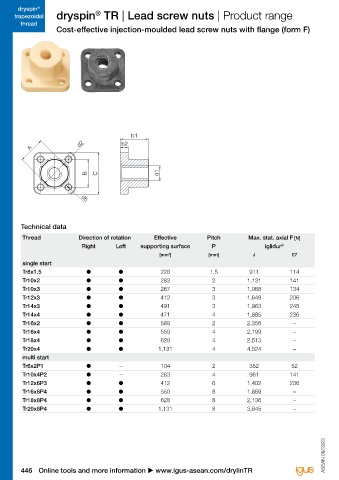

trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Cost-effective injection-moulded lead screw nuts with flange (form F)
Order key

Type d2 b1 Thread

Options:
Direction of rotation
R: Right-hand thread
L: Left-hand thread
iglidur ® material Form F Direction of rotation Metric Thread: cut Type Thread type Diameter [mm] Pitch

J High efficiency at all speeds Standard 24hrs
E7 For high speeds and low loads Optional

Injection moulded lead screw nut blank incl.
machined cut thread

Technical data Dimensions [mm]
Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) A B C d5 b1 156) b2 Weight [g] Part No.
Right Left supporting surface P iglidur ® iglidur ®
[mm ] [mm] J E7 J E7
2
single start
Tr8x1.5 ● ● 228 1.5 911 114 8 20 19.0 20 30 4.2 20 5.5 11.6 8.3 F M-C-01-TR8X1.5
Tr10x2 ● ● 283 2 1,131 141 10 20 19.0 20 30 4.2 20 5.5 11.8 8.3 F M-C-01-TR10X2
Tr10x3 ● ● 267 3 1,068 134 10 20 19.0 20 30 4.2 20 5.5 11.8 8.3 F M-C-01-TR10X3
Tr12x3 ● ● 412 3 1,649 206 12 24 22.6 24 34 5.0 25 6.0 19.3 13.6 F M-C-01-TR12X3
Tr14x3 ● ● 491 3 1,963 245 14 24 22.6 24 34 5.0 25 6.0 19.3 13.6 F M-C-01-TR14X3
Tr14x4 ● ● 471 4 1,885 236 14 24 22.6 24 34 5.0 25 6.0 19.3 13.6 F M-C-01-TR14X4
Tr16x2 ● ● 589 2 2,356 – 16 28 25.5 27 38 6.0 25 6.5 24.1 – JF M-C-01-TR16X2
Tr16x4 ● ● 550 4 2,199 – 16 28 25.5 27 38 6.0 25 6.5 24.1 – JF M-C-01-TR16X4
Tr18x4 ● ● 628 4 2,513 – 18 28 25.5 27 38 6.0 25 6.5 22.7 – JF M-C-01-TR18X4
Tr20x4 ● ● 1,131 4 4,524 – 20 32 29.0 30 42 6.0 25 8.0 30.4 – JF M-C-01-TR20X4 New
multi start
Tr6x2P1 ● – 104 2 352 52 6 12 11.0 12 18 3.2 12 4.0 2.5 1.8 FRM-C-01-TR6X2P1 New
Tr10x4P2 ● – 283 4 961 141 10 20 19.0 20 30 4.2 20 5.5 11.8 8.3 FRM-C-01-TR10X4P2
Tr12x6P3 ● ● 412 6 1,402 206 12 24 22.6 24 34 5.0 25 6.0 19.3 13.6 FRM-C-01-TR12X6P3
Tr16x8P4 ● ● 550 8 1,869 – 16 28 25.5 27 38 6.0 25 6.5 24.1 – JFRM-C-01-TR16X8P4
Tr18x8P4 ● ● 628 8 2,136 – 18 28 25.5 27 38 6.0 25 6.5 22.7 – JFRM-C-01-TR18X8P4
Tr20x8P4 ● ● 1,131 8 3,845 – 20 32 29.0 30 42 6.0 25 8.0 30.7 – JFRM-C-01-TR20X8P4 New
156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
