trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Cost-effective metric injection-moulded lead screw nuts

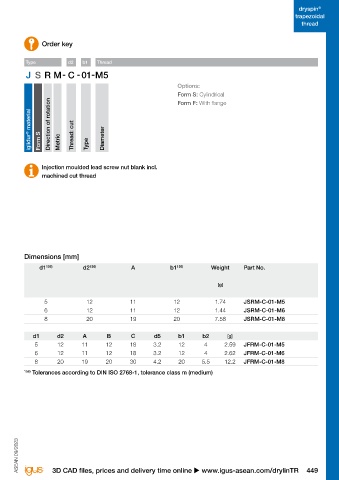

Order key
Cylindrical (form S) With flange (form F)

Type d2 b1 Thread

Options:
Form S: Cylindrical
Form F: With flange
iglidur ® material Form S Direction of rotation Metric Thread: cut Type Diameter

Injection moulded lead screw nut blank incl.
machined cut thread

Technical data Dimensions [mm]

Thread Effective Max. static d1 156) d2 156) A b1 156) Weight Part No.
supporting surface axial F
[mm ] [N] [g]
2
Cylindrical (form S)
M5 94 376 5 12 11 12 1.74 JSRM-C-01-M5
M6 112 449 6 12 11 12 1.44 JSRM-C-01-M6
M8 151 602 8 20 19 20 7.58 JSRM-C-01-M8

With flange (form F) d1 d2 A B C d5 b1 b2 [g]
M5 90 358 5 12 11 12 18 3.2 12 4 2.59 JFRM-C-01-M5
M6 104 415 6 12 11 12 18 3.2 12 4 2.62 JFRM-C-01-M6
M8 232 927 8 20 19 20 30 4.2 20 5.5 12.2 JFRM-C-01-M8

156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
