dryspin dryspin
®
®
®
trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Injection-moulded lead screw nuts

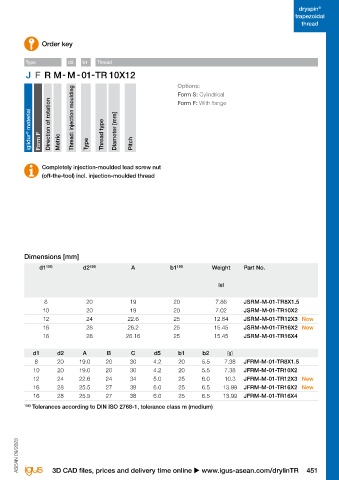

Order key
Cylindrical (form S) With flange (form F)

Type d2 b1 Thread

Options:
Form S: Cylindrical
Form F: With flange
iglidur ® material Form F Direction of rotation Metric Thread: injection moulding Type Thread type Diameter [mm] Pitch

Completely injection-moulded lead screw nut
(off-the-tool) incl. injection-moulded thread

Technical data Dimensions [mm]

Thread Direction of rotation Effective Pitch Max. static d1 156) d2 156) A b1 156) Weight Part No.
Right Left supporting surface P axial F
[mm ] [mm] [N] [g]
2
Cylindrical (form S)
Tr8x1.5 ● – 228 1.5 500 43) 8 20 19 20 7.86 JSRM-M-01-TR8X1.5
Tr10x2 ● – 283 2 1,131 10 20 19 20 7.02 JSRM-M-01-TR10X2
Tr12x3 ● – 412 3 1,649 12 24 22.6 25 12.64 JSRM-M-01-TR12X3 New
Tr16x2 ● – 589 2 2,356 16 28 26.2 25 15.45 JSRM-M-01-TR16X2 New
Tr16x4 ● – 550 4 2,199 16 28 26.16 25 15.45 JSRM-M-01-TR16X4

With flange (form F) d1 d2 A B C d5 b1 b2 [g]
Tr8x1.5 ● – 118 1.5 471 8 20 19.0 20 30 4.2 20 5.5 7.38 JFRM-M-01-TR8X1.5
Tr10x2 ● – 228 2 911 10 20 19.0 20 30 4.2 20 5.5 7.38 JFRM-M-01-TR10X2
Tr12x3 ● – 412 3 1,649 12 24 22.6 24 34 5.0 25 6.0 10.3 JFRM-M-01-TR12X3 New
Tr16x2 ● – 589 2 2,356 16 28 25.5 27 38 6.0 25 6.5 13.99 JFRM-M-01-TR16X2 New
Tr16x4 ● – 353 4 1,414 16 28 25.5 27 38 6.0 25 6.5 13.99 JFRM-M-01-TR16X4
43) Reduced load due to nut geometry 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
