dryspin                                                                                                                                                                                                                   dryspin
              ®
                                                                                                                                                                                                                                        ®
                                   ®

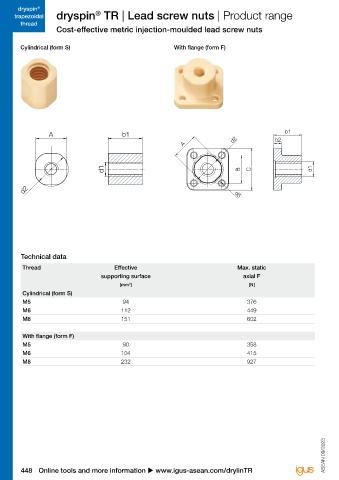

      trapezoidal    dryspin  TR | Lead screw nuts | Product range                                                                                                                                                              trapezoidal
        thread                                                                                                                                                                                                                    thread
                     Cost-effective metric injection-moulded lead screw nuts
                                                                                                                                       Order key
        Cylindrical (form S)                                  With flange (form F)

                                                                                                                                 Type           d2   b1   Thread



                                                                                                                                                                                      Options:
                                                                                                                                                                                      Form S: Cylindrical
                                                                                                                                                                                      Form F: With flange
                                                                                                                                   iglidur ®  material  Form S  Direction of rotation  Metric  Thread: cut  Type  Diameter










                                                                                                                                       Injection moulded lead screw nut blank incl.
                                                                                                                                       machined cut thread















        Technical data                                                                                                           Dimensions [mm]

         Thread                          Effective                                  Max. static                                       d1 156)        d2 156)          A             b1 156)       Weight      Part No.
                                    supporting surface                                axial F
                                           [mm ]                                        [N]                                                                                                         [g]
                                              2
         Cylindrical (form S)
         M5                                 94                                          376                                             5             12              11             12            1.74       JSRM-C-01-M5
         M6                                 112                                         449                                             6             12              11             12             1.44      JSRM-C-01-M6
         M8                                 151                                         602                                             8             20              19             20             7.58      JSRM-C-01-M8


         With flange (form F)                                                                                                       d1      d2       A        B       C       d5       b1      b2       [g]
         M5                                 90                                          358                                         5       12       11      12       18      3.2      12       4      2.59   JFRM-C-01-M5
         M6                                 104                                         415                                         6       12       11      12       18      3.2      12       4      2.62   JFRM-C-01-M6
         M8                                 232                                         927                                         8       20       19      20       30      4.2      20      5.5     12.2   JFRM-C-01-M8

                                                                                                                                 156)  Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
