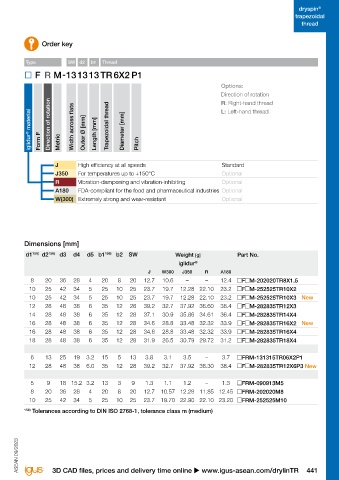

dryspin dryspin
®
®
®
trapezoidal dryspin TR | Lead screw nuts | Product range trapezoidal
thread thread
Lead screw nuts with spanner flat and flange
Order key

Type SW d2 b1 Thread

Options:
iglidur J iglidur W300 iglidur J350 iglidur R iglidur A180 Direction of rotation
®
®
®
®
®
R: Right-hand thread
L: Left-hand thread
iglidur ® material Form F Direction of rotation Metric Width across flats Outer Ø [mm] Length [mm] Trapezoidal thread Diameter [mm] Pitch

J High efficiency at all speeds Standard
J350 For temperatures up to +150°C Optional
R Vibration-dampening and vibration-inhibiting Optional
A180 FDA-compliant for the food and pharmaceutical industries Optional
W(300) Extremely strong and wear-resistant Optional

Technical data Dimensions [mm]

Thread Direction of rotation Effective Pitch Max. stat. axial F [N] d1 156) d2 156) d3 d4 d5 b1 156) b2 SW Weight [g] Part No.
Right Left support surface P iglidur ® iglidur ®
Single start [mm ] [mm] J W300 J350 R A180 J W300 J350 R A180
2
Tr8x1.5 ● ● 228 1.5 911 1,139 683 456 797 8 20 36 28 4 20 8 20 12.7 10.6 – – 12.4 F M-202020TR8X1.5
Tr10x2 ● ● 353 2 1,414 1,767 1,060 707 1,237 10 25 42 34 5 25 10 25 23.7 19.7 12.28 22.10 23.2 F M-252525TR10X2
Tr10x3 ● ● 334 3 1,335 1,669 1,001 668 1,168 10 25 42 34 5 25 10 25 23.7 19.7 12.28 22.10 23.2 F M-252525TR10X3 New
Tr12x3 ● ● 577 3 2,309 2,886 1,732 1,155 2,020 12 28 48 38 6 35 12 28 39.2 32.7 37.92 36.60 38.4 F M-282835TR12X3
Tr14x4 ● ● 660 4 2,639 3,299 1,979 1,319 2,309 14 28 48 38 6 35 12 28 37.1 30.9 35.86 34.61 36.4 F M-282835TR14X4
Tr16x2 ● ● 825 2 3,299 4,213 2,474 1,649 2,886 16 28 48 38 6 35 12 28 34.6 28.8 33.48 32.32 33.9 F M-282835TR16X2 New
Tr16x4 ● ● 770 4 3,079 3,848 2,309 1,539 2,694 16 28 48 38 6 35 12 28 34.6 28.8 33.48 32.32 33.9 F M-282835TR16X4
Tr18x4 ● ● 880 4 3,519 4,398 2,639 1,759 3,079 18 28 48 38 6 35 12 28 31.9 26.5 30.79 29.72 31.2 F M-282835TR18X4
Multi start
Tr06x2P1 ● – 130 6 441 551 330 220 386 6 13 25 19 3.2 15 5 13 3.8 3.1 3.5 – 3.7 FRM-131315TR06X2P1
Tr12x6P3 ● ● 577 6 1,963 2,453 5,005 4,171 1,717 12 28 48 38 6.0 35 12 28 39.2 32.7 37.92 36.30 38.4 F M-282835TR12X6P3 New
Metric
M5 ● – 101 0.8 75 43) 75 43) 75 43) 75 43) 75 43) 5 9 18 15.2 3.2 13 3 9 1.3 1.1 1.2 – 1.3 FRM-090913M5
M8 ● – 249 1.25 994 1,243 746 497 870 8 20 36 28 4 20 8 20 12.7 10.57 12.28 11.85 12.45 FRM-202020M8
M10 ● – 390 1.5 1,559 1,949 1,169 780 1,364 10 25 42 34 5 25 10 25 23.7 19.70 22.90 22.10 23.20 FRM-252525M10
43) Reduced load due to nut geometry 156) Tolerances according to DIN ISO 2768-1, tolerance class m (medium)
