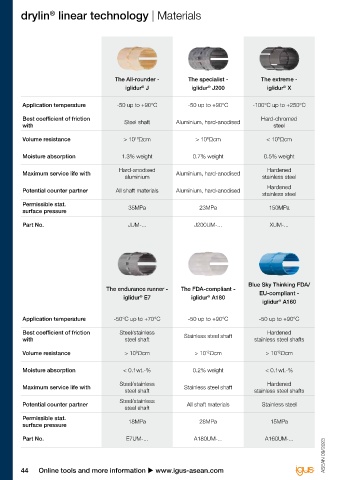

drylin  linear technology | Materials                                                                                    drylin  linear technology | Materials
                   ®
                                                                                                                                           ®


                                                                                                                                 igus  provides various materials for sliding elements and
                                                                                                                                    ®
                                                                                                                                 mating partners for drylin  linear systems. Extensive lab tests
                                                                                                                                                     ®
                                                                                                                                 and years of field experience have shown that iglidur  J,
                                                                                                                                                                               ®
                                                                                                                                 J 200 and X are the ideal materials for most linear applications
                                                                                                                                 due to their favourable wear and friction properties.
                                         The All-rounder -         The specialist -          The extreme -                                                                              Coefficient of friction
                                             iglidur  J             iglidur  J200              iglidur  X
                                                   ®
                                                                          ®
                                                                                                     ®
                                                                                                                                 Ideal material combinations
         Application temperature          -50 up to +90°C          -50 up to +90°C        -100°C up to +250°C                    iglidur  J:
                                                                                                                                      ®
                                                                                                                                                                                              AWM      SWM     EWM     EEWM      hv
         Best coefficient of friction        Steel shaft       Aluminium, hard-anodised      Hard-chromed                        ● 	Maintenance-free dry operation                           J200        J       X
         with                                                                                    steel                           ● 	Low coefficient of friction with all materials
                                                                                                                                 ● 	Excellent wear resistance
         Volume resistance                  > 10 Ωcm                  > 10 Ωcm                 < 10 Ωcm                          ● 	Low moisture absorption
                                                                                                   5
                                                                          8
                                                13
                                                                                                                                 u More about iglidur  J
                                                                                                                                                  ®
         Moisture absorption                1.3% weight              0.7% weight              0.5% weight                          u www.igus-asean.com/J-material
                                           Hard-anodised                                       Hardened
         Maximum service life with                             Aluminium, hard-anodised                                               ®
                                             aluminium                                       stainless steel                     iglidur  J200:
                                                                                               Hardened                          ● 	Completely maintenance-free
         Potential counter partner        All shaft materials  Aluminium, hard-anodised
                                                                                             stainless steel                     ● 	Extremely long service life on hard-anodised aluminium
         Permissible stat.                    35MPa                    23MPa                   150MPa                            ● 	Low coefficient of friction with anodised aluminium  Wear
         surface pressure                                                                                                        ● 	Excellent wear resistance with anodised aluminium         AWM      SWM     EWM     EEWM      hv
                                                                                                                                 u More about iglidur  J200
                                                                                                                                                 ®
         Part No.                             JUM-...                J200UM-...                 XUM-...                            u www.igus-asean.com/J200-material                        J200        J       X

                                                                                                                                 iglidur  X:
                                                                                                                                      ®
                                                                                                                                 ● 	Completely maintenance-free
                                                                                                                                 ● 	Temperature-resistant from -100°C to +250°C
                                                                                                                                 ● 	Continuous operation
                                                                                                                                 ● 	Universal chemical resistance
                                                                                        Blue Sky Thinking FDA/                   ● 	Low moisture absorption
                                      The endurance runner -     The FDA-compliant -                                             u More about iglidur  X
                                                                                                                                                  ®
                                            iglidur  E7             iglidur  A180           EU-compliant -                         u www.igus-asean.com/X-material                      Service life
                                                  ®
                                                                          ®
                                                                                             iglidur  A160
                                                                                                   ®
         Application temperature         -50°C up to +70°C         -50 up to +90°C          -50 up to +90°C                      Other possible materials:                                   SWM    SWMH    EWM   EEWM   EWMS   EWMR
                                                                                                                                 iglidur  A180, FDA-compliant                                1.1213   1.1213   1.1415  1.4034   1.4571   1.4301
                                                                                                                                      ®
                                                                                                                                                                                              (AISI
                                                                                                                                                                                                                                 (AISI
                                                                                                                                                                                                                          (AISI
                                                                                                                                                                                                                   (AISI
                                                                                                                                                                                                     HV
         Best coefficient of friction      Steel/stainless        Stainless steel shaft        Hardened                          u More about iglidur  A180                                  1055)                 420)   316Ti)  304)
                                                                                                                                                 ®
         with                                steel shaft                                  stainless steel shafts
                                                                                                                                   u www.igus-asean.com/A180-material                        E7        J
                                                                                                                                      ®
         Volume resistance                   > 10 Ωcm                > 10 Ωcm                 > 10 Ωcm                           iglidur  A160, Compliant with Regulation (EU)
                                                                                                  12
                                                 9
                                                                         12
                                                                                                                                 No. 10/2011 and FDA guidelines
                                                                                                                                                 ®
         Moisture absorption                < 0.1wt.-%               0.2% weight              < 0.1wt.-%                         u More about iglidur  A160
                                                                                                                                   u www.igus-asean.com/A160-material
                                           Steel/stainless                                     Hardened                          iglidur  E7, the endurance runner all-rounder
                                                                                                                                      ®
         Maximum service life with                                Stainless steel shaft
                                             steel shaft                                  stainless steel shafts                 u More about iglidur  E7
                                                                                                                                                  ®
                                           Steel/stainless                                                                         u www.igus-asean.com/E7-material
         Potential counter partner                                 All shaft materials       Stainless steel
                                             steel shaft
         Permissible stat.                    18MPa                    28MPa                    15MPa
         surface pressure
         Part No.                            E7UM-...                A180UM-...               A160UM-...
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023
        44     Online tools and more information u www.igus-asean.com                                                                                3D CAD files, prices and delivery time online u www.igus-asean.com              45
