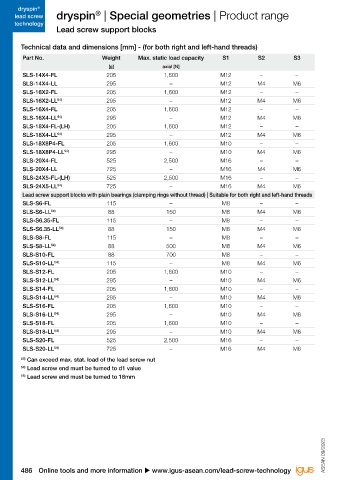

P. 488
dryspin dryspin
®
®
®
lead screw dryspin | Special geometries | Product range lead screw
technology technology
Lead screw support blocks
Technical data and dimensions [mm] - (for both right and left-hand threads)
Part No. Weight Max. static load capacity S1 S2 S3 A H E1 E2 E3 E5 E6 lt kt tk ts d1 ha
[g] axial [N]
SLS-14X4-FL 205 1,600 M12 – – 72 46 54 – – – – 36 8.6 15 9 14 23
SLS-14X4-LL 295 – M12 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9 14 23
SLS-16X2-FL 205 1,600 M12 – – 72 46 54 – – – – 36 8.6 15 9 16 23
SLS-16X2-LL 54) 295 – M12 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9 12 23
SLS-16X4-FL 205 1,600 M12 – – 72 46 54 – – – – 36 8.6 15 9 16 23
SLS-16X4-LL 54) 295 – M12 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9 12 23
SLS-18X4-FL-(LH) 205 1,600 M12 – – 72 46 54 – – – – 36 8.6 15 9.0 18 23
SLS-18X4-LL 54) 295 – M12 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9.0 18 23
SLS-18X8P4-FL 205 1,600 M10 – – 72 46 54 – – – – 36 8.6 15 9.0 18 23
SLS-18X8P4-LL 54) 295 – M10 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9.0 18 23
SLS-20X4-FL 525 2,500 M16 – – 94 64 70 – – – – 50 13 20 13.5 20 32
SLS-20X4-LL 725 – M16 M4 M6 94 64 70 27 22.5 40 20 50 13 20 13.5 20 32
SLS-24X5-FL-(LH) 525 2,500 M16 – – 94 64 70 – – – – 50 13 20 13.5 24 32
SLS-24X5-LL 54) 725 – M16 M4 M6 94 64 70 27 22.5 40 20 50 13 20 13.5 24 32
Lead screw support blocks with plain bearings (clamping rings without thread) | Suitable for both right and left-hand threads
SLS-S6-FL 115 – M8 – – 50 32 36 – – – – 30 6.5 11 6.6 6 16
SLS-S6-LL 54) 88 150 M8 M4 M6 50 32 36 27 6.5 40 20 30 6.5 11 6.6 6 16
SLS-S6.35-FL 115 – M8 – – 50 32 36 – – – – 30 6.5 11 6.6 6.35 16
SLS-S6.35-LL 54) 88 150 M8 M4 M6 50 32 36 27 6.5 40 20 30 6.5 11 6.6 6.35 16
SLS-S8-FL 115 – M8 – – 50 32 36 – – – – 30 6.5 11 6.6 8 16
SLS-S8-LL 54) 88 500 M8 M4 M6 50 32 36 27 6.5 40 20 30 6.5 11 6.6 8 16
SLS-S10-FL 88 700 M8 – – 50 32 36 – – – – 30 6.5 11 6.6 10 16
SLS-S10-LL 54) 115 – M8 M4 M6 50 32 36 27 6.5 40 20 30 6.5 11 6.6 10 16
SLS-S12-FL 205 1,600 M10 – – 72 46 54 – – – – 36 8.6 15 9.0 12 23
SLS-S12-LL 54) 295 – M10 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9.0 12 23
SLS-S14-FL 205 1,600 M10 – – 72 46 54 – – – – 36 8.6 15 9.0 14 23
SLS-S14-LL 54) 295 – M10 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9.0 14 23
SLS-S16-FL 205 1,600 M10 – – 72 46 54 – – – – 36 8.6 15 9.0 16 23
SLS-S16-LL 54) 295 – M10 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9.0 16 23
SLS-S18-FL 205 1,600 M10 – – 72 46 54 – – – – 36 8.6 15 9.0 18 23
SLS-S18-LL 54) 295 – M10 M4 M6 72 46 54 27 13.5 40 20 36 8.6 15 9.0 18 23
SLS-S20-FL 525 2,500 M16 – – 94 64 70 – – – – 50 13.0 20 13.5 20 32
SLS-S20-LL 54) 725 – M16 M4 M6 94 64 70 27 22.5 40 20 50 13.0 20 13.5 20 32
53) Can exceed max. stat. load of the lead screw nut
54) Lead screw end must be turned to d1 value
55) Lead screw end must be turned to 18mm
