lead screw dryspin | Special geometries | Product range lead screw
technology technology

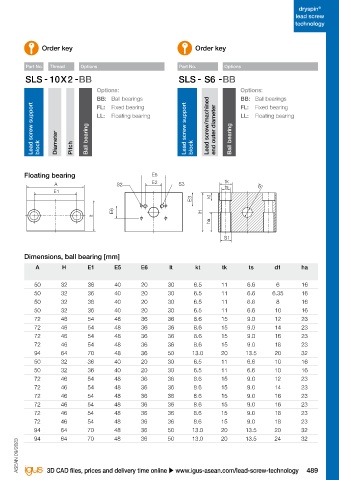

Lead screw support blocks with ball bearings

Order key Order key

Part No. Thread Options Part No. Options

Options: Options:
BB: Ball bearings BB: Ball bearings
Lead screw support Lead screw support end outer diameter
FL: Fixed bearing
FL: Fixed bearing
tk E5 LL: Floating bearing LL: Floating bearing
tk
E2
ts d1 S2 S3 ts d1 Lead screw/machined
kt Ball bearing E3 kt Ball bearing
u Page 625 block Diameter Pitch block
H E6 H
ha ha

Fixed bearing S1 Floating bearing S1 E5 E5
A tk tk d1 d1 A S2 S2 E2 E2 S3 S3 tk tk d1 d1
ts ts
ts
ts
E1 E1
kt kt kt kt
E3 E3
H H E6 E6 H H
lt lt
ha ha ha ha
S1 S1 S1
S1
A A A A
E1 E1 E1 E1
Technical data and dimensions, ball bearing [mm] Dimensions, ball bearing [mm]

Part No. Weight Max. static load capacity S1 S2 A H E1 E5 E6 lt kt tk ts d1 ha
[g] axial [N] lt lt lt lt
SLS-S6-BB 110 150 M8 M4 50 32 36 40 20 30 6.5 11 6.6 6 16
SLS-S6.35-BB 110 150 M8 M4 50 32 36 40 20 30 6.5 11 6.6 6.35 16
SLS-S8-BB 110 350 M8 M4 50 32 36 40 20 30 6.5 11 6.6 8 16
SLS-S10-BB 110 350 M8 M4 50 32 36 40 20 30 6.5 11 6.6 10 16
SLS-S12-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 12 23
SLS-S14-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 14 23
SLS-S16-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 16 23
SLS-S18-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 18 23
SLS-S20-BB 350 1,500 M16 M4 94 64 70 48 36 50 13.0 20 13.5 20 32
SLS-10X2-BB 110 350 M8 M4 50 32 36 40 20 30 6.5 11 6.6 10 16
SLS-10X3-BB 110 350 M8 M4 50 32 36 40 20 30 6.5 11 6.6 10 16
SLS-12X3-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 12 23
SLS-14X4-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 14 23
SLS-16X2-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 16 23
SLS-16X4-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 16 23
SLS-18X4-BB 265 1,000 M12 M4 72 46 54 48 36 36 8.6 15 9.0 18 23
SLS-18X8P4-BB 265 1,000 M10 M4 72 46 54 48 36 36 8.6 15 9.0 18 23
SLS-20X4-BB 350 1,500 M16 M4 94 64 70 48 36 50 13.0 20 13.5 20 32
SLS-24X5-BB 350 1,500 M16 M4 94 64 70 48 36 50 13.0 20 13.5 24 32
ASEAN 09/2023 ASEAN 09/2023
55) Lead screw end must be turned to 18mm
