dryspin
®
®
trapezoidal dryspin | Special geometries | Product range Notes
thread

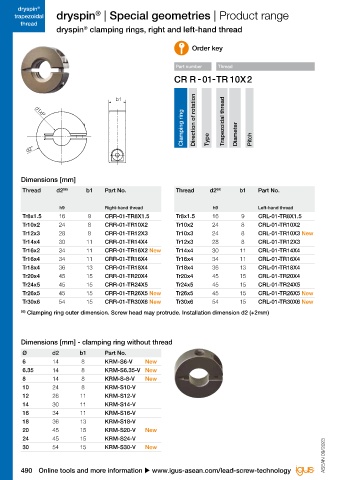

dryspin clamping rings, right and left-hand thread
®

Order key

Part number Thread

b1 d2*

Clamping ring Direction of rotation d1xP Trapezoidal thread Diameter
d1xP

d2* Type Pitch

Dimensions [mm]

Thread d2 56) b1 Part No. Thread d2 56) b1 Part No.
b1

h9 Right-hand thread h9 Left-hand thread
Tr8x1.5 16 9 CRR-01-TR8X1.5 Tr8x1.5 16 9 CRL-01-TR8X1.5
Tr10x2 24 8 CRR-01-TR10X2 Tr10x2 24 8 CRL-01-TR10X2
Tr12x3 28 8 CRR-01-TR12X3 Tr10x3 24 8 CRL-01-TR10X3 New
Tr14x4 30 11 CRR-01-TR14X4 Tr12x3 28 8 CRL-01-TR12X3
Tr16x2 34 11 CRR-01-TR16X2 New Tr14x4 30 11 CRL-01-TR14X4
Tr16x4 34 11 CRR-01-TR16X4 Tr16x4 34 11 CRL-01-TR16X4
Tr18x4 36 13 CRR-01-TR18X4 Tr18x4 36 13 CRL-01-TR18X4
Tr20x4 45 15 CRR-01-TR20X4 Tr20x4 45 15 CRL-01-TR20X4
Tr24x5 45 15 CRR-01-TR24X5 Tr24x5 45 15 CRL-01-TR24X5
Tr26x5 45 15 CRR-01-TR26X5 New Tr26x5 45 15 CRL-01-TR26X5 New
Tr30x6 54 15 CRR-01-TR30X6 New Tr30x6 54 15 CRL-01-TR30X6 New

56) Clamping ring outer dimension. Screw head may protrude. Installation dimension d2 (+2mm)

Dimensions [mm] - clamping ring without thread

Ø d2 b1 Part No.
6 14 8 KRM-S6-V New
6.35 14 8 KRM-S6.35-V New
8 14 8 KRM-S-8-V New
10 24 8 KRM-S10-V
12 28 11 KRM-S12-V
14 30 11 KRM-S14-V
16 34 11 KRM-S16-V
18 36 13 KRM-S18-V
20 45 15 KRM-S20-V New
24 45 15 KRM-S24-V
ASEAN 09/2023 ASEAN 09/2023
30 54 15 KRM-S30-V New
