dryspin
              ®
                                   ®

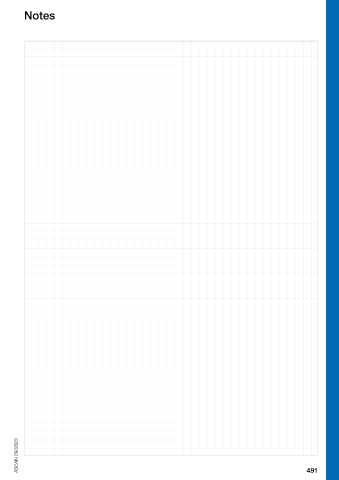

      trapezoidal    dryspin  | Special geometries | Product range                                                               Notes
        thread
                     dryspin  clamping rings, right and left-hand thread
                              ®

                                                                    Order key


                                                               Part number    Thread





                                          b1             d2*

                                                                 Clamping ring  Direction of rotation  d1xP  Trapezoidal thread  Diameter
             d1xP





           d2*                                                            Type           Pitch




        Dimensions [mm]

         Thread      d2 56)    b1     Part No.                 Thread      d2 56)    b1     Part No.
          b1

                      h9              Right-hand thread                     h9              Left-hand thread
         Tr8x1.5      16        9     CRR-01-TR8X1.5           Tr8x1.5      16        9     CRL-01-TR8X1.5
         Tr10x2       24        8     CRR-01-TR10X2            Tr10x2       24        8     CRL-01-TR10X2
         Tr12x3       28        8     CRR-01-TR12X3            Tr10x3       24        8     CRL-01-TR10X3 New
         Tr14x4       30       11     CRR-01-TR14X4            Tr12x3       28        8     CRL-01-TR12X3
         Tr16x2       34       11     CRR-01-TR16X2 New        Tr14x4       30       11     CRL-01-TR14X4
         Tr16x4       34       11     CRR-01-TR16X4            Tr16x4       34       11     CRL-01-TR16X4
         Tr18x4       36       13     CRR-01-TR18X4            Tr18x4       36       13     CRL-01-TR18X4
         Tr20x4       45       15     CRR-01-TR20X4            Tr20x4       45       15     CRL-01-TR20X4
         Tr24x5       45       15     CRR-01-TR24X5            Tr24x5       45       15     CRL-01-TR24X5
         Tr26x5       45       15     CRR-01-TR26X5 New        Tr26x5       45       15     CRL-01-TR26X5 New
         Tr30x6       54       15     CRR-01-TR30X6 New        Tr30x6       54       15     CRL-01-TR30X6 New

        56)  Clamping ring outer dimension. Screw head may protrude. Installation dimension d2 (+2mm)




        Dimensions [mm] - clamping ring without thread

         Ø         d2        b1       Part No.
         6         14         8       KRM-S6-V      New
         6.35      14         8       KRM-S6.35-V New
         8         14         8       KRM-S-8-V     New
         10        24         8       KRM-S10-V
         12        28        11       KRM-S12-V
         14        30        11       KRM-S14-V
         16        34        11       KRM-S16-V
         18        36        13       KRM-S18-V
         20        45        15       KRM-S20-V     New
         24        45        15       KRM-S24-V
                                                                                                                   ASEAN 09/2023  ASEAN 09/2023
         30        54        15       KRM-S30-V     New
