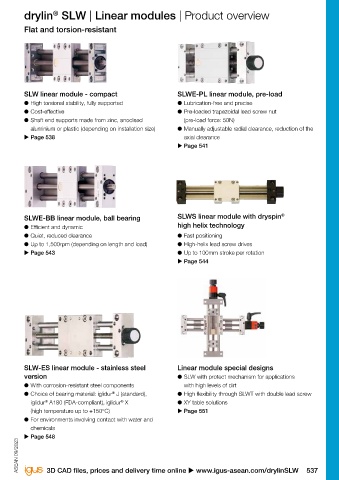

drylin SLW | Linear modules | Advantages drylin SLW | Linear modules | Product overview
®
®
Modular design Flat and torsion-resistant

Lubrication-free linear
Shaft end supports are
made from anodised ®
aluminium or from zinc modules - drylin SLW
die-casting
Torsion-resistant aluminium double shaft rails with
®
Lead screw mounted with many carriage versions characterise the drylin W SLW linear module - compact SLWE-PL linear module, pre-load
plain or ball bearings product range, and form a well rounded modular High torsional stability, fully supported Lubrication-free and precise
kit for the drylin SLW linear modules. The modules ● ●
®
®
drylin W are low profile, as well as robust. The drylin SLW ● Cost-effective ● Pre-loaded trapezoidal lead screw nut
®
(pre-load force: 50N)
Shaft end supports made from zinc, anodised
linear guide system linear modules are ideal for manual adjustments, ● aluminium or plastic (depending on installation size) Manually adjustable radial clearance, reduction of the
but can also be fitted with a motor to make an ●
axial clearance
Lubrication and maintenance- electrical linear actuator. u Page 538 u Page 541
free drylin lead screw nuts ● Variable carriage widths and lengths
®
®
● Flat drylin guide rails or
Mounting plates made high profile
from anodised aluminium ● Corrosion-resistant option made of stainless
steel available

Fully configured carriages Typical application areas
with four drylin W individual ● Format and lane adjustments
®
®
bearing housings with ● Packaging technology SLWE-BB linear module, ball bearing SLWS linear module with dryspin
lubrication-free drylin liners ● Height adjustments ● Efficient and dynamic high helix technology
®
● 3D printer ● Quiet, reduced clearance ● Fast positioning
Lead screw material: ● Camera adjustment ● Up to 1,500rpm (depending on length and load) ● High-helix lead screw drives
steel or stainless steel u Page 543 ● Up to 100mm stroke per rotation
u Page 544
Available in 3-8 days
Drive: Self-locking Detailed information about delivery time online.
trapezoidal thread or
fast adjust high helix thread Price breaks online
No minimum order value. No minimum order quantity
For manual adjustments,
large range of accessories Carriage lengths: 60-250mm
available u Page 613 Carriage widths: 54-195mm
Stroke lengths: up to 1,250mm

Configurable with Product finder
motor as a u www.igus-asean.com/slw-productfinder
ready-to-install SLW-ES linear module - stainless steel Linear module special designs
linear drive version ● SLW with protect mechanism for applications
● With corrosion-resistant steel components with high levels of dirt
®
● Choice of bearing material: iglidur J (standard), ● High flexibility through SLWT with double lead screw
iglidur A180 (FDA-compliant), iglidur X ● XY table solutions
®
®
(high temperature up to +150°C) u Page 551
● For environments involving contact with water and
chemicals
u Page 548
