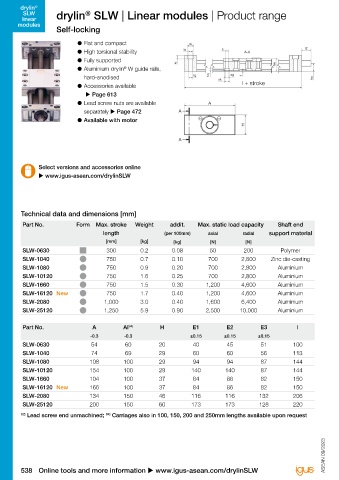

SLW drylin SLW | Linear modules | Product range drylin SLW | Linear modules | Product range SLW
linear linear
modules modules
Self-locking
● Flat and compact
● High torsional stability d2 Order key
● Fully supported T
®
● Aluminium drylin W guide rails, d Order example
hard-anodised
● Accessories available l + stroke lb lb
u Page 613
● Lead screw nuts are available
separately u Page 472
● Available with motor
Compact Dimension

Select versions and accessories online
u www.igus-asean.com/drylinSLW

Technical data and dimensions [mm]
Part No. Form Max. stroke Weight addit. Max. static load capacity Shaft end kt Øs sk sg kq d T l2 d2 ha
length (per 100mm) axial radial support material ±0.1 Standard
[mm] [kg] [kg] [N] [N]
SLW-0630 300 0.2 0.08 50 200 Polymer 6.0 4.5 7.0 M4 2.0 6 M8 15 M8 9.5
SLW-1040 750 0.7 0.10 700 2,800 Zinc die-casting 6.4 6.6 9.5 M6 4.4 10 Tr10x2 17 Tr10x2 92) 14.5
SLW-1080 750 0.9 0.20 700 2,800 Aluminium 6.4 6.6 9.5 M6 4.4 10 Tr10x2 17 Tr10x2 92) 14.5
SLW-10120 750 1.6 0.25 700 2,800 Aluminium M8 6.4 9.5 M6 4.4 10 Tr10x2 17 Tr10x2 92) 14.5
SLW-1660 750 1.5 0.30 1,200 4,600 Aluminium 8.6 9.0 11 M8 5.5 16 Tr14x4 20 Tr14x4 92) 18.5
SLW-16120 New 750 1.7 0.40 1,200 4,600 Aluminium 8.6 9.0 11 M8 5.5 16 Tr14x4 20 Tr14x4 92) 18.5
SLW-2080 1,000 3.0 0.40 1,600 6,400 Aluminium 8.6 9.0 14 M8 5.5 20 Tr18x4 26 12 h9 23.0
SLW-25120 1,250 5.9 0.90 2,500 10,000 Aluminium 12.6 11.0 15 M10 5.0 25 Tr24x5 38 14 h9 30.0

Part No. A AI 94) H E1 E2 E3 l hw f lt Ib tk ts tg
-0.3 -0.3 ±0.15 ±0.15 ±0.15
SLW-0630 54 60 20 40 45 51 100 18 1.2 20 8 9 7.0 –
SLW-1040 74 69 29 60 60 56 113 24 1.5 22 11 11 6.8 M8x10
SLW-1080 108 100 29 94 94 87 144 24 1.5 22 11 11 6.8 M8x10
SLW-10120 154 100 29 140 140 87 144 24 1.5 22 11 11 6.8 M8x10
SLW-1660 104 100 37 84 86 82 150 35 1.5 25 12.5 15 9.0 M10x20
SLW-16120 New 166 100 37 84 86 82 150 35 1.5 25 12.5 15 9.0 M10x20
SLW-2080 134 150 46 116 116 132 206 44 1.5 28 14 15 8.6 M10x15
SLW-25120 200 150 60 173 173 128 220 55 2.5 35 17.5 20 13.5 M16x30
92) Lead screw end unmachined; Carriages also in 100, 150, 200 and 250mm lengths available upon request
94)
