drylin
®
®

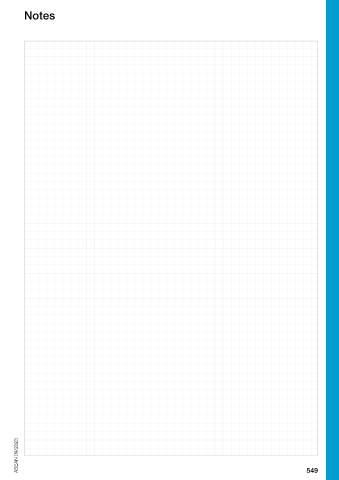

SLW drylin SLW | Linear modules | Product range Notes
linear
modules
Made of stainless steel
● Stainless steel version with
corrosion-resistant steel Order key
components (AISI 303, AISI 316
and (AISI 316Ti) Order example
● Choice of bearing material:
iglidur J = Standard
®
iglidur A180 = FDA-compliant
®
iglidur X = High temperature
®
up to +150°C 117) Stainless steel Bearing material
● Accessories available Compact Dimension
u Page 613

Select versions and accessories online
u www.igus-asean.com/drylinSLW T
d

l + stroke
Technical data

Part No. Shaft Ø Max. Weight additional Max. stat.
stroke length (per 100mm) load capacity
[mm] [mm] [kg] [kg] axial [N] radial [N]
SLW-ESJ-1040 10 750 1.4 0.2 700 2,800
SLW-ESX-1040 10 750 1.4 0.2 700 2,800
SLW-ESA180-1040 10 750 1.4 0.2 700 2,800
SLW-ESJ-2080 20 1,000 5.7 0.64 1,600 6,400
SLW-ESA180-2080 20 1,000 5.7 0.64 1,600 6,400

Dimensions [mm]

Part No. A AI H E1 E2 E3 l hw f lt Ib tk ts tg
-0.3 -0.3 ±0.15 ±0.15 ±0.15
SLW-ES-1040 74 100 29 60 60 87 144 24 1.5 22 11 11 6.8 M8x10
SLW-ES-2080 134 150 46 116 116 132 206 44 1.5 28 14 15 8.6 M10x15

Part No. kt Øs sk sg kq d T l2 d2 ha
±0.1 Standard
SLW-ES-1040 6.4 6.6 9.5 M6 4.4 10 Tr10x2 17 Tr10x2 92) 14.5
SLW-ES-2080 8.6 9.0 14 M8 5.5 20 Tr18x4 26 12 h9 23.0
92) Lead screw end unmachined
117) In the event of severe temperature fluctuations during transport, storage and use, thermal expansion effects
cannot be ruled out ASEAN 09/2023 ASEAN 09/2023
