ly + stroke in mm
right
l2
left
f
d2 Ø tk lx + stroke in mm l1
Ø ts
drylin d1 drylin
®
®
®
®

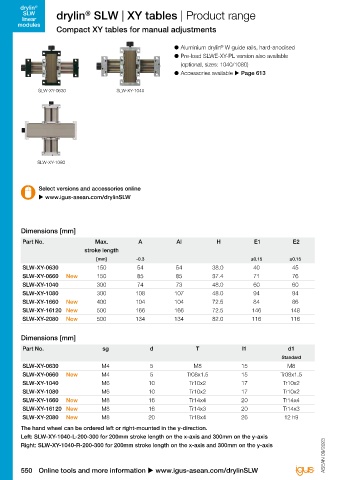

SLW drylin SLW | XY tables | Product range drylin SLW | XY tables | Product range w SLW
H
ha2
linear kt linear
modules f modules
Compact XY tables for manual adjustments A lt tg Al lt ha1
E1
®
● Aluminium drylin W guide rails, hard-anodised Order key
lb
● Pre-load SLWE-XY-PL version also available
d
(optional, sizes: 1040/1080) T sg Order example
E2
● Accessories available u Page 613
L R
SLW-XY-0630 SLW-XY-1040 E1 Options:
Preload
optional with sizes
1040 and 1080
Compact XY table Preload
x 90° Dimension
y
SLW-XY-1080 ly + stroke in mm ly + stroke in mm lx + stroke in mm lx + stroke in mm
left l2 left Ø tk l2 right Ø tk right
f f l1 l1
d2 Ø ts d2 Ø ts
d1 d1
H H w w
Select versions and accessories online ha2 kt ha2 kt
u www.igus-asean.com/drylinSLW
A lt A lt f ha1 f ha1
tg Al tg lt Al lt
E1 E1
lb lb
Dimensions [mm]
d d
sg
T
Part No. Max. A Al H E1 E2 Base length Base length f T sg lt Ib tk ts tg kt
E2
E2
stroke length
[mm] -0.3 ±0.15 ±0.15 L lx L ly R R
SLW-XY-0630 150 54 54 38.0 40 45 94 94 E1 1.5 20 E1 10.0 9 7.0 – 6.0
SLW-XY-0660 New 150 85 85 37.4 71 76 125 125 1.5 20 10.0 11 6.6 – 8.0
SLW-XY-1040 300 74 73 48.0 60 60 117 117 1.5 22 11.0 11 6.8 M8x10 6.4
SLW-XY-1080 300 108 107 48.0 94 94 151 151 1.5 22 11.0 11 6.8 M8x10 6.4
SLW-XY-1660 New 400 104 104 72.5 84 86 x 154 x 154 90° 1.5 25 90° 12.5 15 9.0 M10x20 8.6
SLW-XY-16120 New 500 166 166 72.5 146 148 216 216 1.5 25 12.5 15 9.0 M10x20 8.6
y y
SLW-XY-2080 New 500 134 134 82.0 116 116 190 190 1.5 28 14.0 15 8.6 M10x15 8.6

Dimensions [mm]

Part No. sg d T l1 d1 d1 l2 d2 d2 ha1 ha2 W
Standard Alternative Standard Alternative ha2-ha1
SLW-XY-0630 M4 5 M8 15 M8 – 15 M8 – 9.5 28.5 18.4
SLW-XY-0660 New M4 5 Tr08x1.5 15 Tr08x1.5 – 15 Tr08x1.5 – 9.5 28.0 18.5
SLW-XY-1040 M6 10 Tr10x2 17 Tr10x2 6 h9 17 Tr10x2 6 h9 14.5 33.5 19.0
SLW-XY-1080 M6 10 Tr10x2 17 Tr10x2 6 h9 17 Tr10x2 6 h9 14.5 33.5 19.0
SLW-XY-1660 New M8 16 Tr14x4 20 Tr14x4 8 h9 20 Tr14x4 8 h9 18.5 54.0 35.5
SLW-XY-16120 New M8 16 Tr14x3 20 Tr14x3 8 h9 20 Tr14x3 8 h9 18.5 54.0 35.5
SLW-XY-2080 New M8 20 Tr18x4 26 12 h9 – 26 12 h9 – 23.0 59.0 36.0
The hand wheel can be ordered left or right-mounted in the y-direction.
Left: SLW-XY-1040-L-200-300 for 200mm stroke length on the x-axis and 300mm on the y-axis
ASEAN 09/2023 ASEAN 09/2023
Right: SLW-XY-1040-R-200-300 for 200mm stroke length on the x-axis and 300mm on the y-axis

550 Online tools and more information u www.igus-asean.com/drylinSLW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinSLW 551
