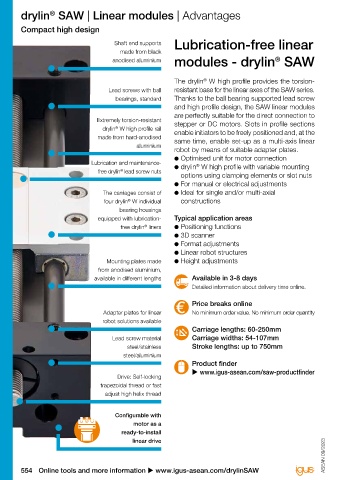

drylin SAW | Linear modules | Advantages drylin SAW | Linear modules | Product overview
®
®
Compact high design Ball bearings

Shaft end supports Lubrication-free linear
made from black
modules - drylin SAW
anodised aluminium ®

The drylin W high profile provides the torsion-
®
Lead screws with ball resistant base for the linear axes of the SAW series. SAW linear module SAWC linear module
bearings, standard Thanks to the ball bearing supported lead screw Robust high design in 4 sizes Compact short design
and high profile design, the SAW linear modules ● ● ®
are perfectly suitable for the direct connection to ● Drive: Trapezoidal or high helix lead screw ● With integrated drylin lead screw motor
Extremely torsion-resistant stepper or DC motors. Slots in profile sections ● For manual positioning or motorised operation ● Optimised ratio of useful length to total length
drylin W high profile rail enable initiators to be freely positioned and, at the u Page 556 u Page 558
®
made from hard-anodised same time, enable set-up as a multi-axis linear
aluminium
robot by means of suitable adapter plates.
● Optimised unit for motor connection
Lubrication and maintenance- drylin W high profile with variable mounting
®
free drylin lead screw nuts ●
®
options using clamping elements or slot nuts
● For manual or electrical adjustments
The carriages consist of ● Ideal for single and/or multi-axial
four drylin W individual constructions
®
bearing housings
equipped with lubrication- Typical application areas
free drylin liners ● Positioning functions
®
● 3D scanner
● Format adjustments
● Linear robot structures
Mounting plates made ● Height adjustments
from anodised aluminium,
available in different lengths Available in 3-8 days
Detailed information about delivery time online.

Price breaks online
Adapter plates for linear No minimum order value. No minimum order quantity
robot solutions available
Carriage lengths: 60-250mm
Lead screw material Carriage widths: 54-107mm
steel/stainless Stroke lengths: up to 750mm
steel/aluminium
Product finder
u www.igus-asean.com/saw-productfinder
Drive: Self-locking
trapezoidal thread or fast
adjust high helix thread

Configurable with
motor as a
ready-to-install
linear drive
ASEAN 09/2023 ASEAN 09/2023

554 Online tools and more information u www.igus-asean.com/drylinSAW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinSAW 555
