drylin drylin SAWC | Linear modules | Product range
®
SAW
Direct drive in short design tk
ts
hw
● Smaller installation space and more
hm kt
H
stroke kq
ha
● Compact short design due to the use sg f tg
of drylin lead screw motors sk
®
A
● Optimised ratio of useful length to l + Hub
total length (compared to the SAW
Al
series, up to 70mm) E3 lt
● Improved operating characteristics
● Space-saving and lightweight d
E2 t E1

Ic + stroke
lc + Hub
tk tk
ts ts
hw hw
hm hm kt kt
H H kq kq
ha ha
sg f sg f tg tg
A A sk sk
l + Hub
I + stroke l + Hub
Al
Al
Technical data E3 E3 lt lt
Part No. Max. stroke length Weight Additional Max. rotational speed Max. static load capacity
d d
[mm] [kg] (per 100mm) [rpm] axial [N] radial [N]
E2 t E2 t E1 E1
SAWC-0630 300 0.5 0.1 1,000 100 200
SAWC-1040 500 1.0 0.1 1,500 500 2,000
lc + Hub lc + Hub

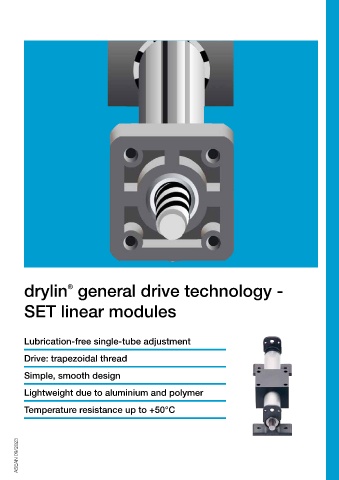

drylin general drive technology -
®

SET linear modules
Dimensions [mm]
Part No. A AI H E1 E2 E3 l lc hw f lt Ib
-0.3 -0.3 +0.15 +0.15 +0.15
SAWC-0630 54 60/100 42.5 40 45 51 139 75 30 13.5 15 7.5 Lubrication-free single-tube adjustment
SAWC-1040 74 69/100/150 50.0 60 60 56 183 82 45 22.5 19 9.5
Drive: trapezoidal thread
Part No. tk ts tg kt sk sg kq d T ha
±0.1 Ø
Tr08x1.5 Simple, smooth design
SAWC-0630 8 4.2 M5x12 20 7 M4 2 5 21.5
Ds08x15
Tr10x2 92) Lightweight due to aluminium and polymer
SAWC-1040 11 6.8 M6x20 6.4 9.5 M6 3.5 10 35.5
Ds10x12
Temperature resistance up to +50°C
92) Lead screw end unmachined

ASEAN 09/2023 ASEAN 09/2023

558 Online tools and more information u www.igus-asean.com/drylinSAWC
