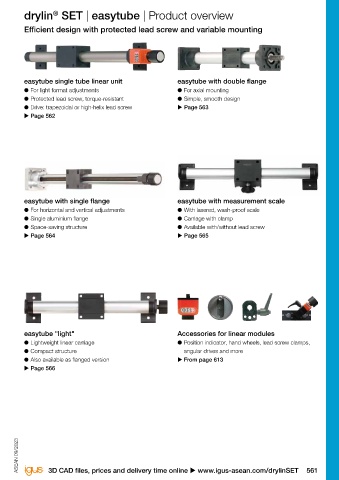

drylin SET | easytube | Advantages drylin SET | easytube | Product overview
®
®
Single-tube adjustment Efficient design with protected lead screw and variable mounting

Shaft end supports made from Lubrication-free linear
robust plastic, also available
unit "easytube"
as a flanged version

The linear unit for easy adjustment functions is easytube single tube linear unit easytube with double flange
characterised by a simple but effective and solid ● For light format adjustments ● For axial mounting
Guide tube made from design. A complete system is built up from few
anodised aluminium ● Protected lead screw, torque-resistant ● Simple, smooth design
components. The outer anodised aluminium ● Drive: trapezoidal or high-helix lead screw u Page 563
tube guides the carriage/s and at the same time u Page 562
protects the trapezoidal lead screw and lead
Carriages, trapezoidal lead screw screw nut from external influences. Carriage,
nuts and torque support made torque support and trapezoidal lead screw nut
from lubrication-free plain bearing are in one component and are made from a
polymers
special plain bearing high-performance polymer.
This guarantees freedom from lubrication with
simultaneously low coefficient of friction and
optimal wear rates. The iglidur bearing materials
®
are also used in the thrust bearings of the lead
screw. easytube with single flange easytube with measurement scale
● Protected lead screw ● For horizontal and vertical adjustments ● With lasered, wash-proof scale
Trapezoidal lead screw (inside) Effective design
made from steel or stainless steel ● ● Single aluminium flange ● Carriage with clamp
● Available with measurement scale without ● Space-saving structure ● Available with/without lead screw
lead screw u Page 564 u Page 565
● Flanged version for axial mounting in surfaces
and profiles
Guide tube also available
with measurement scale
Typical application areas
● Sensor and camera positioning
● Format adjustment

Stainless steel clamping rings,
radial and axial bearings made from Available in 3-8 days
plain bearing polymers Detailed information about delivery time online.

Price breaks online easytube "light" Accessories for linear modules
No minimum order value. No minimum order quantity ● Lightweight linear carriage ● Position indicator, hand wheels, lead screw clamps,
● Compact structure angular drives and more
Carriage lengths: 30-55mm ● Also available as flanged version u From page 613
Stroke lengths: up to 850mm u Page 566

Product finder
u www.igus-asean.com/set-productfinder
Extensive accessories
u Page 613
