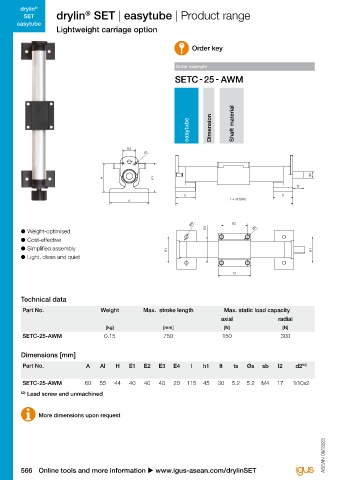

Page 568 - IGUS Linear

drylin
®
®
SET drylin SET | easytube | Product range
easytube
Lightweight carriage option

Order key

Order example

easytube Dimension Shaft material

E4 E4
sb sb
E4
sb

H H h1 h1 d2 d2
l2
H h1 l2 d2
lt lt lt lt l2
A A I + stroke l + Hub
l + Hub
lt lt
A
Øts Øts E3 E2 l + Hub E2 Øs Øs
Øts E3 E2
● Weight-optimised E3 Øs
● Cost-effective E1 E1 E1 E1
● Simplified assembly E1 E1
● Light, clean and quiet
Al Al

Al
drylin general drive technology -
®
Technical data
Part No. Weight Max. stroke length Max. static load capacity SLT linear modules
axial radial
[kg] [mm] [N] [N]
SETC-25-AWM 0.15 750 150 300
Based on lubrication-free drylin T
®
Dimensions [mm] miniature guide
Part No. A AI H E1 E2 E3 E4 I h1 lt ts Øs sb l2 d2 92)
Drive: Trapezoidal or high helix lead screw

SETC-25-AWM 60 55 44 40 40 40 20 115 45 30 5.2 5.2 M4 17 Tr10x2
Low-profile and compact design
92) Lead screw end unmachined
Carriages with individual clearance adjustment
More dimensions upon request
Variable lead screw options

ASEAN 09/2023 ASEAN 09/2023

566 Online tools and more information u www.igus-asean.com/drylinSET
