drylin drylin
®
®
®
®
SET drylin SET | easytube | Product range drylin SET | easytube | Product range SET
easytube easytube

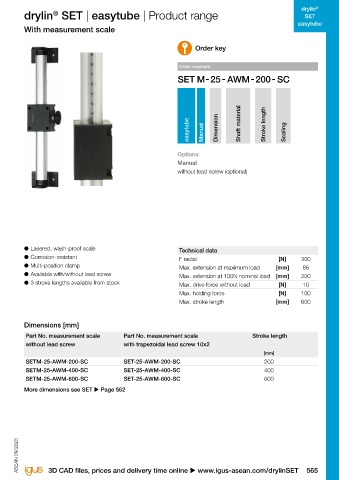

Pre-loaded on one side With measurement scale
Order key Order key

Order example Order example

easytube Dimension Shaft material easytube Manual Dimension Shaft material Stroke length Scaling

A1 Options:
V
Al E3 Manual
Ød3 h
Ød2 without lead screw (optional)
SW
l2
L1 I + stroke
l + Hub
Øs2
E1

E2

Øs1

● Horizontal and vertical installation at one end ● Lasered, wash-proof scale Technical data
● Ideal for the positioning of sensors and cameras in ● Corrosion-resistant F radial [N] 300
format adjustments ● Multi-position clamp Max. extension at maximum load [mm] 66

● Easy assembly ● Available with/without lead screw Max. extension at 100N nominal load [mm] 200
● Flexible installation ● 3 stroke lengths available from stock Max. drive force without load [N] 10
● Space-saving Max. holding force [N] 100
● Protected lead screw Max. stroke length [mm] 600

Technical data Dimensions [mm]

Part No. Max. stroke length Max. static load capacity Part No. measurement scale Part No. measurement scale Stroke length
axial radial 128) without lead screw with trapezoidal lead screw 10x2
[mm] [N] [N] [mm]
SETB-25-AWM 300 150 12.5 SETM-25-AWM-200-SC SET-25-AWM-200-SC 200
SETM-25-AWM-400-SC SET-25-AWM-400-SC 400
SETM-25-AWM-600-SC SET-25-AWM-600-SC 600
Dimensions [mm]
More dimensions see SET u Page 562
Part No. A1 Al h E1 E2 E3 V L1 l2 d2 92) d3 l s1 s2 SW

SETB-25-AWM 60 55 39 40 40 42 16 45 17 Tr10x2 42 130 5.2 6.6 5
92) Lead screw end unmachined
More dimensions upon request
128) The supporting torque at the clamping flange must not exceed 10Nm
ASEAN 09/2023 ASEAN 09/2023

564 Online tools and more information u www.igus-asean.com/drylinSET 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinSET 565
