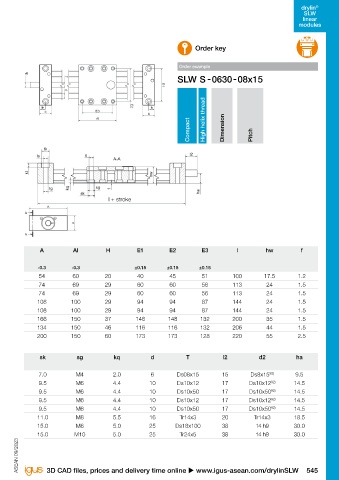

drylin drylin
®
®
®
SLW drylin SLW | Linear modules | Product range SLW
linear linear
modules modules
Compact with dryspin high helix thread
®
● High torsional stability Order key
● Aluminium drylin W guide rails, hard-anodised
®
● BB version with ball bearing supported lead screw Order example
available d2
● Accessories available u Page 613
● Lead screw nuts are available separately
u Page 470
lb lb

Compact High helix thread Dimension Pitch

Select versions and accessories online
u www.igus-asean.com/drylinSLW

The complete overview of the available lead
screw sizes can be found on u Page 510

l + stroke

Technical data and dimensions [mm]
Part No. Design 96) Max. Weight addit. Max. static load capacity A AI H E1 E2 E3 l hw f
stroke length (per 100mm) axial radial
[kg] [kg] [N] [N] -0.3 -0.3 ±0.15 ±0.15 ±0.15
SLWS-0630-08x15 300 0.2 0.08 50 200 54 60 20 40 45 51 100 17.5 1.2
SLWS-1040-10x12 750 0.7 0.10 100 400 74 69 29 60 60 56 113 24 1.5
SLWS-1040-10x50 750 0.7 0.10 100 400 74 69 29 60 60 56 113 24 1.5
SLWS-1080-10x12 750 0.9 0.20 100 400 108 100 29 94 94 87 144 24 1.5
SLWS-1080-10x50 750 0.9 0.20 100 400 108 100 29 94 94 87 144 24 1.5
SLWS-16120 New 750 1.5 0.30 250 1,000 166 150 37 146 148 132 200 35 1.5
SLWS-2080-18x100 750 0.9 0.20 400 1,600 134 150 46 116 116 132 206 44 1.5
SLWS-25120 New 1,250 5.9 0.90 1,000 4,000 200 150 60 173 173 128 220 55 2.5

Part No. lt Ib tk ts tg kt Øs sk sg kq d T l2 d2 ha
±0.1
SLWS-0630-08x15 20 10.0 9 7.0 – 6.0 4.5 7.0 M4 2.0 6 Ds08x15 15 Ds8x15 92) 9.5
SLWS-1040-10x12 22 11.0 11 6.8 M8x12 6.4 6.6 9.5 M6 4.4 10 Ds10x12 17 Ds10x12 92) 14.5
SLWS-1040-10x50 22 11.0 11 6.8 M8x10 6.4 6.6 9.5 M6 4.4 10 Ds10x50 17 Ds10x50 92) 14.5
SLWS-1080-10x12 22 11.0 11 6.8 M8x10 6.4 6.6 9.5 M6 4.4 10 Ds10x12 17 Ds10x12 92) 14.5
SLWS-1080-10x50 22 11.0 11 6.8 M8x10 6.4 6.6 9.5 M6 4.4 10 Ds10x50 17 Ds10x50 92) 14.5
SLWS-16120 New 25 12.5 15 9.0 M10x20 8.6 9.0 11.0 M8 5.5 16 Tr14x3 20 Tr14x3 18.5
SLWS-2080-18x100 28 14.0 15 8.6 M10x15 12.6 11.0 15.0 M8 5.0 25 Ds18x100 38 14 h9 30.0
SLWS-25120 New 49 17.5 20 13.5 M16x30 12.6 11.0 15.0 M10 5.0 25 Tr24x5 38 14 h9 30.0
ASEAN 09/2023 ASEAN 09/2023
92) Lead screw end unmachined 96) Double rails, square u Page 78, round u Page 84
