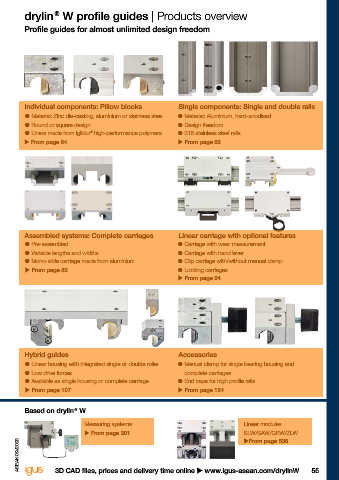

drylin W profile guides | Advantages drylin W profile guides | Products overview
®
®
Lubrication-free, light, quiet, long service life, cost-effective Profile guides for almost unlimited design freedom

Superior operating properties Lubrication-free linear
by combining iglidur bearing
®
®
elements and anodised rails with system - drylin W
round shaft profiles
drylin W profile guides are a cost-effective pre-
®
assembled system. The design allows extremely
high flexibility in the construction and installation
Corrosion-resistant with due to the use of individual or double rails. Hard- Individual components: Pillow blocks Single components: Single and double rails
hard-anodised running surface ● Material: Zinc die-casting, aluminium or stainless steel ● Material: Aluminium, hard-anodised
anodised aluminium is used as rail material and
provides the best friction and wear results. The ● Round or square design ® ● Design freedom
absence of lubrication makes the profile guide ● Liners made from iglidur high-performance polymers ● 316 stainless steel rails
system extremely insensitive to dirt and, due to u From page 64 u From page 62
Quiet operation
its cleanliness, it is also suitable for applications
in clean and hygienic environments.
● Easy installation, maintenance-free
● Resistant to dirt thanks to dry operation
Clean as no Lightweight and quiet
lubrication required ●
● Square rail with floating bearing function for
90° installation
● Bearing with manual clearance adjustment
Lightweight due to available
the use of plastics
and aluminium Assembled systems: Complete carriages Linear carriage with optional features
Typical application areas ● Pre-assembled ● Carriage with wear measurement
● Agricultural machinery ● Variable lengths and widths ● Carriage with hand lever
● Automotive ● Mono-slide carriage made from aluminium ● Clip carriage with/without manual clamp
● Medical technology
Smooth operation with sliding Packaging industry u From page 82 ● Locking carriages
elementsmade from ● Furniture u From page 94
lubrication-free iglidur ●
®
high-performance polymers
Available from stock
Detailed information about delivery time online.
Maintenance-free due to
integrated lubricants
Price breaks online
No minimum order value. No minimum order quantity

Max. +200°C Hybrid guides Accessories
Min. -40°C
● Linear housing with integrated single or double roller ● Manual clamp for single bearing housing and
Profiles with various Carriage lengths: 60-250mm ● Low drive forces complete carriages
geometric designs, installation Carriage widths: 54-195mm ● Available as single housing or complete carriage ● End caps for high profile rails
sizes and clearances u From page 107 u From page 124
Rail length: up to 4,000mm

Service life calculation Based on drylin W
®
u www.igus-asean.com/drylin-expert
Measuring systems Linear modules
u From page 301 SLW/SAW/GRW/ZLW
uFrom page 538
ASEAN 09/2023 ASEAN 09/2023

54 Online tools and more information u www.igus-asean.com/drylinW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW 55
