drylin W drylin W
®
®
®
®
profile drylin W profile guides | Product range drylin W profile guides | Product range profile
guides guides

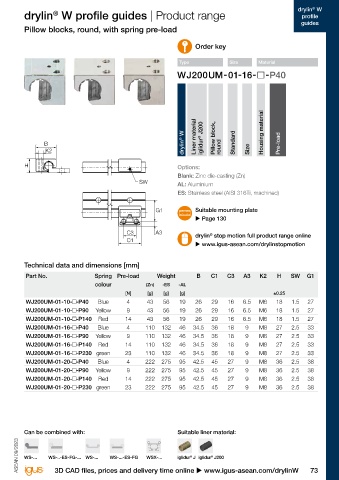

Pillow blocks, round, adjustable bearing clearance Pillow blocks, round, with spring pre-load
Order key Order key

Type Size Type Size Material

drylin ® W Standard B drylin ® W Standard Pre-load
B Liner material iglidur ® J200 Pillow block, Adjustable Liner material iglidur ® J200 Pillow block, Housing material
K2 round Size K2 round Size

H H Options:

Blank: Zinc die-casting (Zn)
SW SW
Allen key supplied AL: Aluminium
ES: Stainless steel (AISI 316Ti, machined)

G1 Suitable mounting plate G1 Suitable mounting plate
u Page 130 u Page 130

C3 A3 C3 A3
®
C1 drylin stop motion full product range online
C1
u www.igus-asean.com/drylinstopmotion

Technical data and dimensions [mm] Technical data and dimensions [mm]

Part No. Weight B C1 C3 A3 K2 H SW G1 Static load capacity Part No. Spring Pre-load Weight B C1 C3 A3 K2 H SW G1
Coy Coz+ Coz– colour (Zn) -ES -AL
[g] ±0.25 [N] [N] [N] [N] [g] [g] [g] ±0.25
WJUME-01-10 43 26 29 16 6.5 M6 18 1.5 27 560 560 250 WJ200UM-01-10- -P40 Blue 4 43 56 19 26 29 16 6.5 M6 18 1.5 27
WXUME-01-10 43 26 29 16 6.5 M6 18 1.5 27 560 560 250 WJ200UM-01-10- -P90 Yellow 9 43 56 19 26 29 16 6.5 M6 18 1.5 27
WJUME-01-10-AL 19 26 29 16 6.5 M6 18 1.5 27 560 560 250 WJ200UM-01-10- -P140 Red 14 43 56 19 26 29 16 6.5 M6 18 1.5 27
WJUME-01-10-ES 56 26 29 16 6.5 M6 18 1.5 27 560 560 250 WJ200UM-01-16- -P40 Blue 4 110 132 46 34.5 36 18 9 M8 27 2.5 33
WJ200UME-01-10 43 26 29 16 6.5 M6 18 1.5 27 560 560 250 WJ200UM-01-16- -P90 Yellow 9 110 132 46 34.5 36 18 9 M8 27 2.5 33
WJ200UME-01-16 110 34.5 36 18 9 M8 27 2.5 33 980 980 400 WJ200UM-01-16- -P140 Red 14 110 132 46 34.5 36 18 9 M8 27 2.5 33
WJ200UME-01-16-AL 45 34.5 36 18 9 M8 27 2.5 33 980 980 400 WJ200UM-01-16- -P230 green 23 110 132 46 34.5 36 18 9 M8 27 2.5 33
WJ200UME-01-16-ES 132 34.5 36 18 9 M8 27 2.5 33 980 980 400 WJ200UM-01-20- -P40 Blue 4 222 275 95 42.5 45 27 9 M8 36 2.5 38
WJ200UME-01-20 222 42.5 45 27 9 M8 36 2.5 38 1,500 1,500 500 WJ200UM-01-20- -P90 Yellow 9 222 275 95 42.5 45 27 9 M8 36 2.5 38
WJ200UME-01-20-AL 95 42.5 45 27 9 M8 36 2.5 38 1,500 1,500 500 WJ200UM-01-20- -P140 Red 14 222 275 95 42.5 45 27 9 M8 36 2.5 38
WJ200UME-01-20-ES 275 42.5 45 27 9 M8 36 2.5 38 1,500 1,500 500 WJ200UM-01-20- -P230 green 23 222 275 95 42.5 45 27 9 M8 36 2.5 38
WJ200UME-01-25 431 52.5 58 36 11 M10 45 2.5 46.5 2,250 2,250 950
WJ200UME-01-25-AL 194 52.5 58 36 11 M10 45 2.5 46.5 2,250 2,250 950
WJ200UME-01-25-ES 539 52.5 58 36 11 M10 45 2.5 46.5 2,250 2,250 950

Can be combined with: Suitable liner material: Can be combined with: Suitable liner material:
ASEAN 09/2023 ASEAN 09/2023

WS-... WS-..-ES-FG-... WS-... WS-...-ES-FG WSX-... iglidur J iglidur J200 WS-... WS-..-ES-FG-... WS-... WS-...-ES-FG WSX-... iglidur J iglidur J200
®
®
®
®
72 Online tools and more information u www.igus-asean.com/drylinW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW 73
