drylin W drylin W
®
®
®
®
profile drylin W profile guides | Product range New drylin W profile guides | Product range New profile
guides guides

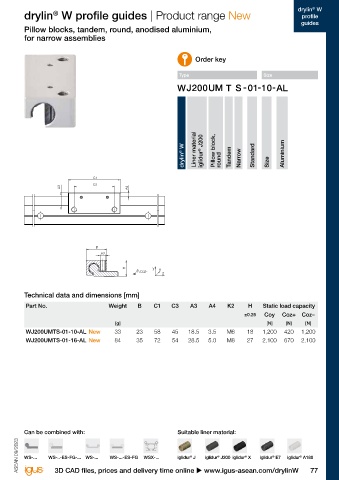

Pillow blocks, round, anodised aluminium, Pillow blocks, tandem, round, anodised aluminium,
for narrow assemblies for narrow assemblies

Order key
Order key

Type Size
Type Size

drylin ® W Liner material iglidur ® J200 Pillow block, round Narrow Standard Size Aluminium drylin ® W Liner material iglidur ® J200 Pillow block, round Tandem Narrow Standard Size Aluminium

C1 C1
A3 C3 A4 C3
A3 A4

B
B
K2
K2
H y x
! Coz- z H y x
! Coz- z

Technical data and dimensions [mm] Technical data and dimensions [mm]
Part No. Weight B C1 C3 A3 A4 K2 H Static load capacity Part No. Weight B C1 C3 A3 A4 K2 H Static load capacity
±0.25 Coy Coz+ Coz– ±0.25 Coy Coz+ Coz–
[g] [N] [N] [N] [g] [N] [N] [N]
WJ200UMS-01-10-AL New 16.0 23 29 16 18.5 3.5 M6 18 600 250 600 WJ200UMTS-01-10-AL New 33 23 58 45 18.5 3.5 M6 18 1,200 420 1,200
WJ200UMS-01-16-AL New 40.5 35 36 18 28.5 5.0 M8 27 1,050 400 1,050 WJ200UMTS-01-16-AL New 84 35 72 54 28.5 5.0 M8 27 2,100 670 2,100
WJ200UMS-01-20-AL New 85.0 42 45 27 35.0 6.5 M8 36 1,600 500 1,600
WJ200UMS-01-25-AL New 172.6 52 58 36 43.0 7.5 M10 45 2,400 950 2,400

Can be combined with: Can be combined with: Suitable liner material:
ASEAN 09/2023 ASEAN 09/2023

WS-... WS-..-ES-FG-... WS-... WS-...-ES-FG WSX-... WS-... WS-..-ES-FG-... WS-... WS-...-ES-FG WSX-... iglidur J iglidur J200 iglidur X iglidur E7 iglidur A180
®
®
®
®
®
76 Online tools and more information u www.igus-asean.com/drylinW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW 77
