drylin W drylin W
®
®
®
®
profile drylin W profile guides | Product range drylin W profile guides | Product range profile
guides guides

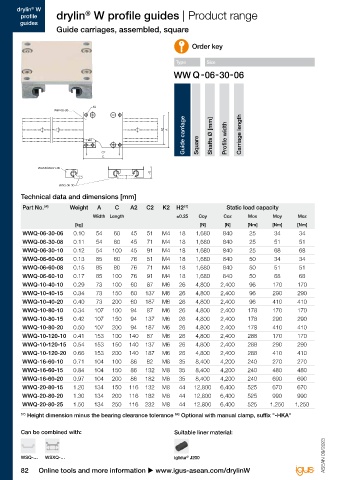

Guide carriages, assembled, square Mono-slide carriages, anodised aluminium
Order key Order key

Type Size Type Size

K2

K2
WW-06-30-...
K2
WW-06-30-...
K2
Guide carriage Shafts Ø [mm] Profile width Carriage length C2 Mono-slide guide carriage Shafts Ø [mm] Profile width Carriage length
A2 A A2 A
A2 A

C2
C Square C
C2 A2 A
C
WJ200QM-01-06
H2 C2 H2
WJ200QM-01-06 C
H2
WSQ-06-30
Technical data and dimensions [mm] Technical data and dimensions [mm]
WSQ-06-30
54)
Part No. Weight A C A2 C2 K2 H2 57) Static load capacity Part No. Weight H2 A C A2 C2 K2 H2 57) Static load capacity
Width Length ±0.25 Coy Coz Mox Moy Moz Width Length ±0.2 Coy Coz Mox Moy Moz
[kg] [N] [N] [Nm] [Nm] [Nm] [kg] [N] [N] [Nm] [Nm] [Nm]
WWQ-06-30-06 0.10 54 60 45 51 M4 18 1,680 840 25 34 34 WWC-06-30-06 0.07 54 60 45 51 M4 16 1,680 840 25 34 34
WWQ-06-30-08 0.11 54 80 45 71 M4 18 1,680 840 25 51 51 WWC-06-30-08 0.09 54 80 45 71 M4 16 1,680 840 25 51 51
WWQ-06-30-10 0.12 54 100 45 91 M4 18 1,680 840 25 68 68 WWC-06-30-10 0.12 54 100 45 91 M4 16 1,680 840 25 68 68
WWQ-06-60-06 0.13 85 60 76 51 M4 18 1,680 840 50 34 34 WWC-06-60-06 New 0.09 85 60 76 51 M4 16 1,680 840 50 34 34
WWQ-06-60-08 0.15 85 80 76 71 M4 18 1,680 840 50 51 51 WWC-06-60-08 New 0.12 85 80 76 71 M4 16 1,680 840 50 51 51
WWQ-06-60-10 0.17 85 100 76 91 M4 18 1,680 840 50 68 68 WWC-06-60-10 New 0.15 85 100 76 91 M4 16 1,680 840 50 68 68
WWQ-10-40-10 0.29 73 100 60 87 M6 26 4,800 2,400 96 170 170 WWC-10-40-10 0.21 73 100 60 87 M6 22 4,800 2,400 96 170 170
WWQ-10-40-15 0.34 73 150 60 137 M6 26 4,800 2,400 96 290 290 WWC-10-40-15 0.32 73 150 60 137 M6 22 4,800 2,400 96 290 290
WWQ-10-40-20 0.40 73 200 60 187 M6 26 4,800 2,400 96 410 410 WWC-10-40-20 0.42 73 200 60 187 M6 22 4,800 2,400 96 410 410
WWQ-10-80-10 0.34 107 100 94 87 M6 26 4,800 2,400 178 170 170 WWC-10-80-10 0.28 107 100 94 87 M6 22 4,800 2,400 178 170 170
WWQ-10-80-15 0.42 107 150 94 137 M6 26 4,800 2,400 178 290 290 WWC-10-80-15 0.42 107 150 94 137 M6 22 4,800 2,400 178 290 290
WWQ-10-80-20 0.50 107 200 94 187 M6 26 4,800 2,400 178 410 410 WWC-10-80-20 0.56 107 200 94 187 M6 22 4,800 2,400 178 410 410
WWQ-10-120-10 0.41 153 100 140 87 M6 26 4,800 2,400 288 170 170 WWC-10-120-10 0.36 153 100 140 87 M6 22 4,800 2,400 288 170 170
WWQ-10-120-15 0.54 153 150 140 137 M6 26 4,800 2,400 288 290 290 WWC-10-120-15 0.54 153 150 140 137 M6 22 4,800 2,400 288 290 290
WWQ-10-120-20 0.66 153 200 140 187 M6 26 4,800 2,400 288 410 410 WWC-10-120-20 0.72 153 200 140 187 M6 22 4,800 2,400 288 410 410
WWQ-16-60-10 0.71 104 100 86 82 M8 35 8,400 4,200 240 270 270 WWC-16-60-10 0.41 104 100 86 82 M8 30 8,400 4,200 240 270 270
WWQ-16-60-15 0.84 104 150 86 132 M8 35 8,400 4,200 240 480 480 WWC-16-60-15 0.61 104 150 86 132 M8 30 8,400 4,200 240 480 480
WWQ-16-60-20 0.97 104 200 86 182 M8 35 8,400 4,200 240 690 690 WWC-16-60-20 0.80 104 200 86 182 M8 30 8,400 4,200 240 690 690
WWQ-20-80-15 1.20 134 150 116 132 M8 44 12,800 6,400 525 670 670 WWC-20-80-15 0.99 134 150 116 132 M8 40 12,800 6,400 525 670 670
WWQ-20-80-20 1.30 134 200 116 182 M8 44 12,800 6,400 525 990 990 WWC-20-80-20 1.33 134 200 116 182 M8 40 12,800 6,400 525 990 990
WWQ-20-80-25 1.50 134 250 116 232 M8 44 12,800 6,400 525 1,250 1,250 WWC-20-80-25 1.66 134 250 116 232 M8 40 12,800 6,400 525 1,250 1,250
57) Height dimension minus the bearing clearance tolerance Optional with manual clamp, suffix "-HKA" 57) Height dimension minus the bearing clearance tolerance
64)

Can be combined with: Suitable liner material: Can be combined with: Suitable liner material:
ASEAN 09/2023 ASEAN 09/2023

WSQ-… WSXQ-… iglidur J200 WSQ-… WSXQ-… iglidur J
®
®
82 Online tools and more information u www.igus-asean.com/drylinW 3D CAD files, prices and delivery time online u www.igus-asean.com/drylinW 83
